Power HD

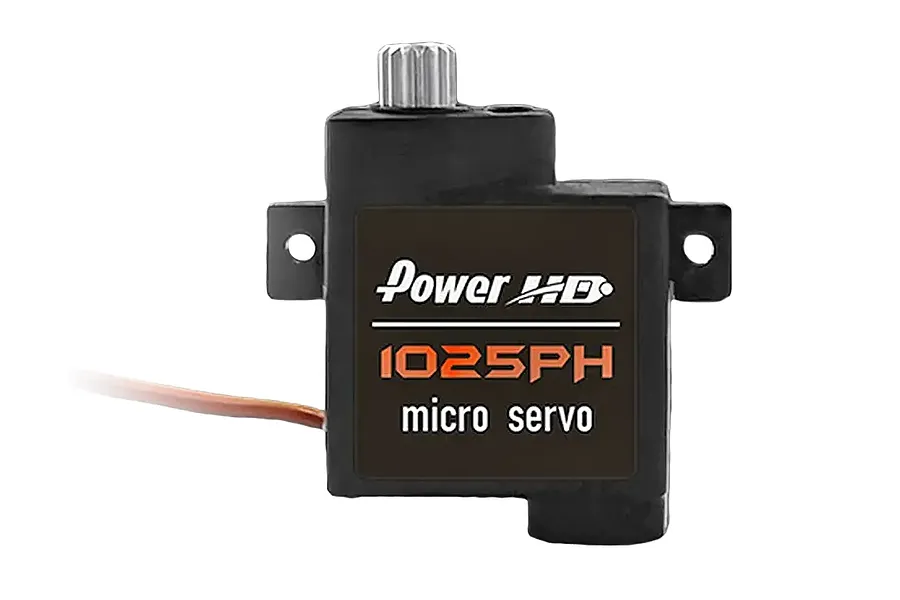

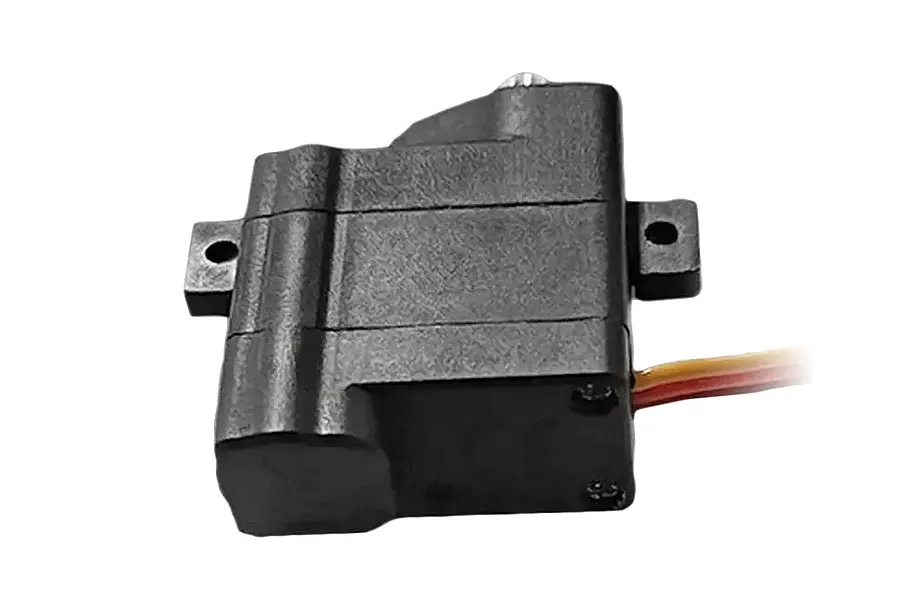

Power HD 1025PH Micro 1.5kg 6V Brushed Metal Geared Servo

  • Brushed

Part no. 1025PH

3+ in stockWrite a review
1 / 2
1 / 2

$44.99

or 4 fortnightly payments of $11.25 with afterpay

Get big control in a tiny package with the Power HD 1025PH micro servo, delivering an impressive 1.5kg of torque in a 4.8g frame.

  • Fast 0.07s response time at 6V
  • Durable metal gears in a 4.8g package
  • 1.5kg·cm of torque for strong control
  • Single ball bearing for smooth operation
  • Versatile fit for micro cars & helis

Pay later with afterpay zip PayPal

  • 3+ in stock · Ships Monday · order by Monday

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Overview

Don't let its size fool you; the Power HD 1025PH delivers big performance in a micro package. Weighing only 4.8 grams, this servo packs a punch with 1.5kg·cm of torque and a swift 0.07s response speed at 6V. Featuring durable metal gears and a smooth ball bearing, it offers both strength and precision. It's the perfect high-performance steering or control surface solution for 1:24 scale cars, micro helicopters, indoor foamies, and lightweight gliders.

Features

  • Micro size and lightweight 4.8g design
  • High torque output of 1.5 kg-cm at 6V
  • Fast 0.07 second transit speed
  • Durable metal gear train
  • Single ball bearing for precision
  • Genuine Power HD Product

In the box

  • 1x Power HD 1025PH Micro Servo
  • 1x Servo Horn & Screw Set

Specifications

Servo

SizeConventionally sized servo namesMicro
Gear MaterialMetal
Servo Spline Count25Tooth
Waterproof CasingNo
Input Voltage Range4.8V, 6V
Case MaterialPlastic
Height (A)24.5mm
Body Length (B)20mm
Width (F)9mm
Drive Motor TypeBrushed
Rotational Degrees120° (Normal)
4.8V Torque kg/cm1.0
4.8V Sec/60 Degrees0.075
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline1.5
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.070
Signal TypeDigital
