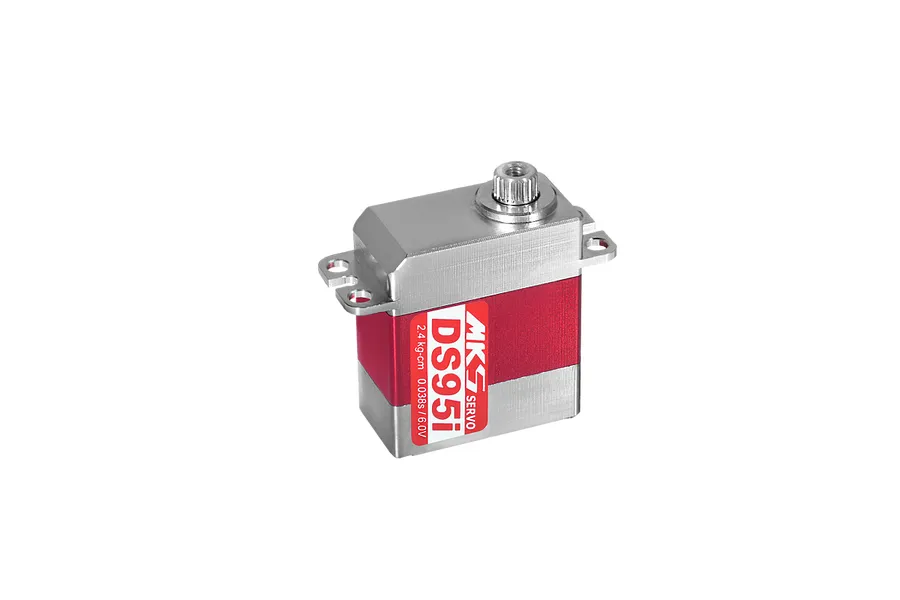

MKS Silver/Red Aluminium DS95i Micro 2.4kg 6V Coreless Metal Geared Servo
Brand: MKS
|
SKU: S0017002
Description
 Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Overview
Ideal for micro-sized airplanes, helicopters, or robots, the MKS Silver/Red Aluminium S0017002 provides the reliable, high-speed performance you need in a space-saving package.

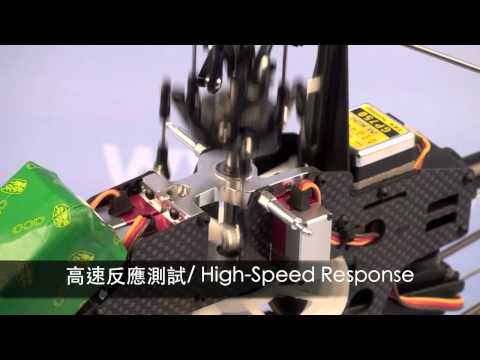

Video
Features
- Compact and lightweight for micro applications
- Responsive with lightning-fast speeds
- Durable metal gears
- Coreless motor for efficiency and smooth operation
- Wide operating voltage range
- Genuine MKS Product
Specifications
- Torque (4.8V): 1.92 kg-cm / 26.7 oz-in
- Torque (6.0V): 2.40 kg-cm / 33.3 oz-in
- Speed: 0.047 s (4.8V) / 0.038 s (6.0V)
- Weight: 21.21 g (0.75 oz)
- Operating Voltage: 4.8V ~ 7.0V DC
- Bearing Type: Dual Ball Bearing
- Motor Type: Coreless
- Operating Temperature: N/A
- Refresh Rate: 560Hz
Servo Dimensions
- Total Height (A) = 29.85 mm
- Body Width (B) = 23 mm
- Below Mount (C) = 19.90 mm
- Above Mount (D) = 9.95 mm
- Total Length (E) = 31.45 mm
- Total Width (F) = 12 mm
![RC Hobby Servo Specifications](https://cdn.hobbiesdirect.com.au/catalog/category/Descriptions/Servos/Servo%20Specifications%20Diagram.jpg)
How To: Install a Servo
In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.
Included items
Description | QTY |
---|---|
MKS Silver/Red Aluminium S0017002 2.4kg 6V Micro Coreless Metal Geared Servo | 1 |
Specifications
Servo | |
---|---|
Servo Size: | Micro |
Drive Motor Type: | Coreless |
Gear Material: | Metal |
Case Material: | Aluminium |
Waterproof Casing: | No |
Rotational Degrees: | 120° (Normal) |
Servo Spline Count: | 25 |
Signal Type: | Digital |
4.8V Torque kg/cm: | 1.92 |
6.0V Torque kg/cm: | 2.4 |
4.8V Sec/60 Degrees: | 0.047 |
6.0V Sec/60 Degrees: | 0.038 |
Input Voltage Range: | 4.8V,6V |
"A" Measurement: | 29.85 |
"B" Measurement: | 23 |
"C" Measurement: | 19.90 |
"D" Measurement: | 9.95 |
"E" Measurement: | 31.45 |
"F" Measurement: | 12 |
