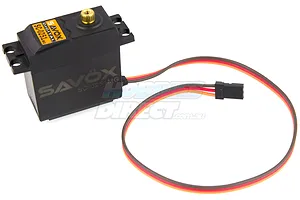

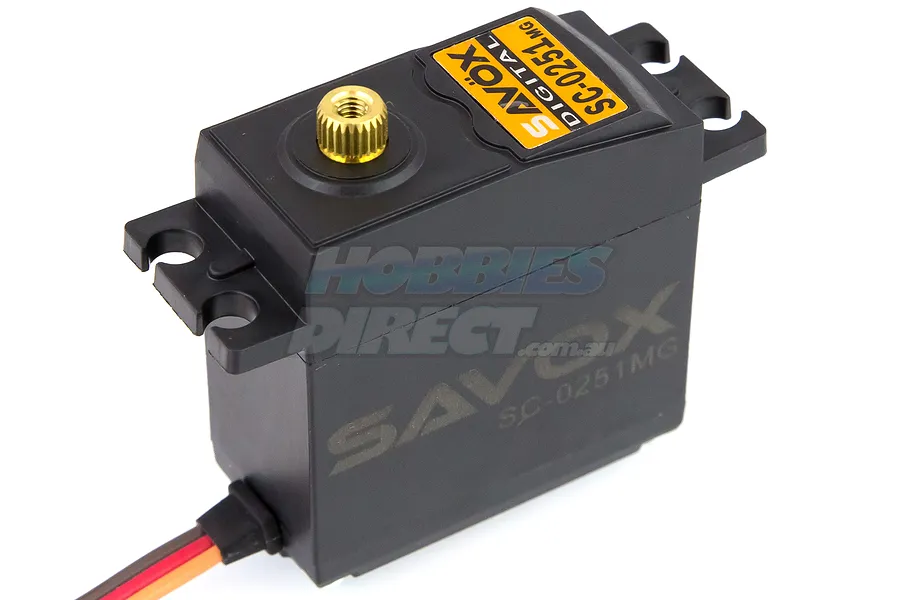

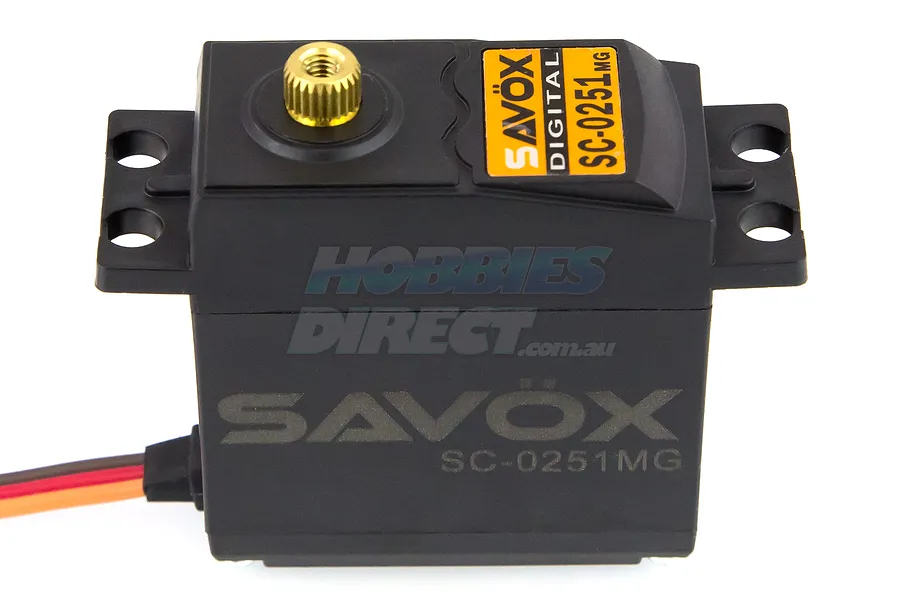

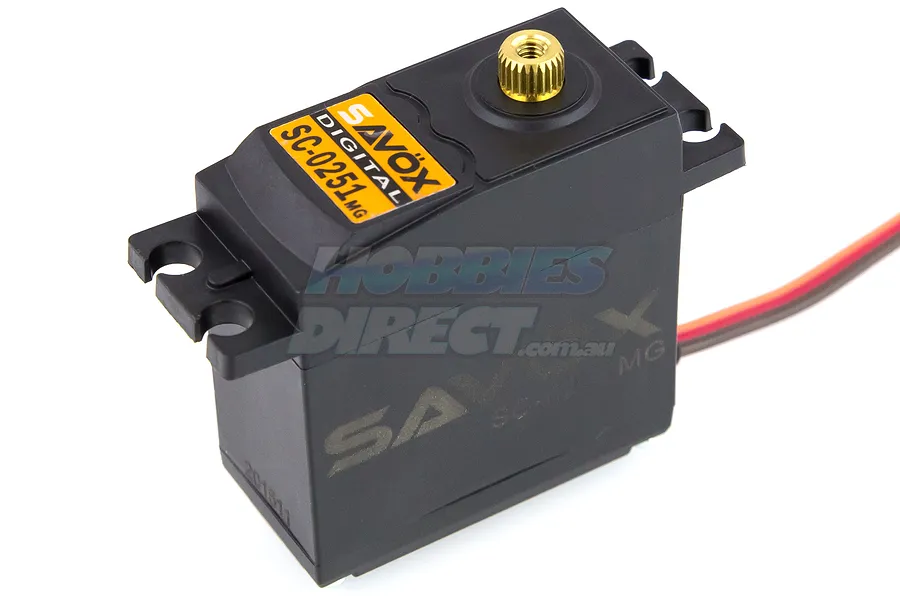

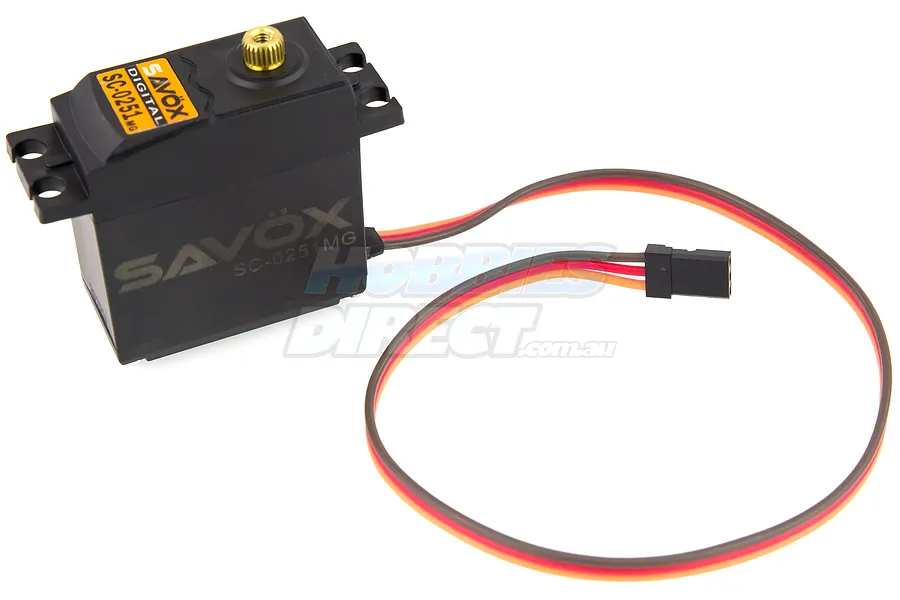

Savox SC-0251MG Plus Standard 16kg 6V Metal Geared Servo

Brand: Savox | SKU: SC-0251MG-PLUS

1 in stock

write a review

$63.02

Pay later with

Want more than 1?

and we'll notify you when the stock is here.

Delivery Options

Description

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

The Savox SC-0251MG Plus is a versatile digital servo that delivers exceptional torque and features a robust metal gear train, making it well-suited for a wide range of applications. The "Plus" series compatibility further enhances its capabilities with Soft Start for smoother operation and Sanwa SSR compatibility for expanded compatibility.

Features

The metal gearing provides incredible strength and longevity
Durable plastic casing keeps weight down

Plus series includes Soft start and Sanwa SSR compatibility
Ideal for aircraft and some 1/8 off-road car applications

Specifications

Spline size: 25T Spline
Servo Technology: Digital
Operating Voltage: 4.8V - 6V
Motor Type: Brushed Motor
Weight: 61g
Gear Type: Metal Gears
Refresh Rate: 240 Hz

Servo Case: Plastic
Torque @ 4.8V: 13 kg-cm (180.5 oz-in)
Torque @ 6V: 16 kg-cm (222.2 oz-in)
Speed @ 4.8V: 0.20 sec/60 deg
Speed @ 6V: 0.18 sec/60 deg
Connector type: JR/Futaba

Servo Specifications

Total Height (A) = mm
Body Width (B) = mm
Below Mount (C) = mm
Above Mount (D) = mm
Total Length (E) = mm
Total Width (F) = mm

How To: Install a Servo

In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.

Included items

Description	QTY
Savox 16kg Standard Plus 6v Metal Geared Servo	1

Specifications

Servo

Servo Spline Count: 25Tooth
Total Length: 55.4mm
Total Width: 20mm
Bottom to Under Mount: 32mm
Top to Under Mount: 15.1mm
4.8V Sec/60 Degrees: 0.20
Drive Motor Type: Brushed
Rotational Degrees: 120° (Normal)
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.18
Signal Type: Digital
Case Material: Metal
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 16
Gear Material: Metal
Waterproof Casing: No
Input Voltage Range: 4.8VV, 6VV
Total Height: 47.1mm
Body Length: 40.7mm
4.8V Torque kg/cm: 13
Size Conventionally sized servo names: Standard
