Savox

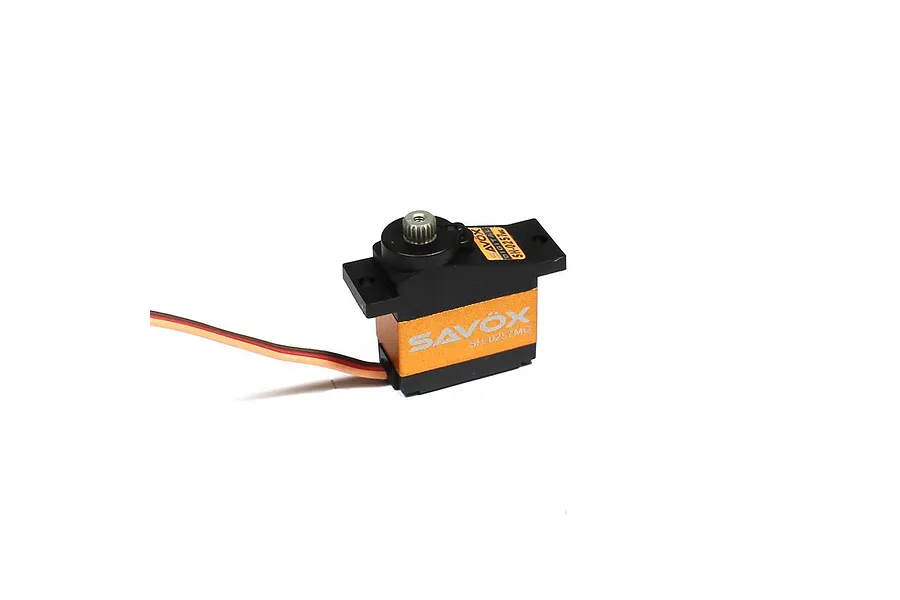

Savox Micro 2.2kg 6v Metal Geared Servo

Part no. SH-0257MG

DiscontinuedWrite a review
1 / 2
1 / 2

This product has been discontinued.

Contact us

No longer made. In stock now: similar

Overview

The Savox SH-0257MG metal-gear, high-torque, digital, micro servo has more output torque than larger servos without sacrificing speed.

Note

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Features

  • Metal gear train ensures durability and longevity.
  • Aluminum middle case allows for cooler operating temperatures.
  • Ideal for small planes, and 450 size helicopters.

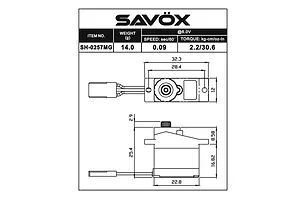

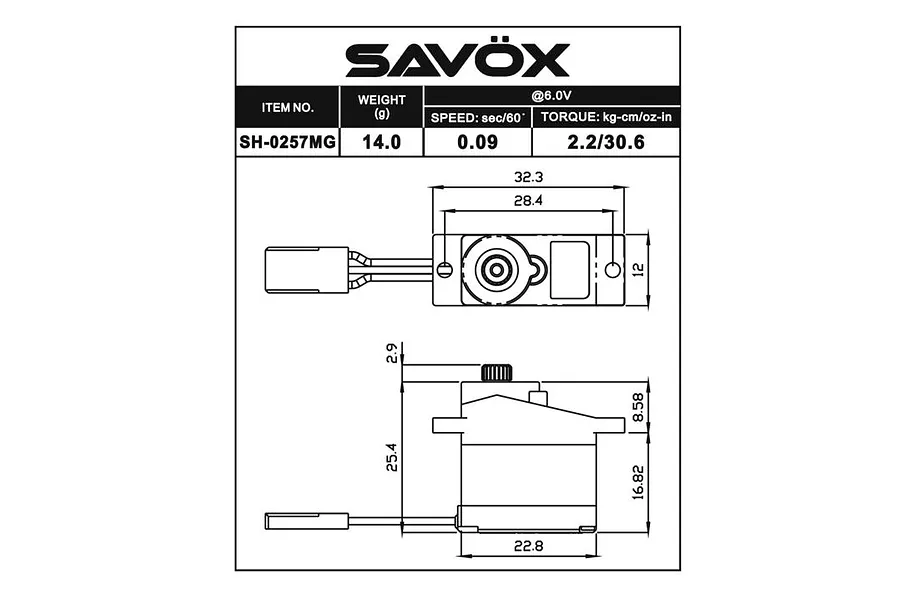

Specifications

Total Height (A)28.3mm
Body Width (B)22.8mm
Below Mount (C)16.82mm
Above Mount (D)8.58mm
Total Length (E)32.3mm
Total Width (F)12mm

Servo

Servo
SizeConventionally sized servo namesMicro
Gear MaterialMetal
Waterproof CasingNo
Input Voltage Range4.8V, 6V
Case MaterialMetal, Plastic
Height (A)28.3mm
Body Length (B)22.8mm
Bottom to Under Mount (C)16.82mm
Top to Under Mount (D)8.58mm
Length (E)32.3mm
Width (F)12mm
Drive Motor TypeBrushed
Rotational Degrees120° (Normal)
4.8V Torque kg/cm1.8
4.8V Sec/60 Degrees0.13
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline2.2
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.09
Signal TypeDigital
