Savox SW-0267MG Micro 6kg 6V Metal Geared Waterproof Servo
Brand: Savox
|
SKU: SW-0267MG
Videos
Description
The SW-0267MG is a digital servo that offers exceptional water resistance, high torque, and a slightly taller case compared to standard servos. Its bottom-mounted wire outlet provides a solution for when you need a unique mounting configuration. This servo is an ideal upgrade for those seeking enhanced performance without the need for higher voltage. It serves as an excellent alternative for the Traxxas 2065A.
Features
- Leading edge digital servo technology
- Strong 3-Pole Brushed motor
- Accurate and fast response
- Composite case is durable and lightweight
- Ball bearings provide fluid and unrestricted movement
- Precision Metal gears are durable and long lasting
- Waterproof protection
Specifications
- Servo Technology: Digital Low Voltage
- Input Voltage (V): 4.8V - 6.0V
- Servo Type / Size: Mini
- Motor Type: Brushed 3-Pole Motor
- Gear Material: Metal Gears
- Servo Case: Composite Plastic
- Connector type: JR
- Speed 60°/Sec @ 6.0V: 0.11 Sec/60°
- Torque kg/cm @ 4.8V: 5.0 Kg/cm, 6.0V: 6.0 Kg/cm
- Weight (g): 25 g
- Spline size: 21T Spline

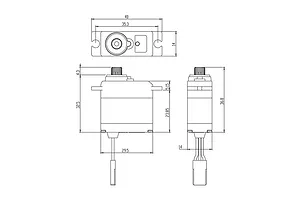

Servo Dimensions
- Total Height (A) = 23.5mm
- Body Width (B) = 22.6mm
- Below Mount (C) = 14.5mm
- Above Mount (D) = 11.8mm
- Total Length (E) = 31mm
- Total Width (F) = 12.6mm
How To: Install a Servo
In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.
Specifications
| Servo | |
|---|---|
| Size: | Micro |
| 4.8V Sec/60 Degrees: | 0.16 |
| 4.8V Torque kg/cm: | 5 |
| Sec/60 Degrees: | 0.135 |
| 6V Torque kg/cm: | 6 |
| Gear Material: | Metal |
| Waterproof Casing: | Yes |
| Signal Type: | Digital |
| Input Voltage Range: | 4.8V, 6V |
| Case Material: | Plastic |
| Rotational Degrees: | 120° (Normal) |
| Total Height: | 23.5mm |
| Body Length: | 22.6mm |
| Bottom to Under Mount: | 14.5mm |
| Top to Under Mount: | 11.8mm |
| Total Length: | 31mm |
| Total Width: | 12.6mm |
