Reefs RC Aluminium RAW100 Mini 7.4kg 8.4V Coreless Metal Gear Servo - Silver

Reefs RC Aluminium RAW100 Mini 7.4kg 8.4V Coreless Metal Gear Servo - Silver

Reefs RC Aluminium RAW100 Mini 7.4kg 8.4V Coreless Metal Gear Servo - Silver

Brand: Reefs RC | SKU: REEFS134
2 in stock
$160.86
Reefs RC RAW 100 MINI 7.4kg RC Servo: High torque, high speed, and waterproof.
  • High torque of 7.4 kg-cm
  • Submarine waterproof with magnetic angle sensor
  • Fully programmable with Reefs RC software
  • Durable all-metal gears and CNC aluminium casing with heat sink
  • Compact size suitable for mini RC vehicles
Add to Wishlist
Pay later with
Afterpay Zip Paypal
Description

The Reefs RC RAW 100 MINI Servo is a top-tier choice for RC enthusiasts seeking high performance and reliability in a compact form. This mini coreless servo boasts impressive torque and speed, making it ideal for demanding applications. With a voltage range of 6V to 8.4V, it delivers consistent power and performance across various conditions.

Designed with durability in mind, the RAW 100 MINI features all-metal gears and a CNC aluminium casing with a heat sink, ensuring it can withstand rigorous use. The submarine waterproof design provides excellent protection against water and dust, making it suitable for all-terrain adventures. Additionally, the magnetic angle sensor and pulse width modulation control offer precise and responsive control, enhancing the overall driving experience. Fully programmable with Reefs RC software, this servo allows for customisation to meet specific needs. Whether you're a seasoned RC hobbyist or a newcomer, the Reefs RC RAW 100 MINI is a reliable and powerful addition to your RC setup.

Features
  • High torque and speed mini coreless servo
  • Strong torque @ 7.4 kg-cm (103 oz-in) and fast speed of 0.08 sec @ 8.4V
  • Submarine waterproof with magnetic angle sensor
  • Fully programmable with Reefs RC software
  • Pulse width modulation control
  • Voltage range: 6V - 8.4V
  • No mechanical angle limit
  • All-metal gears and CNC aluminium casing with heat sink
  • 2 ball bearings for smooth operation
  • 22AWG wires
  • Genuine Reefs RC product
Specifications
  • Torque(6.0V): 6.1 kg-cm (85 oz-in)
  • Torque(7.4V): 6.9 kg-cm (95 oz-in)
  • Torque(8.4V): 7.4 kg-cm (103 oz-in)
  • Speed: 0.11 sec (6.0V), 0.10 sec (7.4V), 0.08 sec (8.4V)
  • Operating Voltage: 6V - 8.4V
  • Weight: 30g (1.05oz)
  • Bearing Type: 2 Ball Bearings
  • Motor Type: Coreless Motor
  • Gear Type: All-Metal Gears

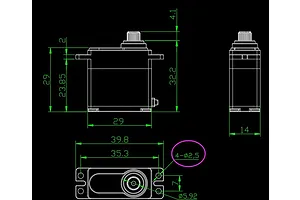

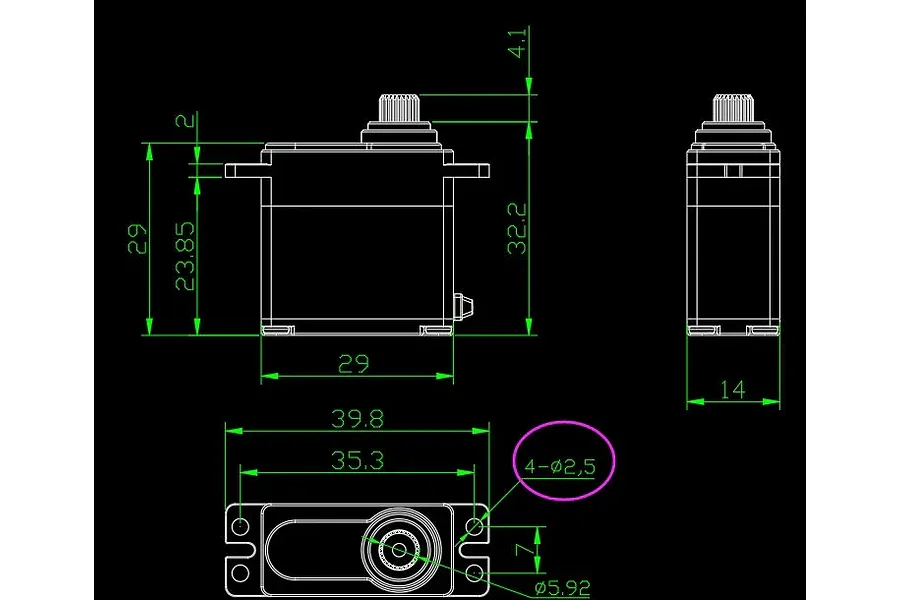

  • Size: 29.5x14x29mm (1.16x0.55x1.14")
Included Items
  • 1x Reefs RC RAW 100 MINI Servo
Note
  • BEC is not required but recommended for maximum performance
  • Reefs RC LINK required for programming (optional)
  • Consult the manual for waterproof standards and maintenance
Specifications
Servo
Total Length
mm
Total Width
mm
Drive Motor Type
Coreless
Top to Under Mount
mm
8.4V Sec/60 Degrees
.08
Input Voltage Range
7.4VV, 6VV, 8.4VV
Rotational Degrees
120° (Normal)
8.4V Torque kg/cm
7.4
Signal Type
Digital
Case Material
Aluminium
6V Torque kg/cm
Kilograms of torque at 25mm away from the center of the spline
6
Gear Material
Metal
Waterproof Casing
Yes
Servo Spline Count
25Tooth
6V Sec/60 Degrees
Seconds per 60 degrees of rotation
.11
7.4V Torque kg/cm
6.8
Total Height
mm
7.4V Sec/60 Degrees
.10
Body Length
mm
Bottom to Under Mount
mm
Size
Conventionally sized servo names
Mini
