MKS

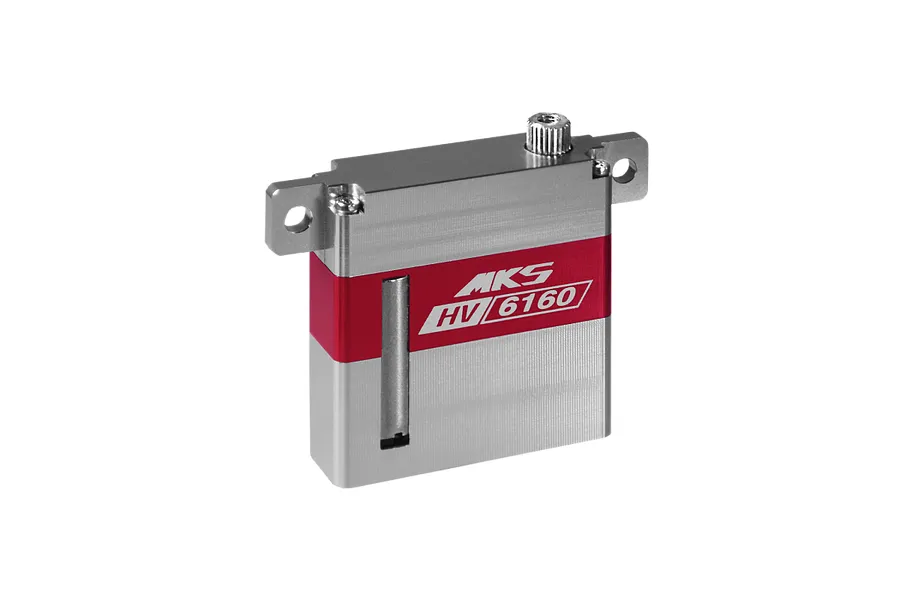

MKS Red/Silver Aluminium 6160 Low Profile 18.6kg 8.4V Coreless Metal Geared Servo

Part no. S0022018

Expected 1 DecNo reviews yet

$149.99

or 4 fortnightly payments of $37.50 with afterpay or PayPal, or zip

In stock now: similar

Overview

The MKS Red/Silver Aluminium 6160 packs extreme torque and lightning-fast speeds into a space-saving, low-profile design. Its robust aluminium construction ensures reliable performance in demanding applications.

Note

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Features

  • Massive torque output in a low-profile design
  • Responsive with lightning-fast speeds
  • Robust all-aluminium construction dissipates heat and protects the servo
  • High performance coreless motor paired with robust metal gears
  • High voltage operation (4.8V - 8.4V)
  • Genuine MKS Product

In the box

  • 1x MKS Red/Silver Aluminium 6160 18.6kg 8.4V Low Profile Coreless Metal Geared Servo

Specifications

Torque (4.8V)11.7 kg-cm / 162.4 oz-in
Torque (6.0V)14.5 kg-cm / 201.3 oz-in
Torque (7.4V)17.0 kg-cm / 236.1 oz-in
Torque (8.4V)18.6 kg-cm / 258.3 oz-in
Speed0.230 s (4.8V) / 0.182 s (6.0V) / 0.147 s (7.4V) / 0.133 s (8.4V)
Weight30.7 g (1.08 oz)
Operating Voltage4.8V ~ 8.4V DC
Bearing Type2 Oil Retaining Bearings
Motor TypeCoreless Motor
Operating TemperatureN/A
Refresh Rate333 Hz
Total Height (A)38.7 mm
Body Width (B)33 mm
Below Mount (C)27.2 mm
Above Mount (D)3.5 mm
Total Length (E)45 mm
Total Width (F)8 mm

Servo

Servo
SizeConventionally sized servo namesLow Profile
Gear MaterialMetal
Servo Spline Count25Tooth
Waterproof CasingYes
Input Voltage Range4.8V, 6V, 7.4V, 8.4V
Case MaterialAluminium
Height (A)38.70mm
Body Length (B)33mm
Bottom to Under Mount (C)27.2mm
Top to Under Mount (D)3.5mm
Length (E)45mm
Width (F)8mm
Drive Motor TypeCoreless
Rotational Degrees120° (Normal)
4.8V Torque kg/cm11.7
4.8V Sec/60 Degrees0.230
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline14.5
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.182
7.4V Torque kg/cm17
7.4V Sec/60 Degrees0.147
8.4V Torque kg/cm18.6
8.4V Sec/60 Degrees0.133
Signal TypeDigital
