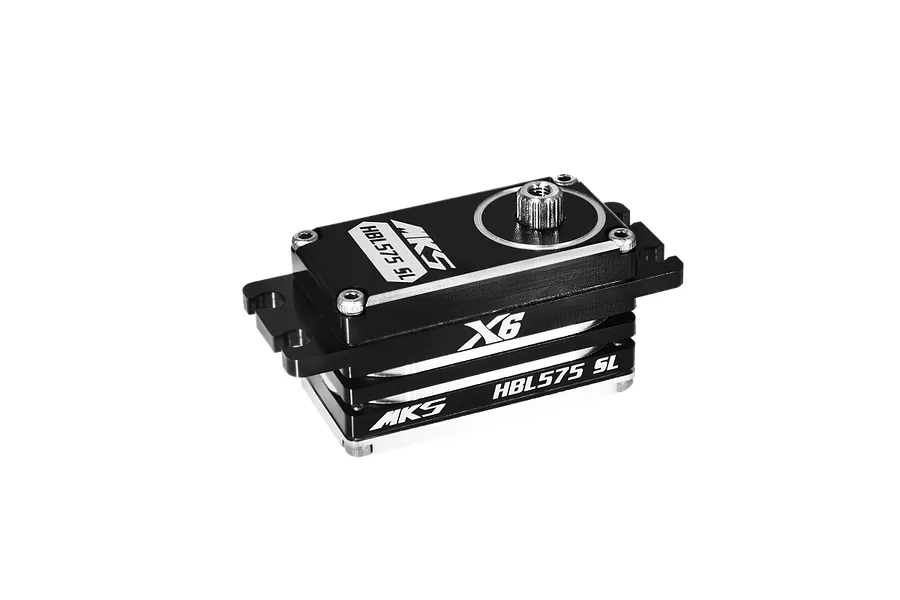

MKS Black Aluminium HBL575SL Low Profile 16.8kg 7.4V Brushless Metal Geared Servo

Videos

MKS Black Aluminium HBL575SL Low Profile 16.8kg 7.4V Brushless Metal Geared Servo

Brand: MKS | SKU: S0026003

3+ in stock

write a review

$249.99

Pay later with

Description

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Get the power, speed, and long-lasting durability you need in a compact package with the MKS Black Aluminium S0026003 . Its full aluminium casing ensures robust protection for demanding use and featuring fins that ensure a high level of heat dissipation.

Features

Powerful torque perfect for demanding applications
Extremely quick response speeds as quick as 0.07s
Durable brushless motor pairs with the metal gears for unparalleled durability

Low profile design for space-limited applications
Full aluminium casing for efficient heat dissipation and strong protection
Genuine MKS Product

Specifications

Torque (4.8V): 10 kg-cm / 138.9 oz-in
Torque (6.0V): 13.3 kg-cm / 184.7 oz-in
Torque (7.4V): 16.8 kg-cm / 233.3 oz-in
Speed: 0.10 s (4.8V) / 0.08 s (6.0) / 0.07 s (7.4V)
Weight: 53.51 g (1.89 oz)

Operating Voltage: 4.8V ~ 8.4V DC Volts
Bearing Type: Dual Ball Bearing
Motor Type: Brushless
Operating Temperature: N/A
Refresh Rate: 333hz

Servo Dimensions

Total Height (A) = 27.10 mm
Body Width (B) = 40.5 mm
Below Mount (C) = 14.3 mm
Above Mount (D) = 12.8 mm
Total Length (E) = 54.5 mm
Total Width (F) = 20.5 mm

How To: Install a Servo

In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.

Included items

Description	QTY
MKS Black Aluminium S0026003 16.8kg 7.4V Low Profile Brushless Metal Geared Servo	1

Specifications

Servo

Total Length: 54.5mm
Total Width: 20.5mm
Drive Motor Type: Brushless
Top to Under Mount: 12.8mm
Input Voltage Range: 6VV, 4.8VV, 7.4VV
4.8V Sec/60 Degrees: 0.10
Rotational Degrees: 120° (Normal)
7.4V Sec/60 Degrees: 0.07
Signal Type: Digital
Case Material: Aluminium
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 13.3
Gear Material: Metal
Waterproof Casing: Yes
Servo Spline Count: 25Tooth
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.08
7.4V Torque kg/cm: 16.8
Total Height: 27.10mm
Body Length: 40.5mm
Bottom to Under Mount: 14.3mm
4.8V Torque kg/cm: 10
Size Conventionally sized servo names: Low Profile
