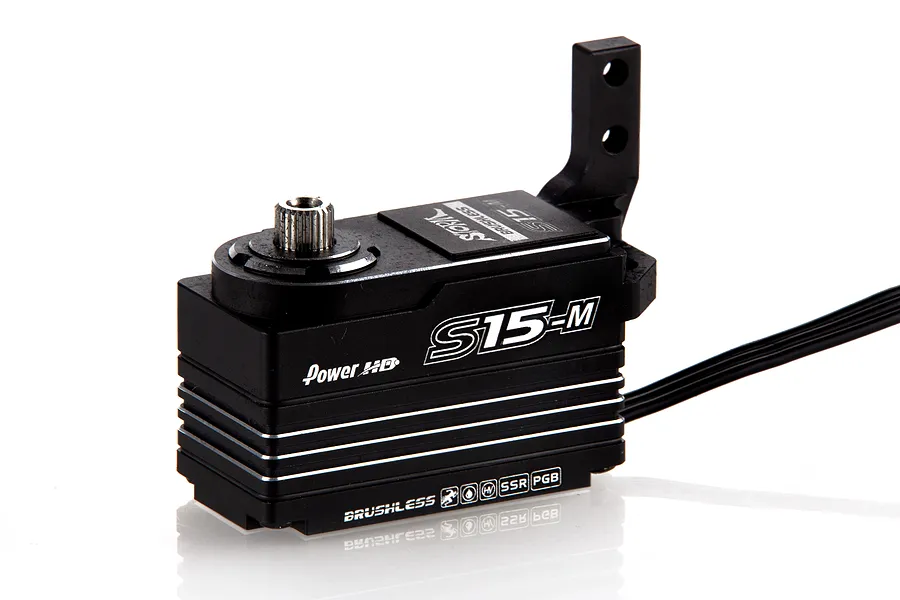

Power HD S15-M Storm Low Profile Brushless 16.5Kg 8.4V HV Brushless Metal Geared Servo
Power HD S15-M Storm Low Profile Brushless 16.5Kg 8.4V HV Brushless Metal Geared Servo
Programmable low-profile brushless servo with 16.5kg torque at 8.4V, integrated mount for Mugen MTC2.
- Programmable with the Power HD PG-CB63 for greater track control
- Low profile to allow easier installation
- Super strong Titanium and steel gearing
- Brushless motor for greater efficiency and longevity
- Designed for the Mugen MTC2 with integrated mount
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
With its built-in mounting system and reverse receiver wire output, the S15-M can seamlessly attach to the Mugen MTC2 without any complications. Thanks to its lower centre of gravity and tidier wiring, the S15-M outperforms the PGB-S15 in terms of performance.
You can also customise the settings on this servo using the Power HD program box, giving you the flexibility to adjust parameters to suit various track conditions. The ability to program your servo allows for precise steering adjustments, ultimately leading to improved lap times.
- Programmable with the Power HD PG-CB63 for greater track control
- Low profile to allow easier installation
- Super strong Titanium and steel gearing
- Brushless motor for greater efficiency and longevity
- Super strong and stylish black aluminium waterproof casing
- Designed for the Mugen MTC2 and includes an integrated mount
- 1x Power HD S15-M Storm Low Profile Brushless 16.5Kg 8.4V HV Brushless Metal Geared Servo
-
Torque (6V)
- 11.5 kg-cm (159.7 oz-in)
-
Torque (7.4V)
- 15 kg-cm (208.31 oz-in)
-
Torque (8.4V)
- 16.5 kg-cm (229.14 oz-in)
-
Speed
- 0.072 sec (6V) | 0.060 sec (7.4V) | 0.050 sec (8.4V)
-
Operating Voltage
- 6V - 8.4V
-
Weight
- 57.5g (2.02oz)
-
Bearing Type
- Ball Bearing x 2
-
Motor Type
- Brushless
-
Operating Temperature
- -20°C - 60°C
-
Refresh Rate
- 333Hz
-
Size
- 41 x 20 x 26mm (1.61 x 0.79 x 1.02in)
-
Body Width
- 41mm
-
Total Length
- 52.2mm
-
Total Width
- 20mm
-
Total Height
- 31.1mm
