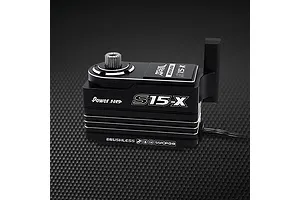

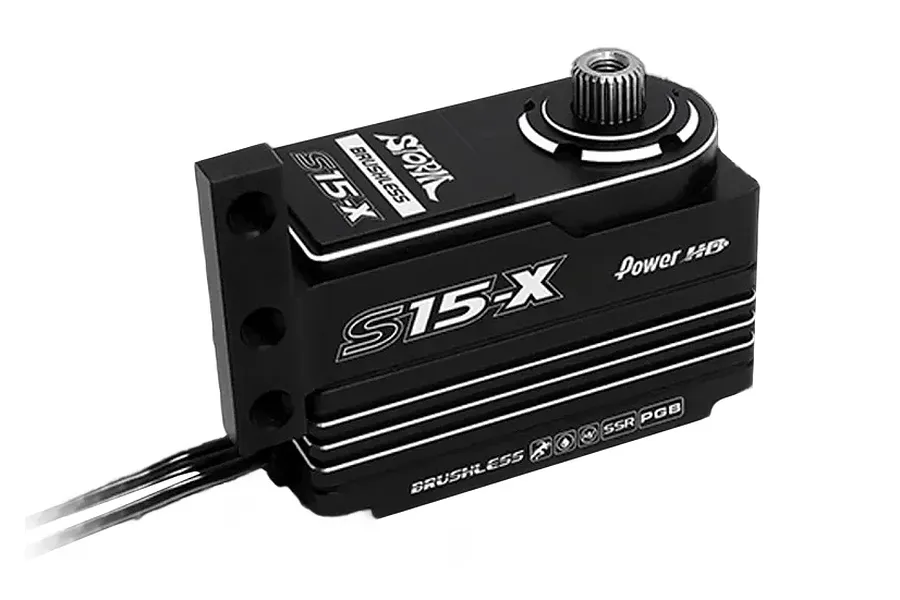

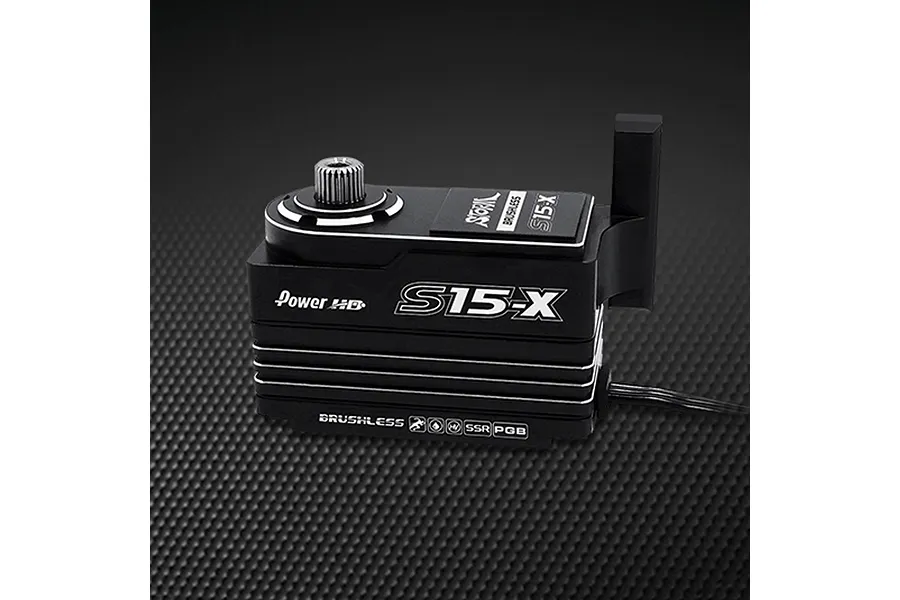

Power HD S15-X Storm Low Profile HV Brushless 16.5kg 8.4v Metal Geared Servo For XRAY X4
Power HD S15-X Storm Low Profile HV Brushless 16.5kg 8.4v Metal Geared Servo For XRAY X4
Brand:
Power HD
|
MPN: S15-X
Videos
Recommended Products
Alternative Products
/fit-in/300x200/production/image/product/i5Q0NgjUhqmQYYY5bff4jZ6Ru7Jla7Jx.jpg)
Futaba Low Profile Standard 11kg Metal Geared Servo
--
/fit-in/300x200/production/image/product/i07d8MIrjm1UPNG7h6TnQy3veC56h6Bt.jpg)
Futaba HPS-CT500 Low Profile 21kg 7.4v HV Brushless Metal Geared Servo
--
Related Products
Power HD Red Aluminium Storm S15 Low Profile HV Brushless 16.5kg 8.4v Metal Geared Servo
0 reviews
$189.99
Alternatives
Team Powers Black Aluminium DS1550SR V3 SRS Low Profile 13kg 7.4V Brushless Metal Geared Servo
0 reviews
$209.95
Alternatives
MKS Black Aluminium HBL550LX Low Profile 16kg 7.4V Brushless Metal Geared Servo
0 reviews
$185.99
Alternatives
MKS Black Aluminium HBL575SL Low Profile 16.8kg 7.4V Brushless Metal Geared Servo
0 reviews
$249.99
Alternatives
Power HD Red Aluminium Storm S25 Standard HV Brushless 25kg 7.4v Metal Geared Servo
0 reviews
$189.99
in 1 week
Description
Released by Power HD, the S15-X is designed exclusively for the XRAY X4. It includes an integrated mount and reverse receiver wire output for smarter wiring placement. The S15-X retains the superior performance of Power HD high-end servos and allows programming with the Power HD Multifunction LCD Servo Program Box to perfect parameters for ultimate performance.
Features
- 8.4v High-Voltage
- Low profile size & weight
- Metal geared
- Designed for the XRAY X4 and includes an integrated mount
Included Items
- 1x S15-X Storm 16.5kg 8.4v Servo
Videos
Specifications
-
Torque (6.0V)
- 11.5 kg-cm (159.7 oz/in)
-
Torque (7.4V)
- 15.0 kg-cm (208.3 oz/in)
-
Torque (8.4V)
- 16.5 kg-cm (229.1 oz/in)
-
Speed (6.0V)
- 0.072 sec
-
Speed (7.4V)
- 0.060 sec
-
Speed (8.4V)
- 0.050 sec
-
Operating Voltage
- 6.0 ~ 8.4 DC Volts
-
Weight
- 56.5g (2.0oz)
-
Bearing Type
- Ball Bearing x 2
-
Motor Type
- Brushless Motor
-
Gear Type
- Titanium & Steel
-
Operating Temperature
- -20°~60°
-
Working Frequency
- 1520µs / 333hz
-
Dimensions
- 41.0x20.0x26.0mm (1.61x0.79x1.02")
Servo
-
SizeConventionally sized servo names
- Low Profile
-
Gear Material
- Titanium & Steel
-
Case Material
- Aluminium
-
Drive Motor Type
- Brushless
-
Rotational Degrees
- 120° (Normal)
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 16.5
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.072
-
Signal Type
- Digital
