Power HD

Power HD Multifunction LCD Servo Program Box

Part no. PG-CB63

Sold outNo reviews yet

$69.99

or 4 fortnightly payments of $17.50 with afterpay or PayPal, or zip

LCD servo program box with 32-bit processor, 20 parameter memory slots, PWM testing, and one-button factory reset for compatible Power HD servos.

  • Built-in 32-bit micro coprocessor for easy operation
  • LCD display with broad band & narrow band PWM testing
  • Stores up to 20 individual sets of servo parameters
  • Adjustable central point for consistent servo angle
  • One-button factory default restore

In stock now: similar

Overview

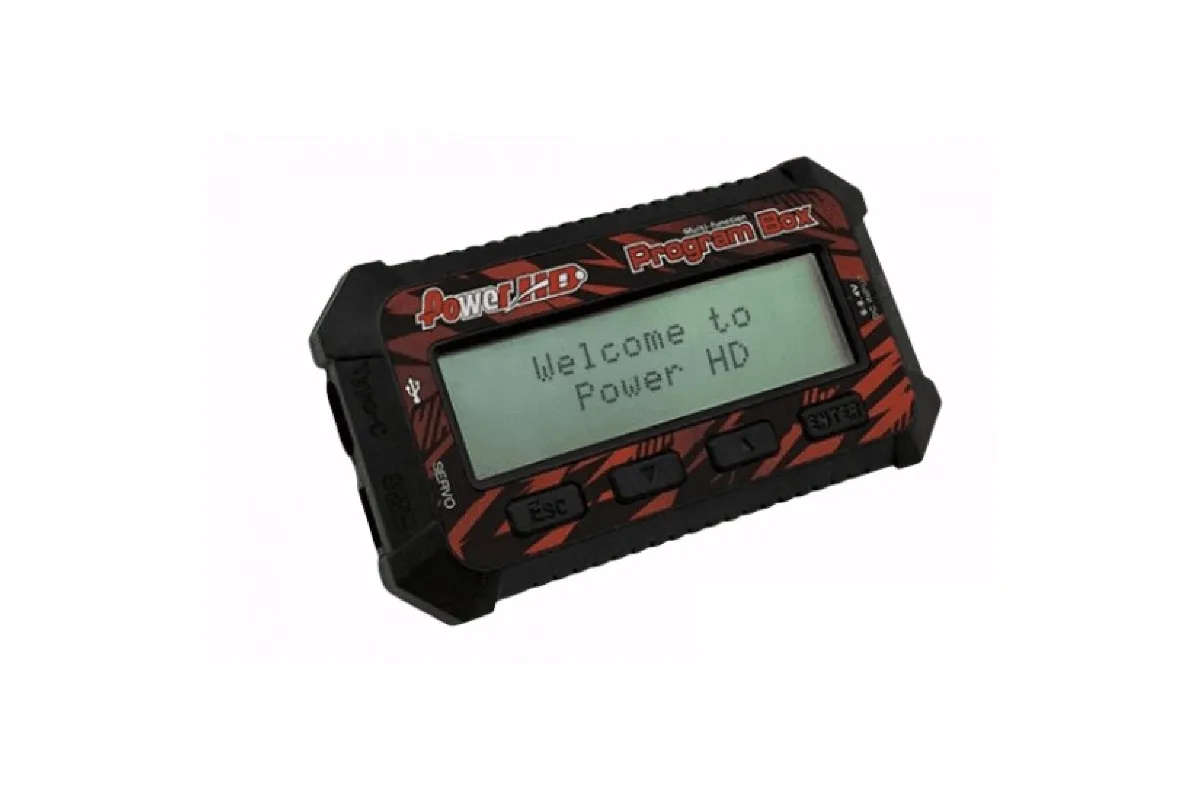

The PG-CB63 is a small, LCD-equipped servo program box with a built-in high-performance 32-bit micro coprocessor for easy operation. Servo parameters can be set for different track conditions, and the box can store 20 individual sets of servo parameters.

Note

The Multi-function Program Box is compatible with the following Power HD Servos: S15, S25, S35, S50, D12, D15, WH-20KG, WH-30KG, WH-40KG, A-40CHV, A-50CHV.

Features

  • LCD display for easy operation
  • Built-in high-performance 32-bit micro coprocessor
  • Stores 20 individual sets of servo parameters
  • Central point of the servo can be adjusted for a more consistent angle
  • Servo testing via broad band & narrow band PWM testing function
  • One-button restore to factory default function
  • Compatible with a variety of Power HD Servos featuring PGB & PGC

In the box

  • 1x Multi-function Servo Program Box
  • 2x Cables
  • 1x Instruction Manual

Specifications

ProgrammingPGB PGC
Operating Voltage5–8.4V DC
Idle Current<20mA
Operating Temperature0–40°C
Storage Temperature10–60°C
Storage Humidity20–75% RH
Weight40g
Dimensions89 x 49 x 12.3mm
