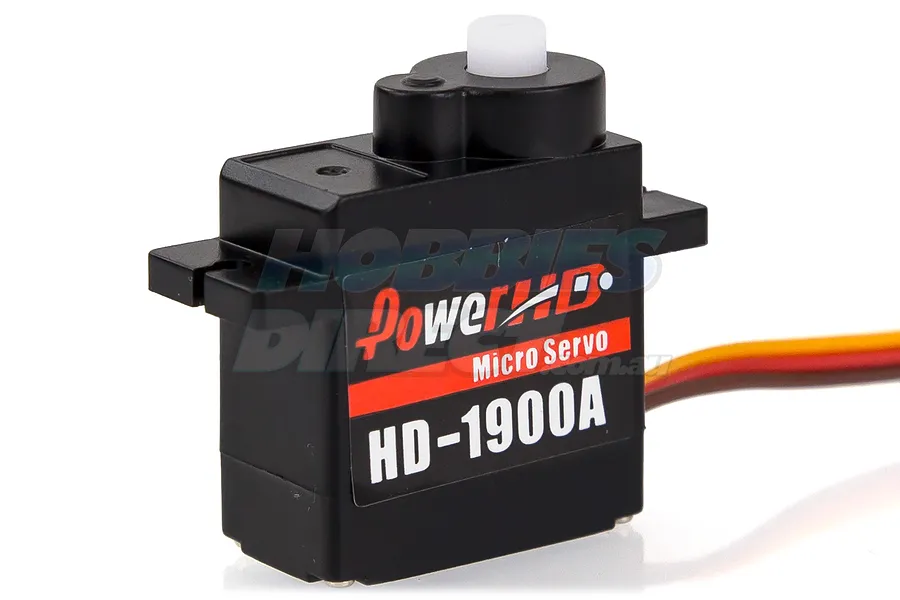

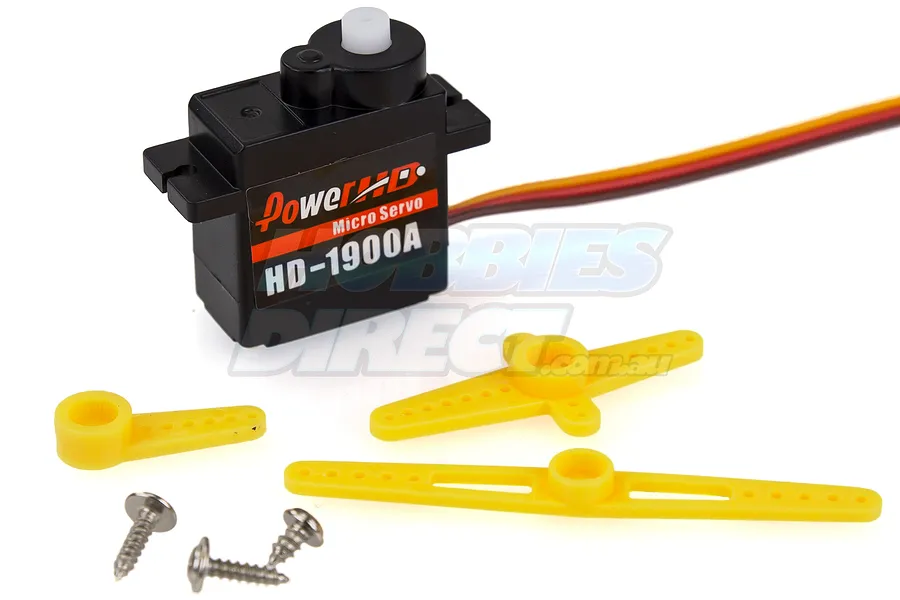

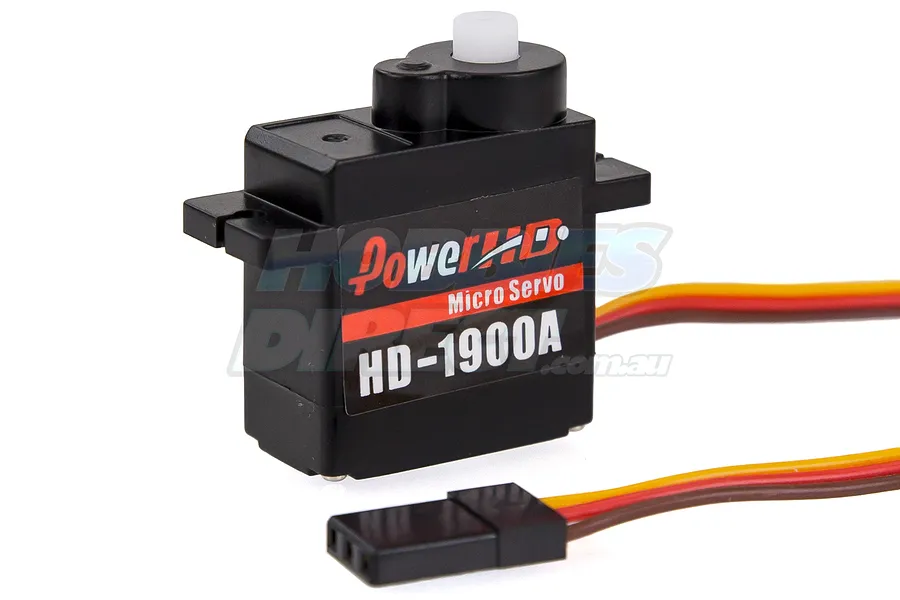

Power HD Micro 1900A 1.7kg Servo
Description
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Power HD Micro 1711A Servo Specifications
- Total Height (A) = 30mm
- Body Width (B) = 23mm
- Below Mount (C) = 16mm
- Above Mount (D) = 14mm
- Total Length (E) = 32.5mm
- Total Width (F) = 12mm
Specifications
Servo
-
Total Width
- 12mm
-
Top to Under Mount
- 14mm
-
Total Length
- 32.5mm
-
Body Length
- 23mm
-
Bottom to Under Mount
- 16mm
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.08
-
Total Height
- 30mm
-
Signal Type
- Analog
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 1.7
-
Gear Material
- Plastic
-
Waterproof Casing
- No
-
SizeConventionally sized servo names
- Micro
