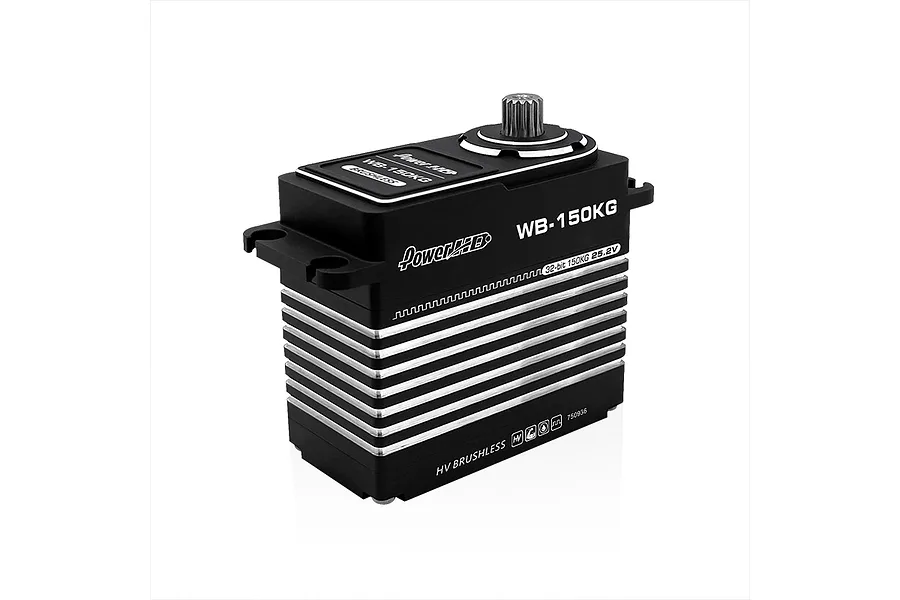

Power HD Aluminium WB-150KG 1/5 150kg 25.2V Brushless Steel Geared Servo - Black
Power HD Aluminium WB-150KG 1/5 150kg 25.2V Brushless Steel Geared Servo - Black
Get Maximum Steering Force With The Power HD WB-150KG 1/5 Scale Servo, An Ultra High Voltage Servo For The Most Demanding Builds.
An Incredible 150kg Of Steering Torque
Directly Powered By 4S-6S LiPo (Up To 25.2V)
Full Steel Gear Drivetrain For Extreme Durability
Designed For Large 1/5 Scale Applications
Brushless Motor For Reliable High Power
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
When you need the absolute maximum steering power for your large-scale project, the Power HD WB-150KG servo is ready to deliver. This is one of the most powerful servos on the market, purpose-built for the most demanding 1/5 scale vehicles and custom builds. It produces an incredible 150 kg-cm of torque, giving it the raw strength to accurately steer the heaviest trucks with the biggest wheels.
The WB-150KG is an Ultra High Voltage (UHV) servo, engineered to be powered directly by a 4S to 6S LiPo battery (up to 25.2V). This high-power capability is managed by a reliable brushless motor and transferred through a full steel gear train for extreme durability. The entire servo is housed in a tough aluminium case that adds rigidity and helps dissipate heat. For pure, uncompromising power, the WB-150KG is in a class of its own.
Produces an enormous 150 kg-cm of torque at 25.2 V
Built for the largest and most demanding 1/5 scale applications
Fast 0.09 second transit speed for a surprisingly quick response
High-power brushless motor for reliable and consistent performance

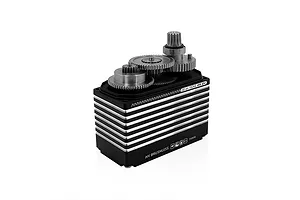

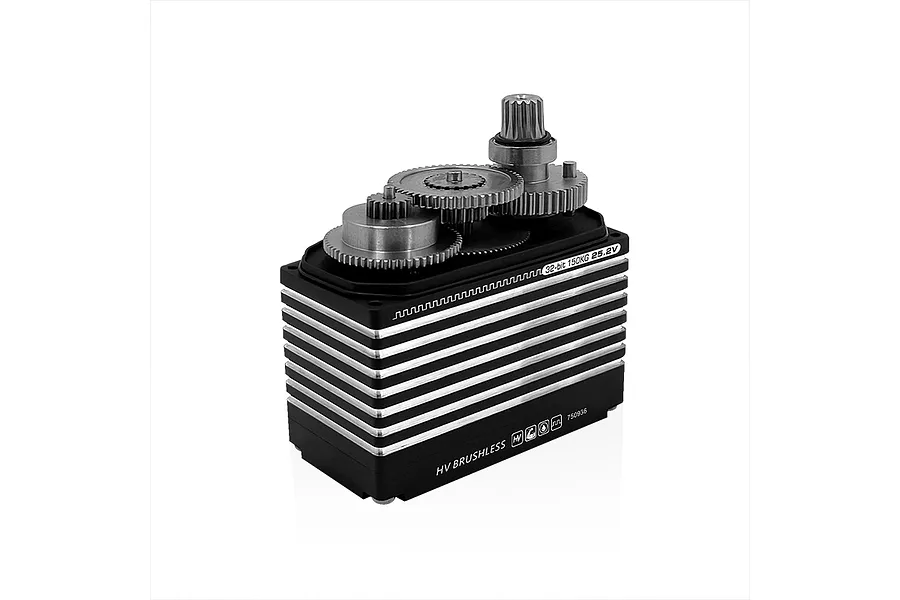

Full steel gear train to handle extreme loads and impacts
Full aluminium case provides durability and helps with cooling
Ultra High Voltage (UHV) compatible from 16.8V to 25.2V (4S-6S)
Genuine Power HD Product
Torque(16.8V): 100.0 kg-cm (1388.7 oz-in)
Torque(21.0V): 122.0 kg-cm (1694.3 oz-in)
Torque(25.2V): 150.0 kg-cm (2083.1 oz-in)
Speed: 0.13 sec (16.8V)
Speed: 0.11 sec (21.0V)
Speed: 0.09 sec (25.2V)
Operating Voltage: 16.8V - 25.2V
Weight: 213 g (7.51 oz)
Horn Gear Spline: 15T
Motor Type: Brushless Motor
Gear Type: Hardened Steel
Operating Temperature: -10℃~60℃
Refresh Rate: 333Hz
1x Power HD WB-150KG 1/5 Scale Brushless Servo
1x Servo Horn Set
-
Height (A)
- 62.4mm
-
Body Length (B)
- 59.5mm
-
Bottom to Under Mount (C)
- 41mm
-
Top to Under Mount (D)
- 13.4mm
-
Length (E)
- 75.4mm
-
Width (F)
- 29.5mm
-
SizeConventionally sized servo names
- 1/5
-
Gear Material
- Steel
-
Waterproof Casing
- Yes
-
Servo Spline Count
- 15Tooth
-
Input Voltage Range
- 16.8V, 21V, 25.2V
-
16.8V Sec/60 Degrees
- 0.13
-
16.8V Torque kg/cm
- 100
-
21V Torque kg/cm
- 122
-
21V Sec/60 Degrees
- 0.11
-
25.2V Torque kg/cm
- 150
-
25.2V Sec/60 Degrees
- 0.09
-
Signal Type
- Digital
-
Drive Motor Type
- Brushless
-
Case Material
- Aluminium
-
Rotational Degrees
- 180°
