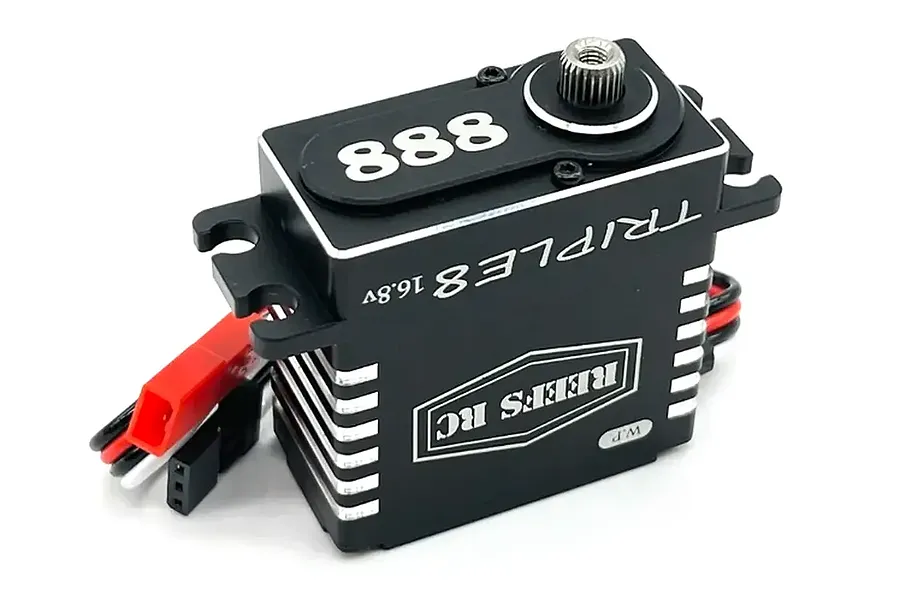

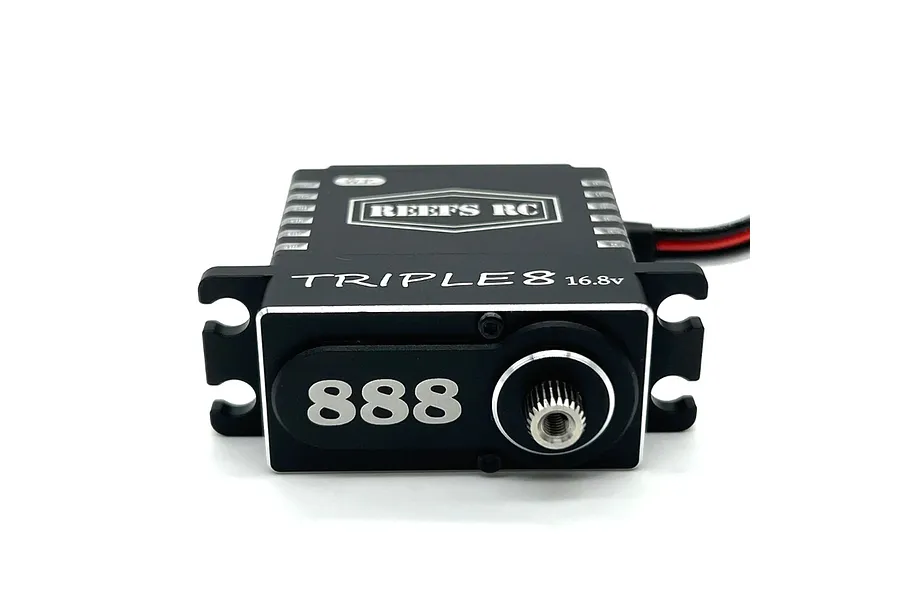

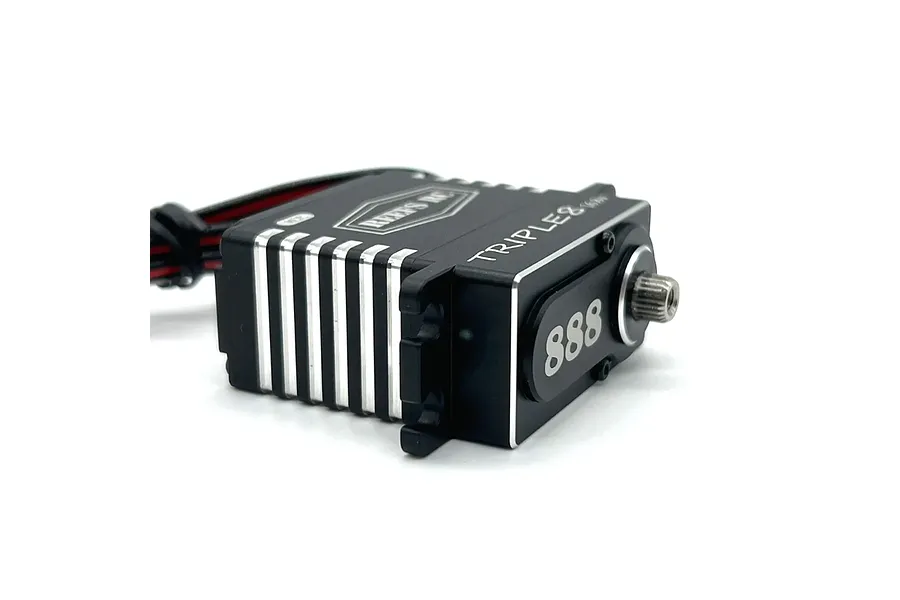

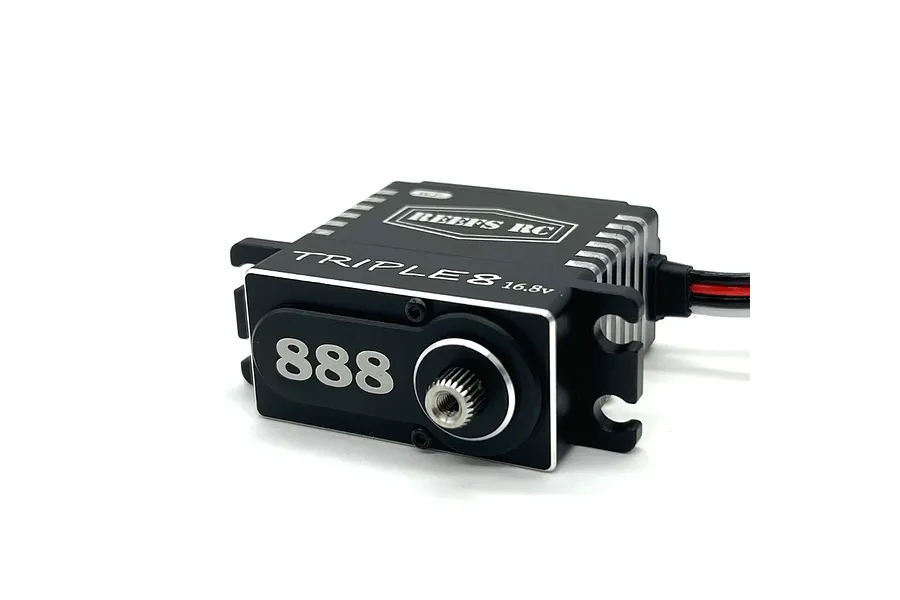

Reefs RC Aluminium TRIPLE8 Standard 66kg 16.8V Direct Power Brushless Metal Gear Servo - Black

  • Brushless

Part no. REEFS124

Sold out5.0
1 review
1 / 5
1 / 5

$289.99

or 4 fortnightly payments of $72.50 with afterpay

Reefs RC TRIPLE 8 4S Direct Power 66kg RC Servo: High torque, high speed, and waterproof.

  • High torque and speed for superior performance
  • Strong torque @ 66.1 kg-cm and fast speed of 0.09 sec @ 16.8V
  • Submarine waterproof with 7-point seals
  • Magnetic angle sensor for precise control
  • Durable steel gears and CNC aluminium casing

In stock now: similar

Overview

The Reefs RC TRIPLE 8 4S Direct Power Servo is a top-tier choice for RC enthusiasts seeking high performance and reliability. This servo boasts impressive torque and speed, making it ideal for demanding applications. With a voltage range of 12V to 16.8V, it delivers consistent power and performance across various conditions.

Designed with durability in mind, the TRIPLE 8 features steel gears and a CNC aluminium casing, ensuring it can withstand rigorous use. The submarine waterproof design with 7-point seals provides excellent protection against water and dust, making it suitable for all-terrain adventures. Additionally, the magnetic angle sensor and pulse width modulation control offer precise and responsive control, enhancing the overall driving experience. Whether you're a seasoned RC hobbyist or a newcomer, the Reefs RC TRIPLE 8 is a reliable and powerful addition to your RC setup.

Note

Consult the manual for waterproof standards and maintenance

Features

  • High torque and speed brushless servo
  • Strong torque @ 66.1 kg-cm (917 oz-in) and fast speed of 0.09 sec @ 16.8V
  • Submarine waterproof with 7-point seals
  • Magnetic angle sensor for precise control
  • Pulse width modulation control
  • Voltage range: 12V - 16.8V
  • No mechanical angle limit
  • Steel gears and CNC aluminium casing
  • 3 ball bearings for smooth operation
  • 22AWG wires
  • Genuine Reefs RC product

In the box

  • 1x Reefs RC TRIPLE 8 4S Direct Power Servo

Specifications

Torque(12.0V)46.1 kg-cm (640 oz-in)
Torque(14.4V)55.2 kg-cm (765 oz-in)
Torque(16.0V)62.0 kg-cm (860 oz-in)
Torque(16.8V)66.1 kg-cm (917 oz-in)
Speed0.13 sec (12.0V), 0.11 sec (14.4V), 0.10 sec (16.0V), 0.09 sec (16.8V)
Operating Voltage12V - 16.8V
Weight88.5g (3.12oz)
Bearing Type3 Ball Bearings
Motor TypeBrushless Motor
Gear TypeSteel Gears

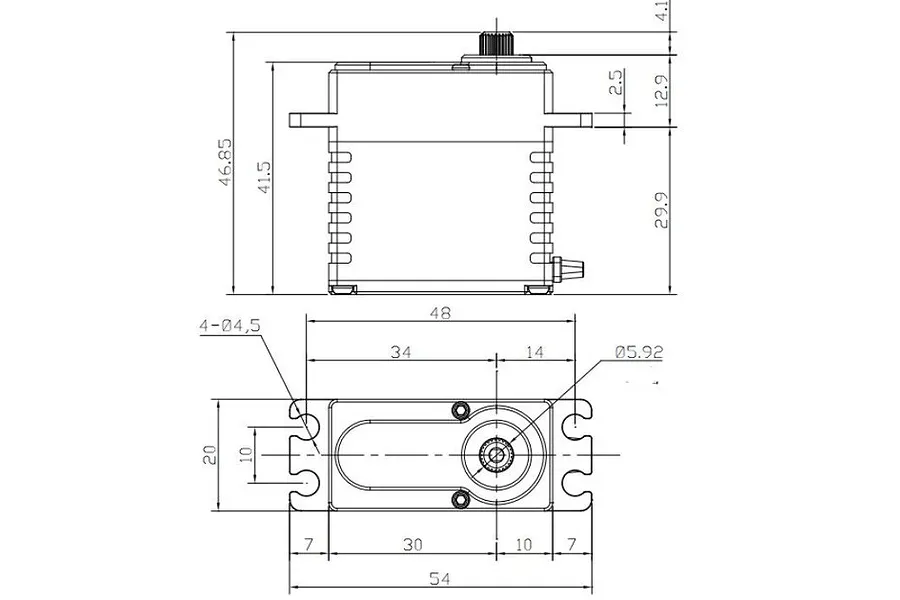

Size40x20x41.5mm (1.57x0.78x1.63")

Servo

SizeConventionally sized servo namesStandard
Gear MaterialSteel
Servo Spline Count25Tooth
Waterproof CasingYes
Input Voltage Range12V, 14.4V, 16V, 16.8V
Case MaterialAluminium
Drive Motor TypeBrushless
Rotational Degrees120° (Normal)
12V Torque kg/cm48
12V Sec/60 Degrees0.13
Signal TypeDigital
