Reefs RC Brass TRIPLE7 Standard 56kg 14V Brushless Metal Gear Servo - Brass
- Brushless
Part no. REEFS169
3+ in stockWrite a review
$299.99
or 4 fortnightly payments of $75.00 with afterpay
Reefs RC Triple7 Brass Edition 56.0kg RC Servo: High torque, high speed, and waterproof.
- High torque of 56.0 kg-cm
- Submarine waterproof with magnetic angle sensor
- Fully programmable with Reefs RC software
- Durable steel gears and CNC brass casing with ULTRA finish
- Suitable for high-performance RC vehicles
3+ in stock · Ships Wednesday · order by Wednesday
Checking delivery dates…
60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·
Overview
The Reefs RC Triple7 Brass Edition Servo is a top-tier choice for RC enthusiasts seeking high performance and reliability. This direct power brushless servo offers exceptional torque and speed, making it ideal for demanding applications. With a voltage range of 10V to 14V, it delivers consistent power and performance across various conditions.
Designed with durability in mind, the Triple7 Brass Edition features steel gears and a CNC brass casing with an ULTRA finish, ensuring it can withstand rigorous use. The submarine waterproof design with 7-point seals provides excellent protection against water and dust, making it suitable for all-terrain adventures. Additionally, the magnetic angle sensor and pulse width modulation control offer precise and responsive control, enhancing the overall driving experience. Fully programmable with Reefs RC software, this servo allows for customisation to meet specific needs. Whether you're a seasoned RC hobbyist or a newcomer, the Reefs RC Triple7 Brass Edition is a powerful and reliable addition to your RC setup.
Note
BEC is not required but recommended for maximum performance
Reefs RC LINK required for programming
Maximum input voltage of 14 volts
Use an M3x8mm max screw size for servo horn
Do not leave servo plugged into battery when not in use to avoid battery pack damage due to over-discharge
Consult the manual for waterproof standards and maintenance
Features
- High torque and speed brushless servo
- Strong torque @ 56.0 kg-cm (777 oz-in) and fast speed of 0.08 sec @ 14V
- Submarine waterproof with magnetic angle sensor
- Fully programmable with Reefs RC software
- Pulse width modulation control
- Voltage range: 10V - 14V
- Steel gears and CNC brass casing with ULTRA finish
- 3 ball bearings for smooth operation
- 22AWG wires
- Genuine Reefs RC product
In the box
- 1x Reefs RC Triple7 Brass Edition Servo
Specifications
| Torque(11.1V) | 48.0 kg-cm (666 oz-in) |
|---|---|
| Torque(12.0V) | 50.4 kg-cm (700 oz-in) |
| Torque(14.0V) | 56.0 kg-cm (777 oz-in) |
| Speed | 0.10 sec (11.1V), 0.09 sec (12.0V), 0.08 sec (14.0V) |
| Operating Voltage | 10V - 14V |
| Weight | 160g (5.65oz) |
| Bearing Type | 3 Ball Bearings |
| Motor Type | Brushless Motor |
| Gear Type | Steel Gears |

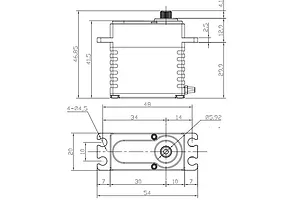

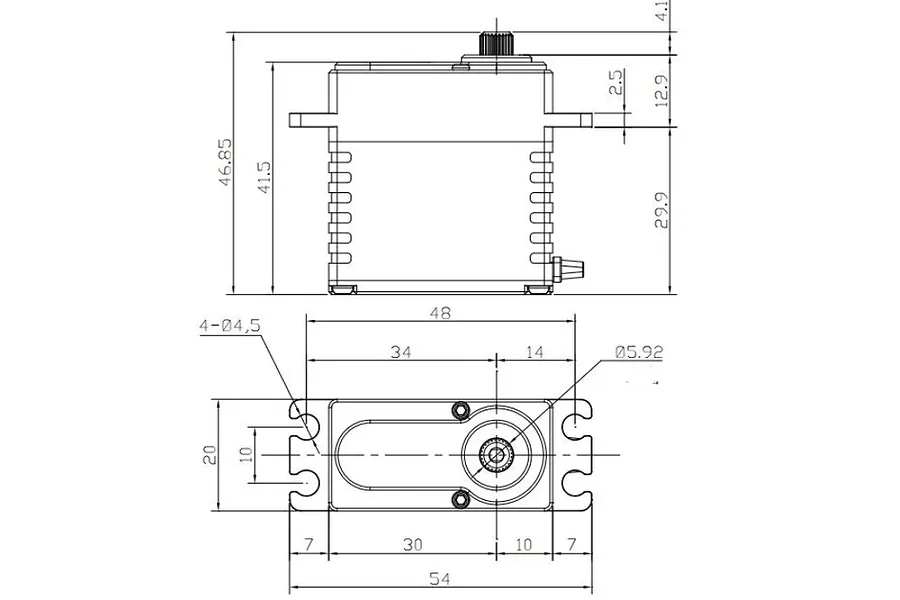

| Size | 40x20x41.5mm (1.57x0.78x1.63") |
Servo
| Size | Standard |
|---|---|
| Gear Material | Steel |
| Servo Spline Count | 25Tooth |
| Waterproof Casing | Yes |
| Input Voltage Range | 11V, 12V |
| Case Material | Brass |
| Drive Motor Type | Brushless |
| Rotational Degrees | 120° (Normal) |
| 11V Torque kg/cm | 48 |
| 11V Sec/60 Degrees | 0.10 |
| 12V Torque kg/cm | 50 |
| 12V Sec/60 Degrees | 0.09 |
| Signal Type | Digital |
