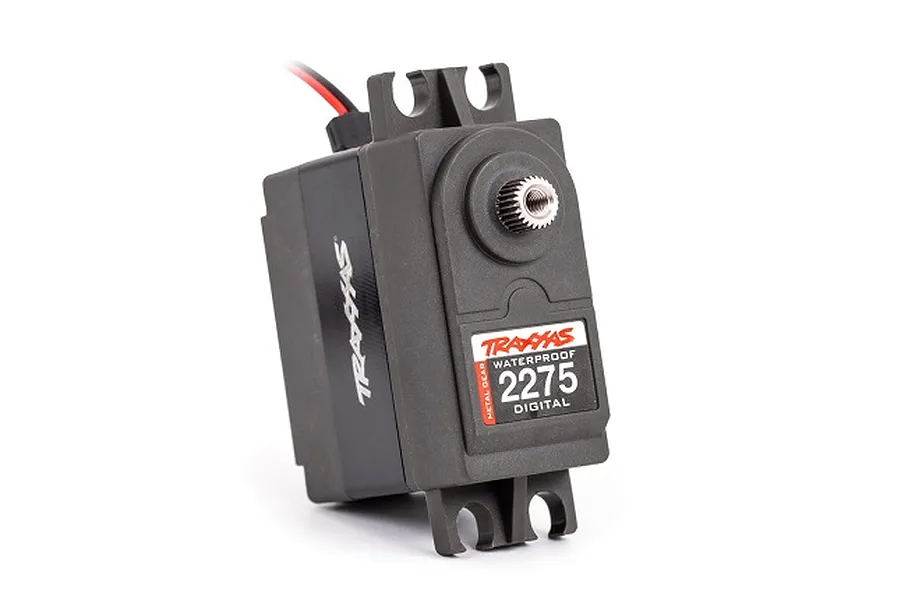

Traxxas 2275 Standard 35kg 7.4v High-Torque Metal Geared Brushless Servo
Videos
Traxxas 2275 Standard 35kg 7.4v High-Torque Metal Geared Brushless Servo
The waterproof, high-torque 2275 servo puts out an incredible 347 oz-in of torque with full metal gears and a heat-dissipating aluminium centre case. This high-power servo is a massive upgrade over standard 1/10 scale servos for extreme applications.
FeaturesWaterproof sealed case with O-Ring
Full ball bearings
Heavy duty Steel gears
In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.
SpecificationsTorque(6.0V): 25kg-cm (347oz/in)
Torque(7.4V): 35kg-cm (486oz/in)
Speed: 0.16 sec (6v)
Operating Voltage: 7.4v
Bearing Type: Ball
Gear Type: Metal
Size: 55x44.5x20mm (2.16x1.77x0.78")
| Description | QTY |
|---|---|
| High-Torque Digital Metal Gear Servo | 1 |
-
Servo Spline Count
- 25Tooth
-
Rotational Degrees
- 120° (Normal)
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.16
-
Signal Type
- Digital
-
Case Material
- Metal/Plastic
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 35
-
Gear Material
- Steel
-
Waterproof Casing
- Yes
-
Drive Motor Type
- Brushless
-
SizeConventionally sized servo names
- Standard
