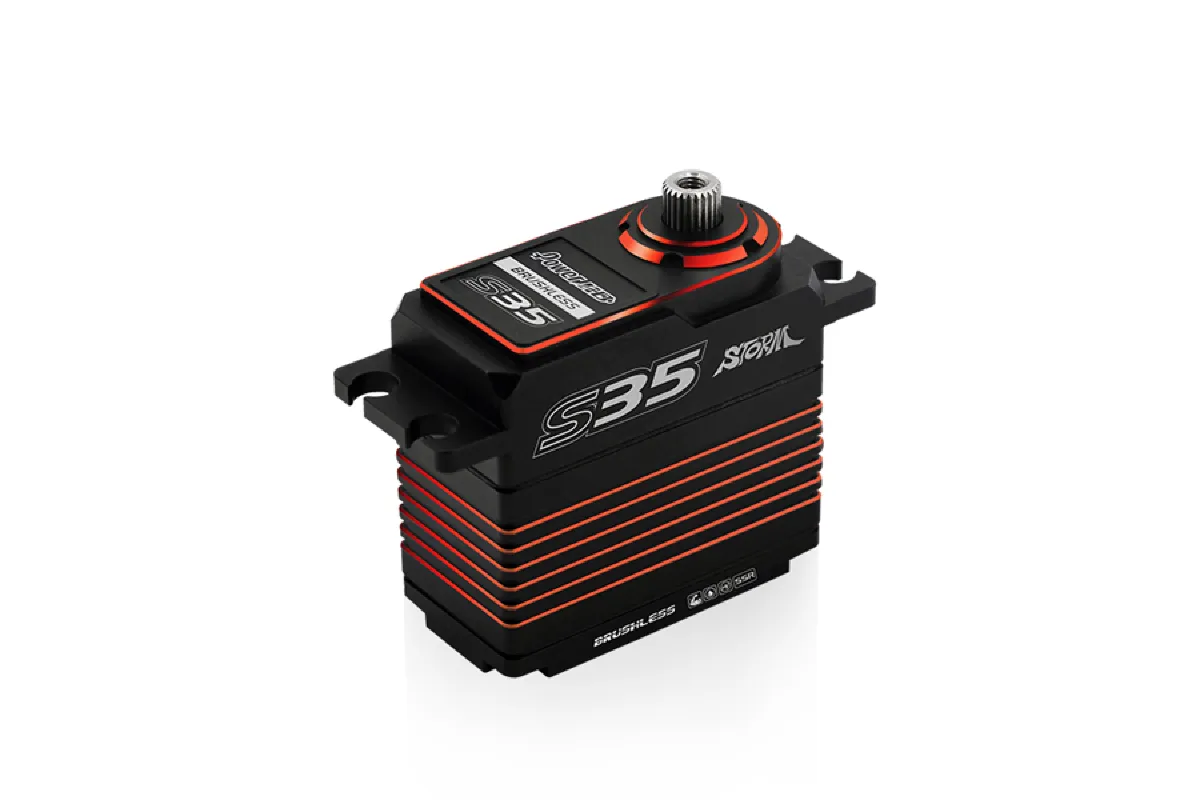

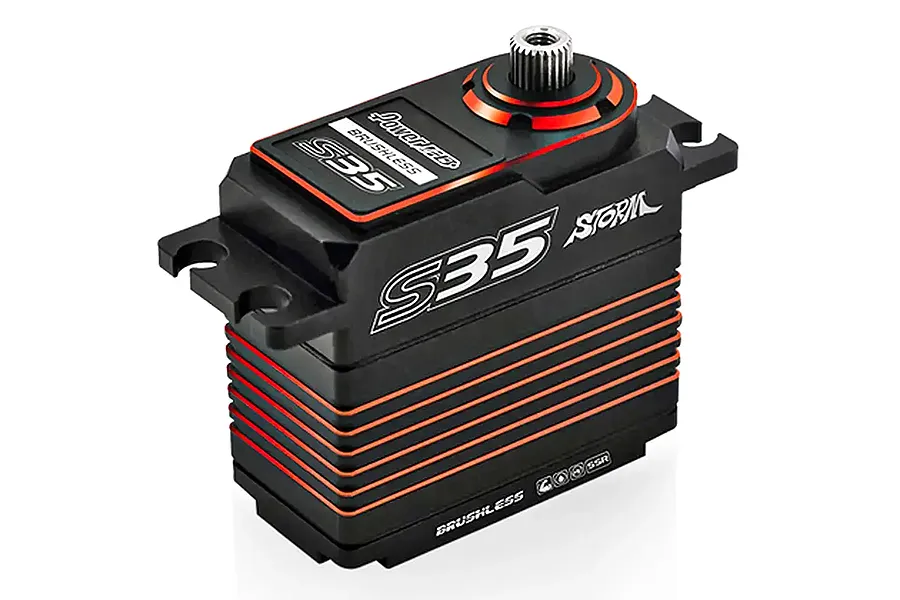

Power HD Storm S35 Standard HV Brushless 35kg 8.4v Metal Geared Servo - Red Edition

Power HD Storm S35 Standard HV Brushless 35kg 8.4v Metal Geared Servo - Red Edition image 56652

Power HD Storm S35 Standard HV Brushless 35kg 8.4v Metal Geared Servo - Red Edition image 56653

Videos

Power HD Storm S35 Standard HV Brushless 35kg 8.4v Metal Geared Servo - Red Edition

Brand: Power HD | SKU: S35A

3 in stock

write a review

$188.35

Pay later with

Shop replacement & upgrade parts for this model

Shop Parts

Recommended Products

Power HD Servo Glitch Buster Receiver Capacitor

2 reviews

$7.26

Power HD Black Aluminium 25T Servo Horn

3 reviews

$8.62

Description

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

The Power HD S range has been specially designed for the high demands required in all classes of racing including 1/10 & 1/8th off road. The latest technology allows these new servo's to operate in SSR mode (Super Speed Response) allowing a natural feel and instant feedback on track. The new design has more accurately machined gears than ever before, offering more precision and reliability to meet the ever increasing demands of the competition racing market.

Features

Full CNC Machined metal high-grade oxygen shell

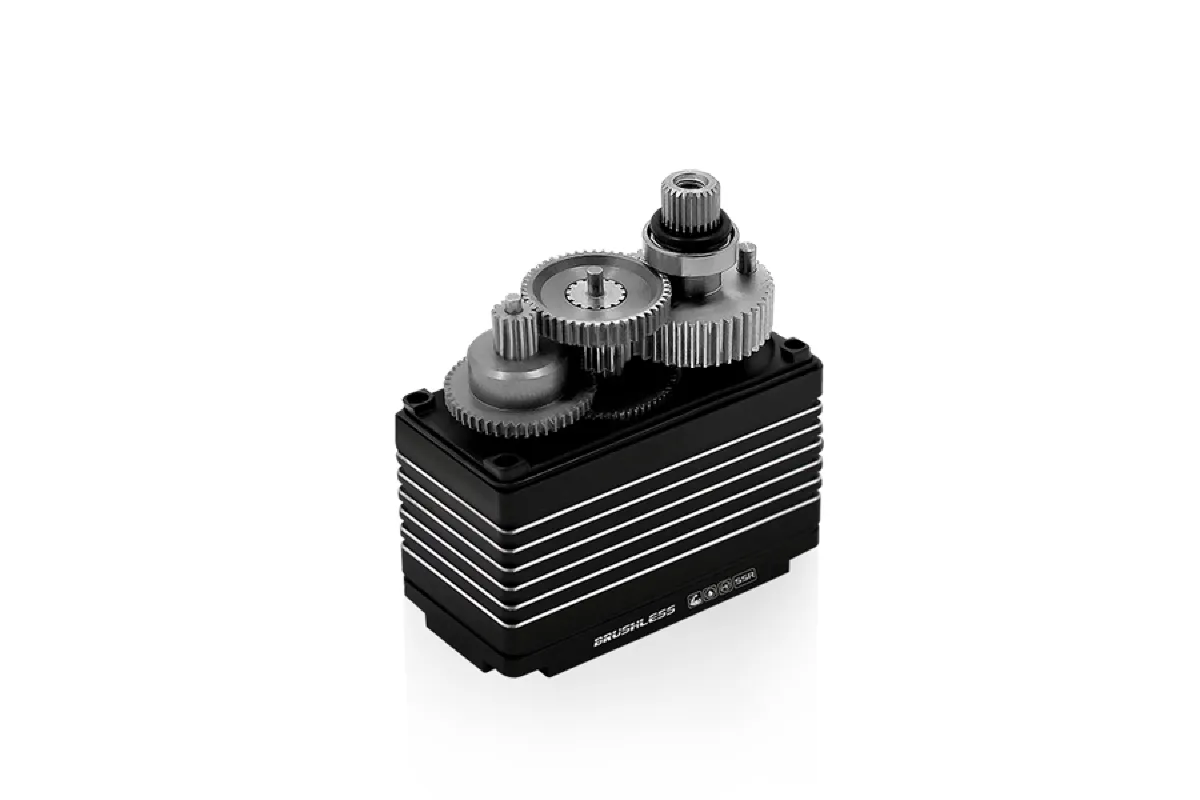

7075+303 Titanium & Steel gearing
Japan NOBLE potentiometer
High pressure brushless
compatible with 6.0-8.4v voltage
Upgraded PCB, support SSR, SUR super high speed mode

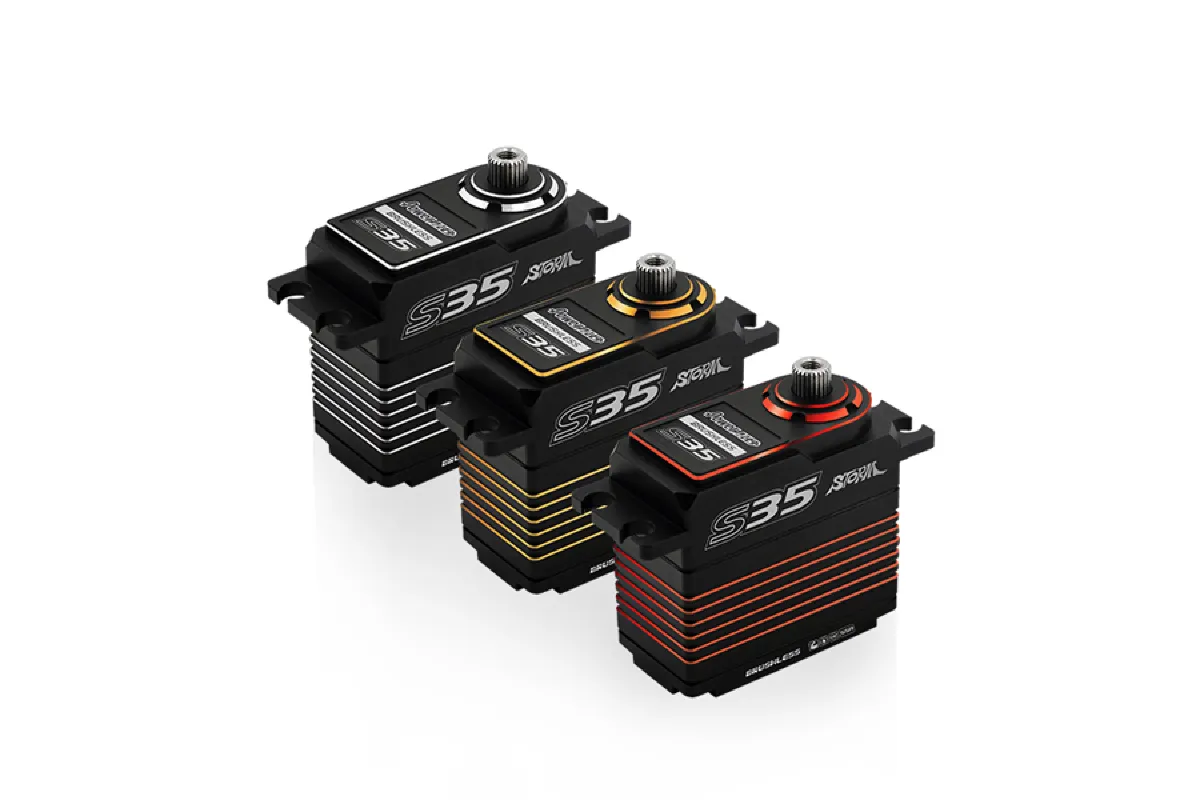

Available in two-toned anodised Silver, Red & Gold colours

Specifications

Torque(6.0V): 26.0 kg-cm (361.1 oz/in)
Torque(7.4V): 30.0 kg-cm (416.6 oz/in)
Torque(8.4V): 35.0 kg-cm (486.1 oz/in)
Speed: 0.095 sec (6.0V) ? 0.075 sec (7.4V) ? 0.070 sec (8.4V)
Operating Voltage?6.0 ~ 8.4 DC Volts
Weight: 75.0 g (2.65 oz)
Bearing Type?Ball Bearing x 2
Motor Type?Brushless Motor
Gear Type?Titanium & Steel
Operating Temperature: -20?~60?
Working frequency?1520?s / 333hz
Size?40.7 x 20.5 x 38.6 mm ( 1.60 x 0.81 x 1.52 in)

Learn how to install a steering servo correctly to increase steering performance, and avoid stripping your servo gears out.

Power HD S35 HV Brushless Servo Specifications

Total Height (A) = 44.5mm
Body Width (B) = 40.5mm
Below Mount (C) = 28.3mm
Above Mount (D) = 16.2mm
Total Length (E) = 54.4mm
Total Width (F) = 20.1mm

Specifications

Servo

Top to Under Mount: 16.2mm
Total Length: 54.4mm
Body Length: 40.5mm
Bottom to Under Mount: 28.3mm
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.095
Total Height: 44.5mm
Case Material: Aluminium
Drive Motor Type: Brushless
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 35
Signal Type: Digital
Gear Material: Steel, Titanium
Waterproof Casing: No
Total Width: 20.1mm
Rotational Degrees: 120° (Normal)
Servo Spline Count: 25Tooth
Size Conventionally sized servo names: Standard
