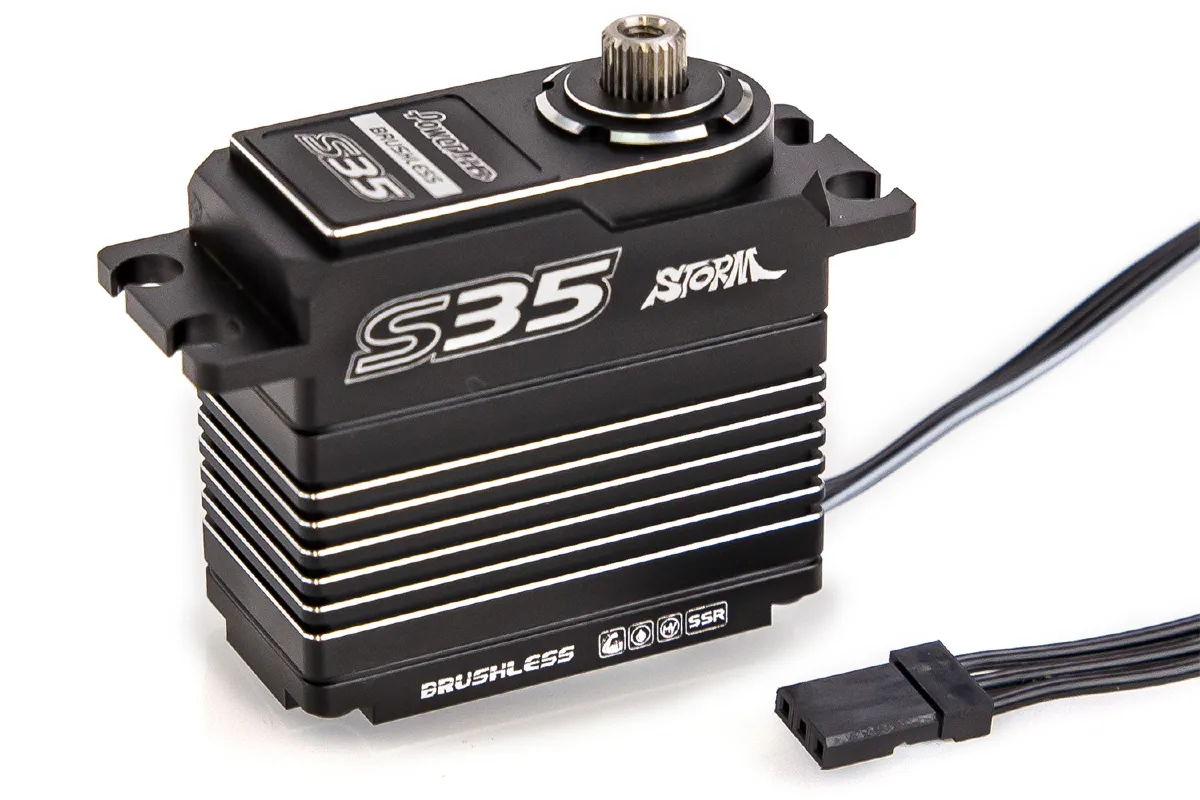

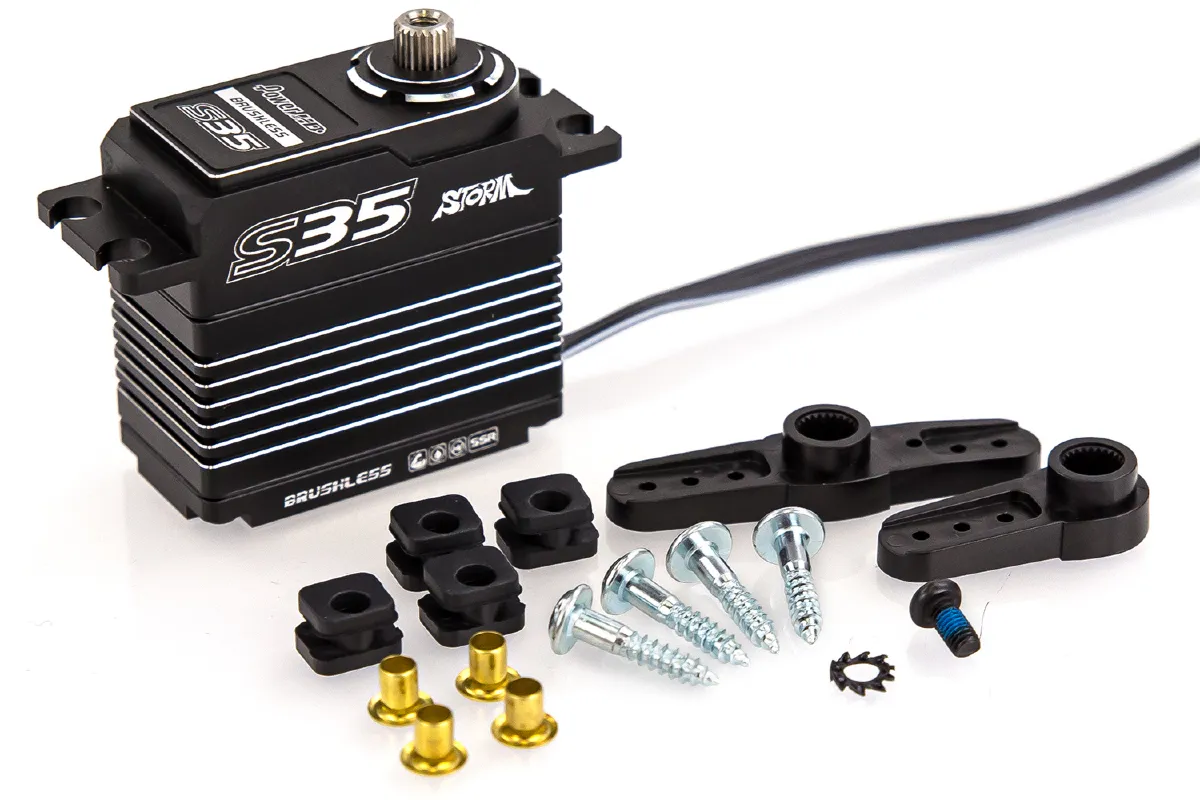

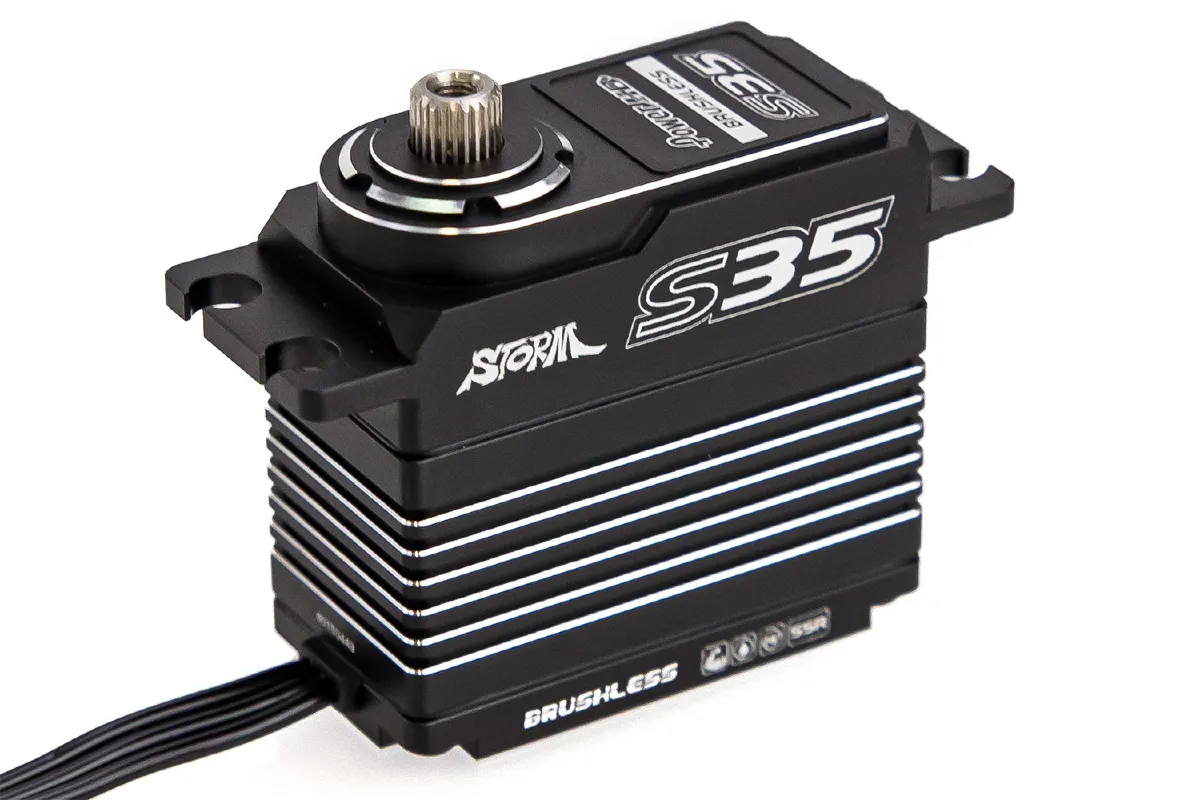

Power HD Storm S35 Standard Brushless 35kg 8.4v Metal Geared Servo

Power HD Storm S35 Standard Brushless 35kg 8.4v Metal Geared Servo

Videos

Power HD Storm S35 Standard Brushless 35kg 8.4v Metal Geared Servo

Brand: Power HD | MPN: S35
3+ in stock
5.0
2 reviews
$189.30
or 4 fortnightly payments of $47.32 with Afterpay

Power HD Storm S35 standard brushless servo — 35kg at 8.4V, SSR/SUR mode, Titanium & Steel gears, 6.0–8.4V compatible.

  • Standard size brushless servo for 1/10 & 1/8th off road racing
  • 35.0kg torque at 8.4V with 7075+303 Titanium & Steel gears
  • SSR/SUR super high speed mode via upgraded PCB
  • Compatible with 6.0–8.4V voltage range
  • Japan NOBLE potentiometer for precision
Add to Wishlist
Pay later with
Afterpay Zip Paypal
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Shop replacement & upgrade parts for this model
Shop Parts
Description

The Power HD S range has been specially designed for the high demands required in all classes of racing including 1/10 & 1/8th off road. The latest technology allows these servos to operate in SSR mode (Super Speed Response) allowing a natural feel and instant feedback on track. The new design has more accurately machined gears than ever before, offering more precision and reliability to meet the ever increasing demands of the competition racing market.

Features
  • Full CNC Machined metal high-grade oxygen shell
  • 7075+303 Titanium & Steel gearing
  • Japan NOBLE potentiometer
  • High pressure brushless
  • Compatible with 6.0–8.4v voltage
  • Upgraded PCB, support SSR, SUR super high speed mode
  • Available in two-toned anodised Silver, Red & Gold colours
Note

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience brown-outs where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver. However, in some cases, you may need to install an external BEC.

Videos
Specifications
Torque (6.0V)
26.0 kg-cm (361.1 oz/in)
Torque (7.4V)
30.0 kg-cm (416.6 oz/in)
Torque (8.4V)
35.0 kg-cm (486.1 oz/in)
Speed
0.095 sec (6.0V) / 0.075 sec (7.4V) / 0.070 sec (8.4V)
Operating Voltage
6.0–8.4 DC Volts
Weight
75.0 g (2.65 oz)
Bearing Type
Ball Bearing x 2
Motor Type
Brushless Motor
Gear Type
Titanium & Steel
Operating Temperature
-20°–60°
Working Frequency
1520µs / 333Hz
Size
40.7 x 20.5 x 38.6 mm (1.60 x 0.81 x 1.52 in)
Total Height (A)
44.5mm
Body Width (B)
40.5mm
Below Mount (C)
28.3mm
Above Mount (D)
16.2mm
Total Length (E)
54.4mm
Total Width (F)
20.1mm

Servo
Servo
Height (A)
44.5mm
Body Length (B)
40.5mm
Bottom to Under Mount (C)
28.3mm
Top to Under Mount (D)
16.6mm
Length (E)
54.4mm
Width (F)
20.1mm
Size
Conventionally sized servo names
Standard
Gear Material
Titanium, Steel
Waterproof Casing
No
Servo Spline Count
25Tooth
6V Torque kg/cm
Kilograms of torque at 25mm away from the center of the spline
35
6V Sec/60 Degrees
Seconds per 60 degrees of rotation
0.095
Signal Type
Digital
Drive Motor Type
Brushless
Case Material
Metal
Rotational Degrees
120° (Normal)
