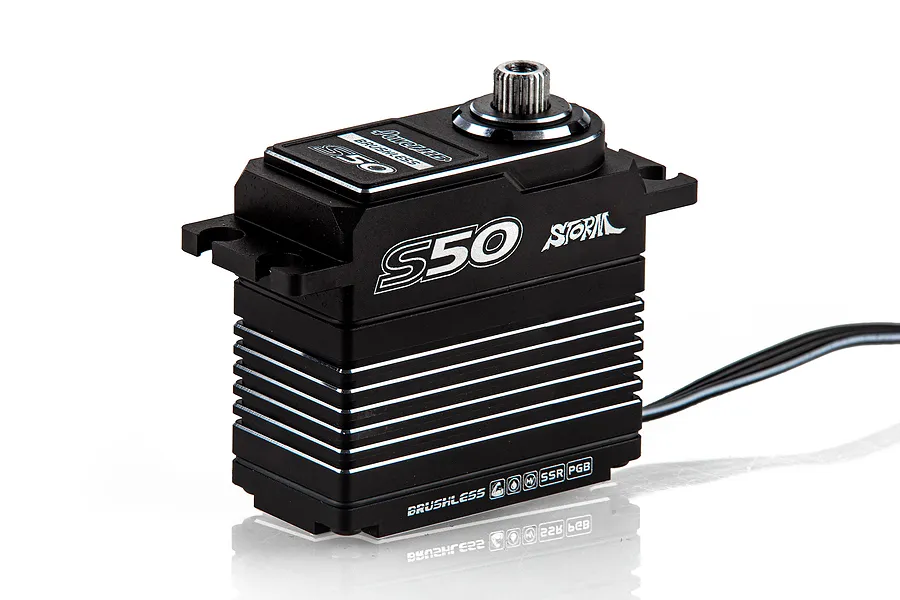

Power HD Storm S50 Standard Brushless 50kg 8.4v Metal Geared Servo
Videos
Power HD Storm S50 Standard Brushless 50kg 8.4v Metal Geared Servo
Brand:
Power HD
|
MPN: S50
$184.92
or 4 fortnightly payments of $46.23 with
Power HD Storm S50 brushless 50kg servo with titanium and steel gears. Standard size, compatible 6.0–8.4V.
- 50kg-cm of torque at 8.4V
- Brushless motor
- Titanium & Steel gear train
- Dual ball bearings
- Compatible 6.0 ~ 8.4V DC
Pay later with
Want more than 1?
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Recommended Products
Description
Power HD Storm S50 Standard Brushless 50kg 8.4V Metal Geared Servo.
Included Items
- 1x Storm S50 Standard Brushless 50kg 8.4v Metal Geared Servo
- 1x Hardware Set
- 1x Decal Sheet
Note
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience brown-outs where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Videos
Specifications
-
Torque (6.0V)
- 38.0 kg-cm (527.7 oz/in)
-
Torque (7.4V)
- 45.0 kg-cm (624.9 oz/in)
-
Torque (8.4V)
- 50.0 kg-cm (694.4 oz/in)
-
Speed
- 0.15 sec (6.0V) / 0.12 sec (7.4V) / 0.10 sec (8.4V)
-
Operating Voltage
- 6.0 ~ 8.4V DC
-
Weight
- 75.0 g (2.65 oz)
-
Bearing Type
- Ball Bearing x 2
-
Motor Type
- Brushless Motor
-
Gear Type
- Titanium & Steel
-
Operating Temperature
- -20°C ~ 60°C
-
Working Frequency
- 1520µs / 333hz
-
Size
- 40.7 x 20.5 x 38.6 mm (1.60 x 0.81 x 1.52 in)
-
Total Height (A)
- 44mm
-
Body Width (B)
- 40.7mm
-
Below Mount (C)
- 29mm
-
Above Mount (D)
- 15mm
-
Total Length (E)
- 54.2mm
-
Total Width (F)
- 20mm
Servo
-
Height (A)
- 44mm
-
Body Length (B)
- 40.7mm
-
Bottom to Under Mount (C)
- 29mm
-
Top to Under Mount (D)
- 15mm
-
Length (E)
- 54.2mm
-
Width (F)
- 20mm
-
SizeConventionally sized servo names
- Standard
-
Gear Material
- Titanium & Steel
-
Waterproof Casing
- Yes
-
Servo Spline Count
- 25Tooth
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 50
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.15
-
Signal Type
- Digital
-
Drive Motor Type
- Brushless
-
Case Material
- Metal
Reviews
(1)
5 out of 5 stars
5 years ago
Kurt
R
Best servo I've ever owned! I would highly recommend this servo to anyone that is sick & tired of busting cheap servos. Very strong & very quick. Very impressive even running on 6.0v. I have all my servos running on 7.4v now so it is even better. Super quiet being brushless & very smooth not jittery at all.
