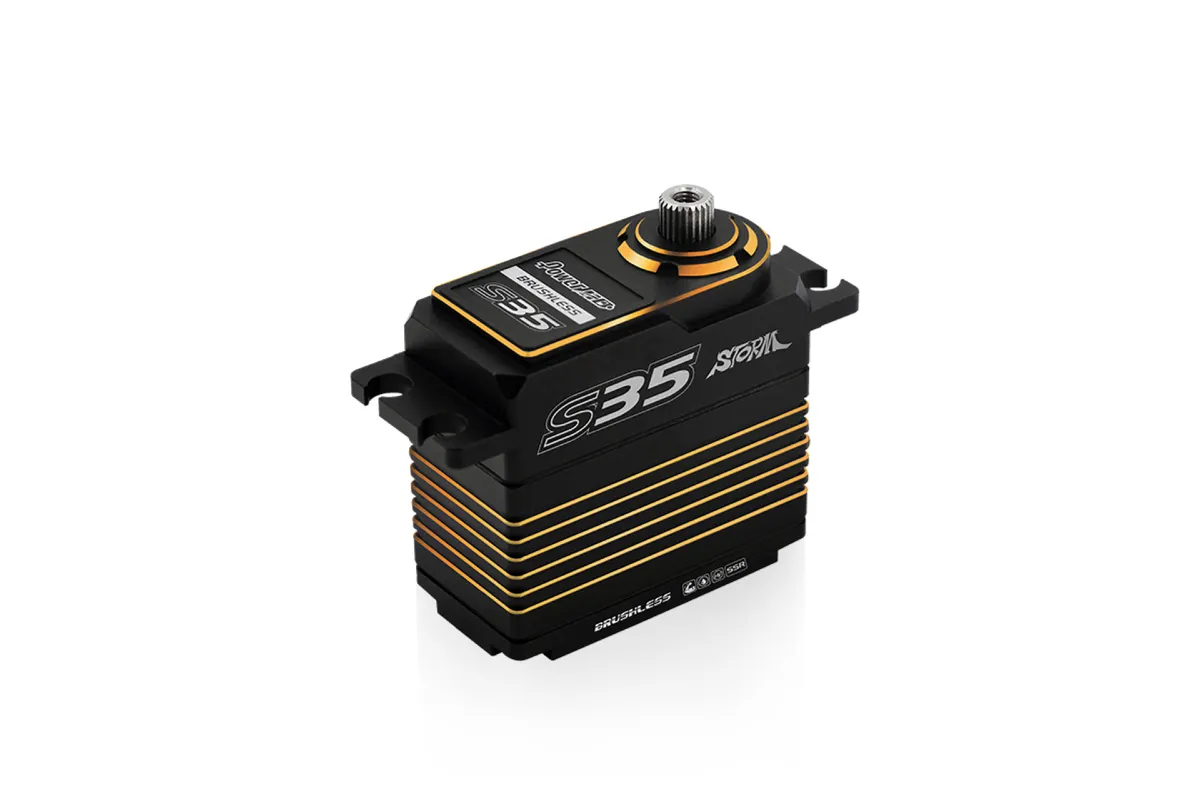

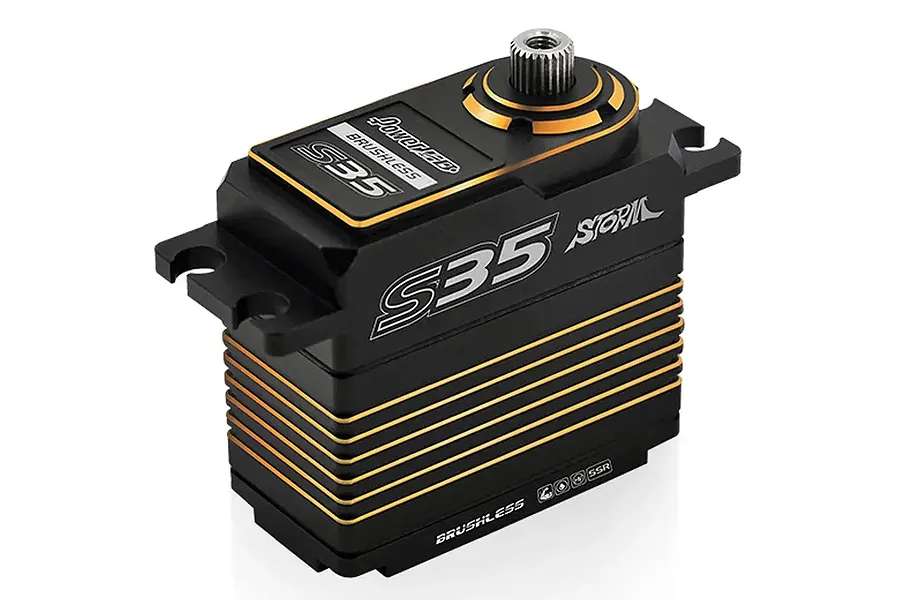

Name: Power HD Storm S35 Standard HV Brushless 35kg 8.4v Metal Geared Servo - Gold Edition
Brand: Power HD Servos for RC Cars
SKU: POW-S35B
Price: 195.78 AUD
Availability: InStock
Rating: 4.666666666666667 (3 reviews)

Recommended Products

Power HD Black Aluminium 25T Servo Horn

5 reviews

$8.62

Power HD Servo Glitch Buster Receiver Capacitor

3 reviews

$7.26

Description

The Power HD S range has been specially designed for the high demands required in all classes of racing including 1/10 and 1/8th off-road. The latest technology allows these servos to operate in SSR mode (Super Speed Response), allowing a natural feel and instant feedback on track. The new design features more accurately machined gears than ever before, offering more precision and reliability to meet the ever-increasing demands of the competition racing market.

Note: Servos are powered by the ESC's output to the receiver. If you are using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience brown-outs where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver to smooth the current delivery. However, in some cases, you may need to install an external BEC.

Features

Full CNC machined metal high-grade aluminium shell
7075+303 Titanium & Steel gearing
Japan NOBLE potentiometer
High pressure brushless motor
Compatible with 6.0–8.4V voltage
Upgraded PCB — supports SSR and SUR super high speed mode
Available in two-toned anodised Silver, Red & Gold colours

Included Items

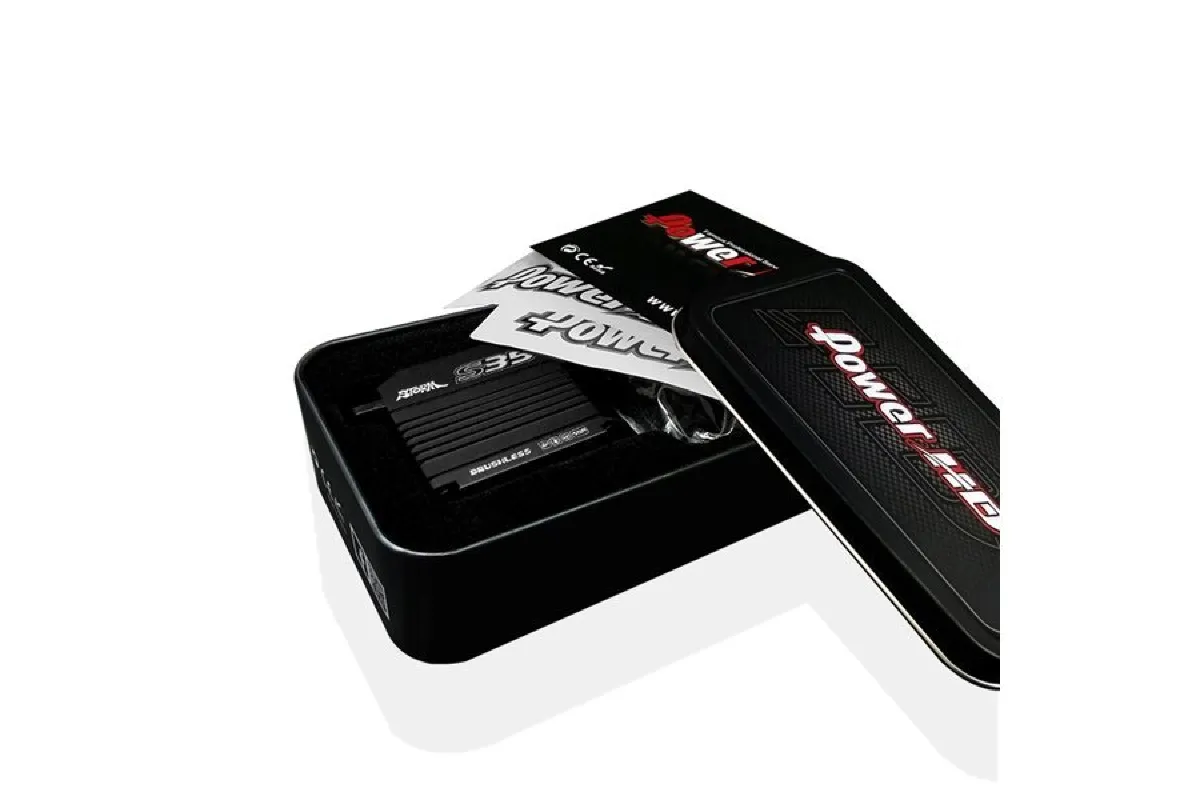

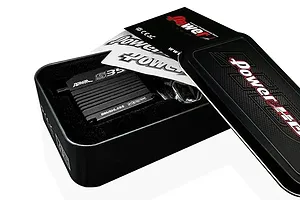

1x Power HD Storm S35 Standard HV Brushless 35kg 8.4V Metal Geared Servo – Gold Edition

Videos

Specifications

Torque (6.0V): 26.0 kg-cm (361.1 oz/in)
Torque (7.4V): 30.0 kg-cm (416.6 oz/in)
Torque (8.4V): 35.0 kg-cm (486.1 oz/in)
Speed: 0.095 sec (6.0V) / 0.075 sec (7.4V) / 0.070 sec (8.4V)
Operating Voltage: 6.0–8.4V DC
Weight: 75.0g (2.65 oz)
Bearing Type: Ball Bearing x 2
Motor Type: Brushless Motor
Gear Type: Titanium & Steel
Operating Temperature: -20°C ~ 60°C
Working Frequency: 1520μs / 333Hz
Size: 40.7 x 20.5 x 38.6mm (1.60 x 0.81 x 1.52 in)
Total Height (A): 44.5mm
Body Width (B): 40.5mm
Below Mount (C): 28.3mm
Above Mount (D): 16.2mm
Total Length (E): 54.4mm
Total Width (F): 20.1mm

Servo

Height (A): 44.5mm
Body Length (B): 40.5mm
Bottom to Under Mount (C): 28.3mm
Top to Under Mount (D): 16.2mm
Length (E): 54.4mm
Width (F): 20.1mm
Size Conventionally sized servo names: Standard
Gear Material: Titanium & Steel
Waterproof Casing: Yes
Servo Spline Count: 25Tooth
Input Voltage Range: 6V, 7.4V, 8.4V
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 26
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.095
7.4V Torque kg/cm: 30
7.4V Sec/60 Degrees: 0.075
8.4V Torque kg/cm: 35
8.4V Sec/60 Degrees: 0.070
Signal Type: Analog
Drive Motor Type: Brushless
Case Material: Aluminium
Rotational Degrees: 120° (Normal)
