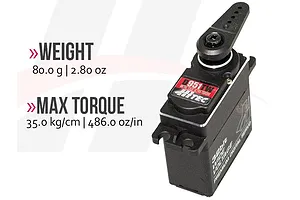

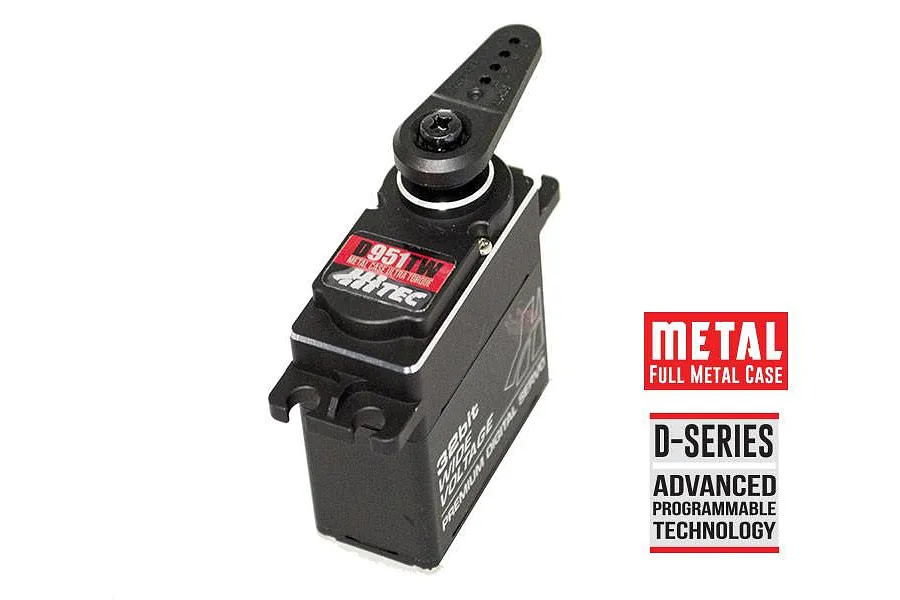

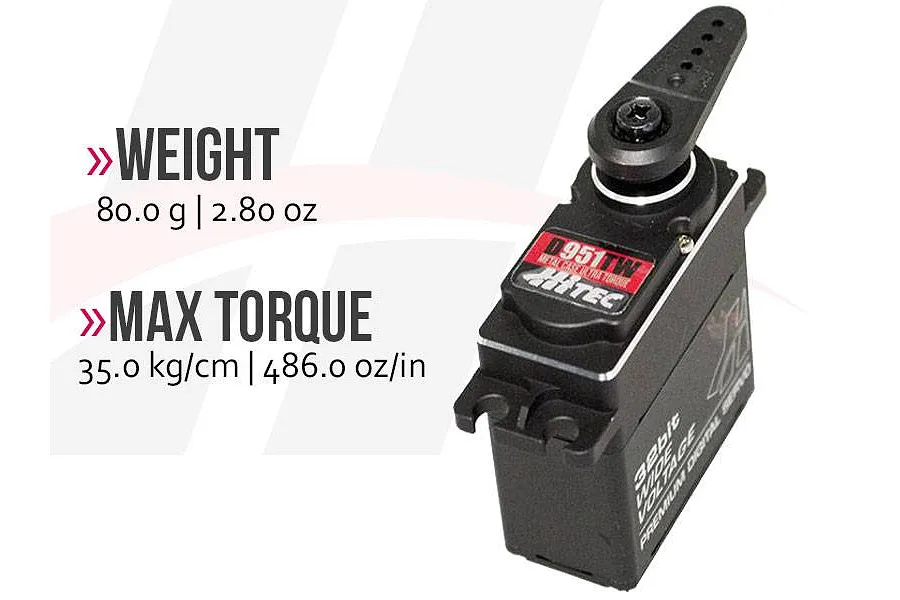

Hitec D951TW Standard 35kg 7.4v Titanium Geared Servo
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
D951TW 32-Bit, Metal Case, High Torque, Titanium Gear Servo
Hitec’s D-Series servo line sets new standards for advanced, programmable technology. Powered by our 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science, these powerhouses dominate the servo arena. Their potent combination of wide voltage capabilities, high resolution, rapid response, and patented Smart Sense technology brings maximum performance to all radio control applications. The members of this particular D-Series group are all designed with our extremely durable titanium gears, and the D941TW, D946TW, and D951TW trio boast full metal cases. When you demand ultimate reliability and unprecedented advanced engineering, look to the power of the D-Series servos!
- High Response Circuitry.
- Wide Voltage Capabilities.
- 32-Bit MCU Technology.
- Full Programmability.
- Smart Sense Technology for Servo Analytics.
- 25-Tooth Output Spline.
Programmable Features
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Soft Start Rate
- Overload Protection
- Data Save / Load
- Program Reset
- Operating Voltage Range (Volts DC): 4.8V ~ 6.0V ~ 7.4V
- Speed (Second @ 60°): 0.23 4.8V ~ 0.17 6.0V ~ 0.14 7.4V
- Maximum Torque Range kg / cm: 21.0 ~ 29.0 ~ 35.0kg/cm (292 ~ 403 ~ 486oz/in)
- Current Draw at Idle: 30 mA
- No Load Operating Current Draw: 500 mA
- Stall Current Draw: 6,200 mA
- Dead Band Width: 1 µs
- Dimensions: 40.0 x 20.0 x 38.0mm (1.57 x 0.79 x 1.50")
- Weight: 68.0g (2.4oz)
- Circuit Type: 32bit Programable Digital
- Motor Type: Coreless Metal Brush
- Gear Material: Titanium
- Bearing Type: Dual Ball Bearing
- Output Shaft (type / Ømm): H25T
- Case Material: Aluminium
- Dust / Water Resistance: Splash Proof
- Connector Gauge (AWG) / Strand Count: 20 / 80
In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.
Servo Dimensions
- Total Height (A) = 48mm
- Body Width (B) = 40mm
- Below Mount (C) = 27mm
- Above Mount (D) = 11mm
- Total Length (E) = 54mm
- Total Width (F) = 25mm
| Description | QTY |
|---|---|
| Hitec D951TW Standard 35kg 7.4v Titanium Geared Servo | 1 |
| Servo Horn Set | 1 |
| 3x11mm Fine Thread Cap Head Screw | 1 |
| Decal Sheets | 2 |
| Servo | |
|---|---|
| Size: | Standard |
| 6.0v Torque: | 35kg |
| 6.0v Speed: | 0.17s |
| Gear Material: | Titanium |
| Waterproof Casing: | Splash Proof |
| Servo Spline Count: | 25tooth |
| Signal Type: | Digital |
| Drive Motor Type: | Coreless |
| Case Material: | Aluminium |
| Total Height: | 48mm |
| Body Length: | 40mm |
| Bottom to Under Mount: | 27mm |
| Top to Under Mount: | 11mm |
| Total Length: | 54mm |
| Total Width: | 25mm |
