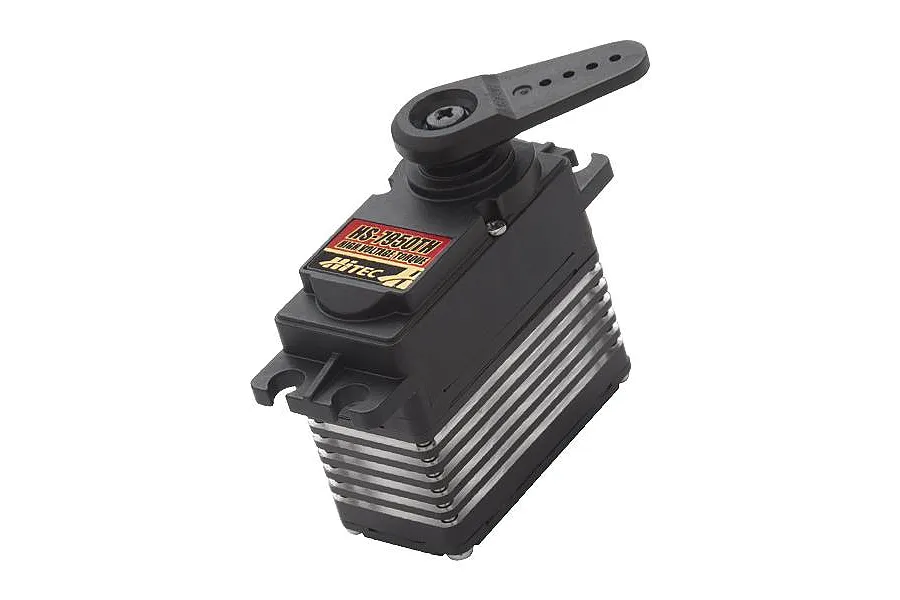

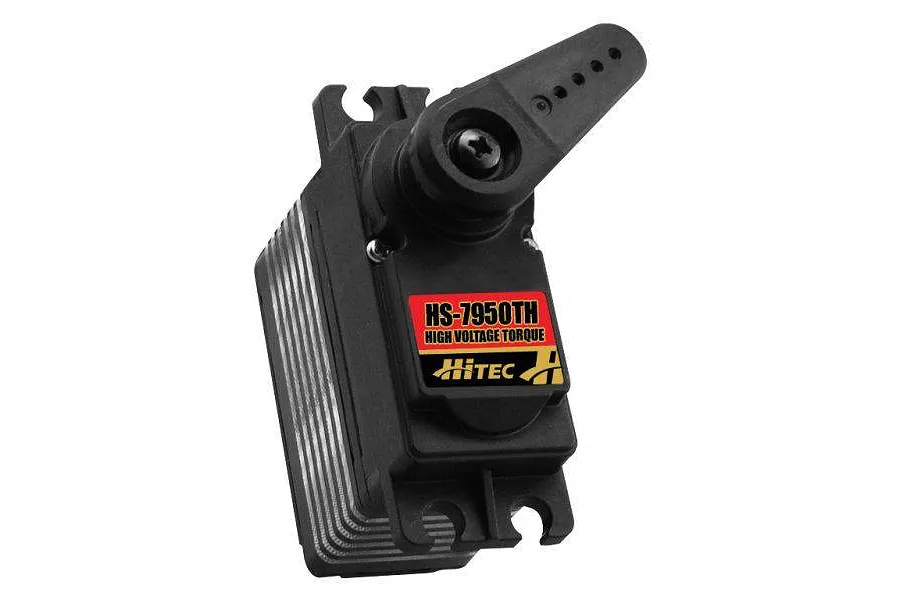

Hitec HS-7950TH Standard 35kg 7.4v Metal Geared Servo
Hitec HS-7950TH Standard 35kg 7.4v Metal Geared Servo
Hitec HS-7950TH 35kg 7.4V metal geared servo — 403 oz./in. torque at 6.0V with titanium gear train and coreless motor.
- 403 oz./in. torque at 6.0 volts
- 0.15 second transit time
- Titanium Gear Train with Ultra Performance Coreless Motor
- Heatsink case with 8 O-rings for Water/Dust/Fuel protection
- G2 Digital Circuit with programmable functions
The HS-7950TH has been designed for the most demanding hobby applications including the largest aircraft and monster trucks. Featuring a titanic 403 oz./in. of torque at 6.0 volts, while still maintaining a respectable 0.15 second transit time.
- G2 Digital Circuit
- Titanium Gear Train (MK first gear)
- Ultra Performance Coreless Motor
- Heatsink Case
- (8) O-Rings for Water/Dust/Fuel protection
- Dual Ball Bearing Supported Output Shaft
Programmable Functions (programmable with the HFP-20, HPP-20 or HPP-21 programmers only):
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Overload Protection
- Resolution
- Data Save / Load
- Program Reset
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience brown-outs where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver. However, in some cases, you may need to install an external BEC.
-
Total Height (A)
- 40mm
-
Body Width (B)
- 38mm
-
Below Mount (C)
- 24mm
-
Above Mount (D)
- 11mm
-
Total Length (E)
- 51mm
-
Total Width (F)
- 17mm
-
Height (A)
- 40mm
-
Body Length (B)
- 38mm
-
Bottom to Under Mount (C)
- 24mm
-
Top to Under Mount (D)
- 11mm
-
Length (E)
- 51mm
-
Width (F)
- 17mm
-
SizeConventionally sized servo names
- Standard
-
Gear Material
- Titanium
-
Waterproof Casing
- Splash Proof
-
Servo Spline Count
- 24Tooth
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 35
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.15
-
Signal Type
- Digital
-
Drive Motor Type
- Coreless
-
Case Material
- Plastic, Metal
-
Rotational Degrees
- 120° (Normal)
