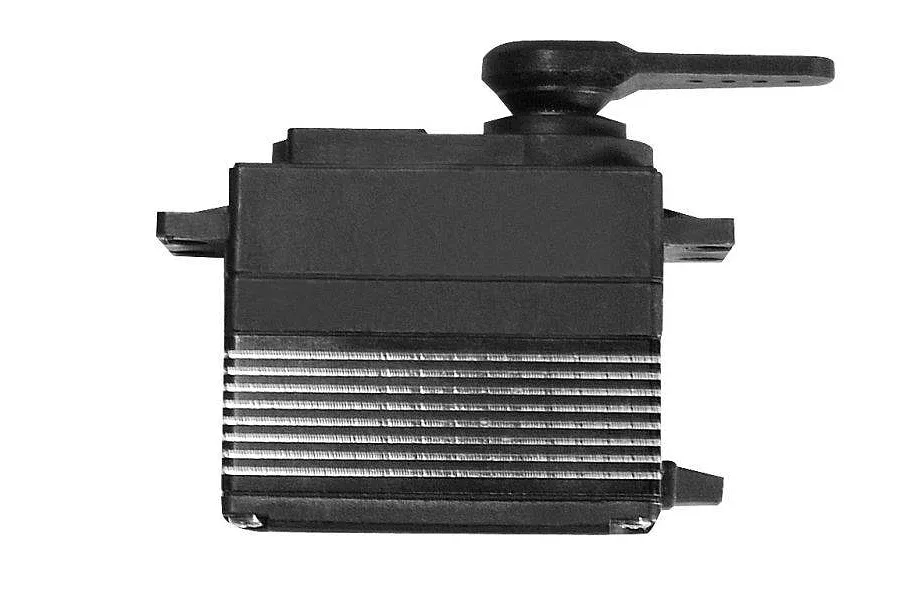

Hitec HS-7955TG Standard 24kg Metal Geared Servo
Hitec HS-7955TG Standard 24kg Metal Geared Servo
Hitec HS-7955TG 24kg metal geared servo — 333 oz./in. torque at 6.0V with titanium gears and G2 digital circuit.
- 333 oz./in. torque at 6.0 volts
- Titanium Gear Train (MK first gear) for incredible wear resistance
- G2 Digital Circuit with twice the resolution of the original circuit
- Coreless Motor with Dual Ball Bearing Supported Output Shaft
- Programmable overload protection
Hitec's best servo just got better. Based on the powerhouse HS-5955TG servo, the HS-7955TG has the added benefit of the G2 second generation programmable digital circuit. This new circuit has twice the resolution of the original circuit while adding programmable overload protection. The HS-7955TG has been designed for the most demanding hobby applications including the largest aircraft and monster trucks. Featuring a titanic 333 oz./in. of torque at 6.0 volts, all this power is harnessed by incorporating the industry's first Titanium gears for incredible wear resistance and two strong hardened steel gear pins and axial brass bushing in the servo case.
- G2 Digital Circuit
- Coreless Motor
- Dual Ball Bearing Supported Output Shaft
- Titanium Gear Train (MK first gear)
Programmable Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Overload Protection
- Resolution
- Data Save / Load
- Program Reset
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience brown-outs where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver. However, in some cases, you may need to install an external BEC.
-
Total Height (A)
- 40mm
-
Body Width (B)
- 38mm
-
Below Mount (C)
- 24mm
-
Above Mount (D)
- 11mm
-
Total Length (E)
- 51mm
-
Total Width (F)
- 17mm
-
Height (A)
- 40mm
-
Body Length (B)
- 38mm
-
Bottom to Under Mount (C)
- 24mm
-
Top to Under Mount (D)
- 11mm
-
Length (E)
- 51mm
-
Width (F)
- 17mm
-
SizeConventionally sized servo names
- Standard
-
Gear Material
- Titanium
-
Waterproof Casing
- Splash Proof
-
Servo Spline Count
- 24Tooth
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 24
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.15
-
Signal Type
- Digital
-
Drive Motor Type
- Coreless
-
Case Material
- Plastic, Metal
-
Rotational Degrees
- 120° (Normal)
