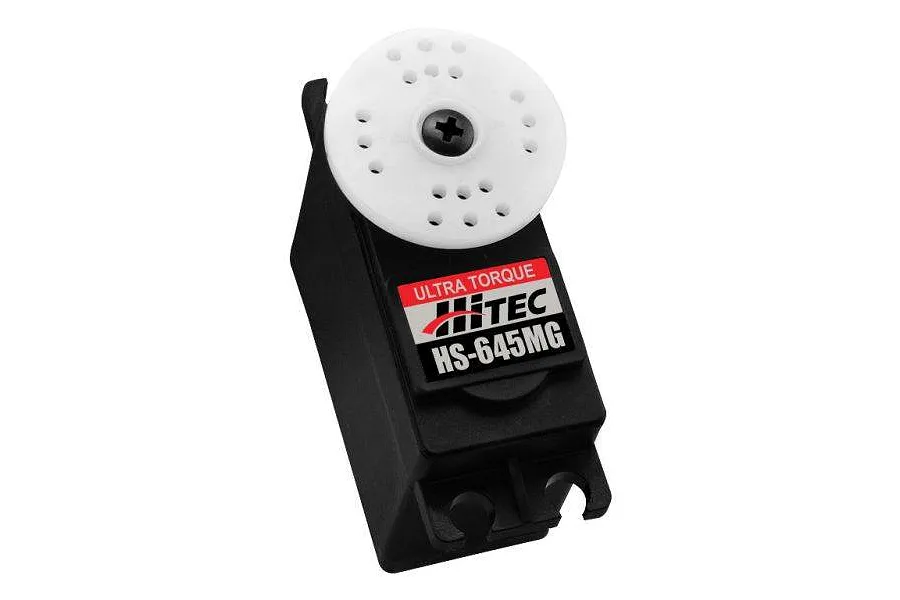

Name: Hitec HS-645MG Standard 9.6kg Metal Geared Servo
Brand: Hitec
SKU: HIT-HRC32645S
Price: 78.73 AUD
Availability: InStock
Rating: 5 (1 reviews)

Overview

The powerful HS-645MG is one of Hitec's most popular servos. It's the perfect choice for those larger sport planes or monster trucks and buggies requiring a durable high torque servo. Featuring our unique M/P and metal gear train technology, the HS-645MG offers one of the strongest gear trains available in any servo.

Note

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Features

High Torque
Strong Three-Pole Ferrite Motor
Heavy Duty Metal Gear Train Featuring our Revolutionary Metal/Plastic First Gear (MP Gear)
Dual Ball Bearing-Supported Output Shaft

Specifications

Total Height (A)	40mm
Body Width (B)	38mm
Below Mount (C)	24mm
Above Mount (D)	11mm
Total Length (E)	51mm
Total Width (F)	17mm

Servo

SizeConventionally sized servo names	Standard
Gear Material	Metal
Servo Spline Count	24Tooth
Waterproof Casing	No
Case Material	Plastic
Height (A)	40mm
Body Length (B)	38mm
Bottom to Under Mount (C)	24mm
Top to Under Mount (D)	11mm
Length (E)	51mm
Width (F)	17mm
Drive Motor Type	Brushed
Rotational Degrees	120° (Normal)
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline	9.6
6V Sec/60 DegreesSeconds per 60 degrees of rotation	0.24
Signal Type	Analog
