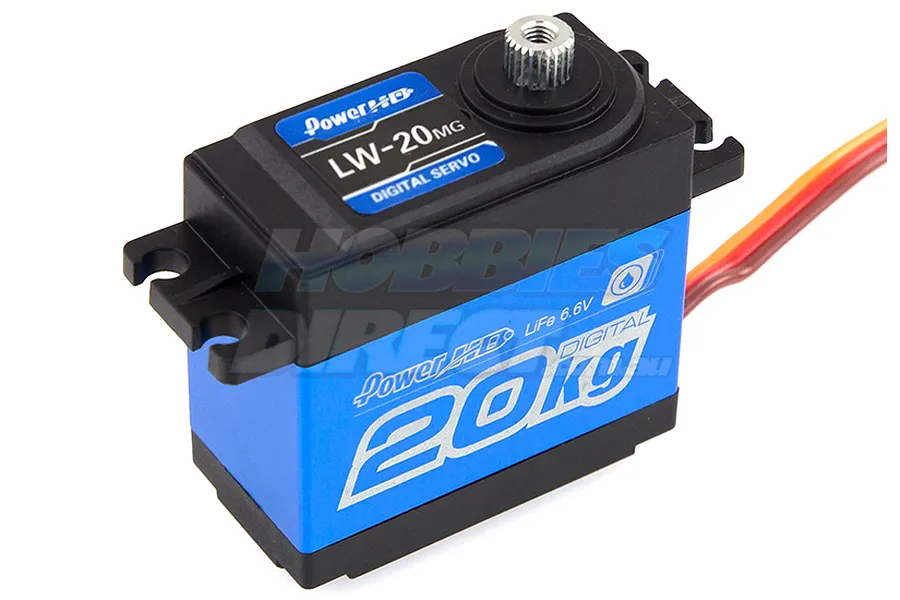

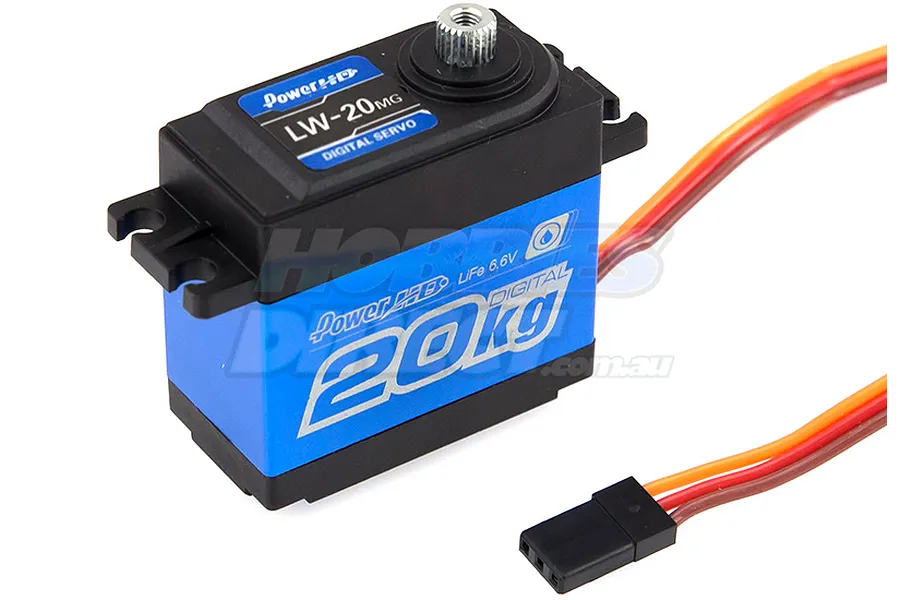

Power HD Standard LW-20MG 20kg Metal Geared Waterproof Servo

Brand: Power HD | SKU: LW-20MG
10+ in stock

$56.65

Fits 504 Vehicles

Login to My Garage to check compatibility.

Description

 Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Overview
The incredibly popular LW-20MG servo is very universal and is great for a lot RC cars and boats. Features a 20kg torque rating which is massive and is enough to easily steer big wheels like found on the Arrma Kraton and Outcast.

The Power HD LW-20MG 20kg servo will work for most 1/10 and 1/8 RC cars and is particularly popular in the rock crawling and 1/8 off road categories.

This servo has metal (brass and copper gears) if you have a very high load application such as a rock crawler without a servo saver, we recommend the 23kg servo which has metal (steel and titanium gears) that are stronger.


Power HD LW-20KG Servo Specifications
  • Total Height (A) = 44.6mm
  • Body Width (B) = 40.6mm
  • Below Mount (C) = 28mm
  • Above Mount (D) = 16.6mm
  • Total Length (E) = 54.2mm
  • Total Width (F) = 20.5mm
RC Hobby Servo Specifications

?

Learn how to install a steering servo correctly to increase steering performance, and avoid stripping your servo gears out.

Specifications
Servo
Servo Size: Standard
Gear Material: Metal
Waterproof Casing: Yes
Servo Spline Count: 25
Signal Type: Digital
6.0V Torque kg/cm: 20
6.0V Sec/60 Degrees: 0.16
"A" Measurement: 44.6
"B" Measurement: 40.6
"C" Measurement: 28
"D" Measurement: 16.6
"E" Measurement: 54.2
"F" Measurement: 20.5
Reviews
Power HD Standard LW-20MG 20kg Metal Geared Waterproof Servo
3 reviews
Will Loveless
16/06/2022
Works a treat, easy to install.

Rob Smith
27/02/2020
Great item. On line help from hobbies direct to ensure it was the correct part and super fast delivery (next day to regional QLD).

Scotty Rutherford
16/10/2018
Easily one of the best crawler servos on the market. It's perfect for any heavy 1.9-2.2 crawler because the torque on this thing is INCREDIBLE! Well done Power HD!
