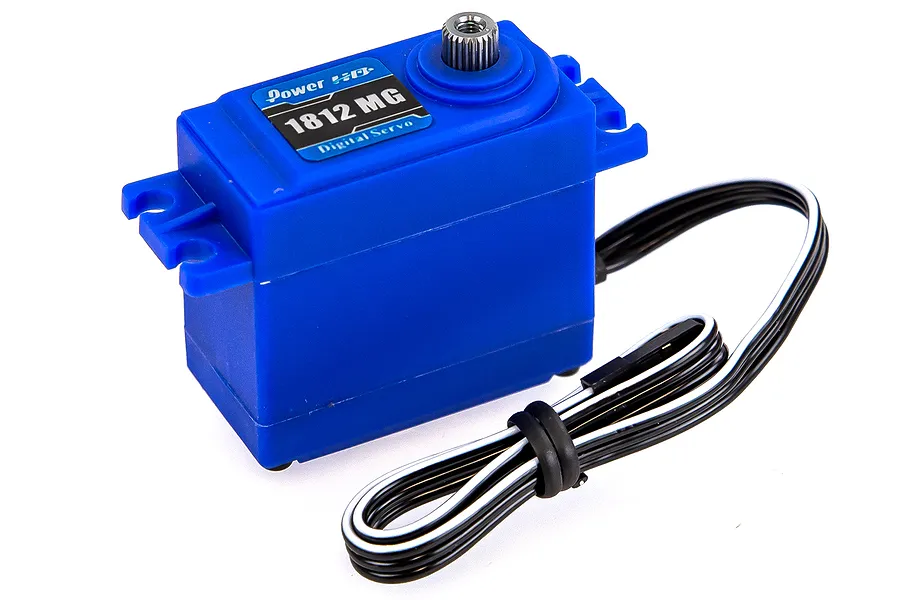

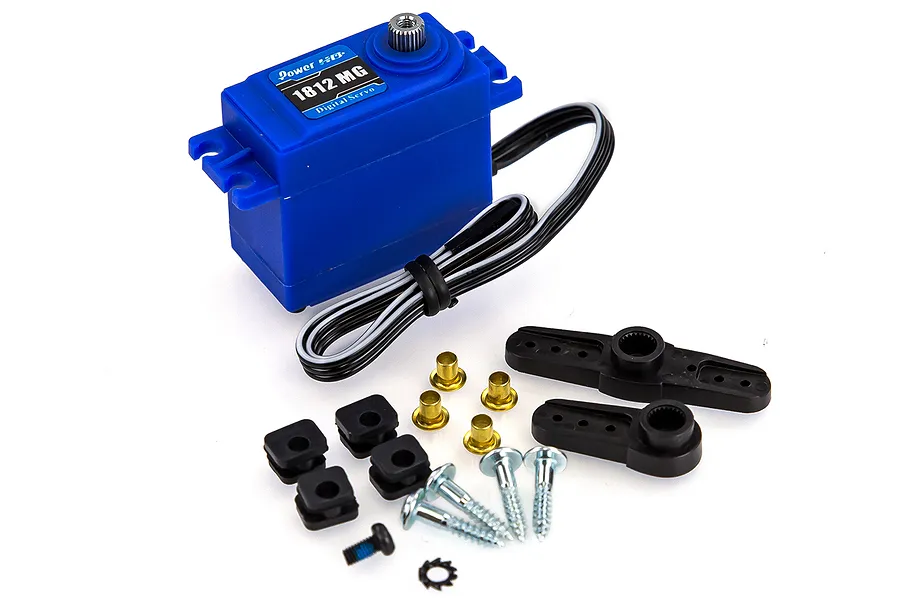

Power HD Standard 1812MG 18kg Metal Geared Waterproof Servo
Alternative Products
Description
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Power HD 1812MG Servo Specifications
- Total Height (A) = 43.5mm
- Body Width (B) = 40.6mm
- Below Mount (C) = 26.5mm
- Above Mount (D) = 17mm
- Total Length (E) = 54.3mm
- Total Width (F) = 20mm

Learn how to install a steering servo correctly to increase steering performance, and avoid stripping your servo gears out.
Specifications
Servo
-
Servo Spline Count
- 25Tooth
-
Total Length
- 54.3mm
-
Total Width
- 20mm
-
Bottom to Under Mount
- 26.5mm
-
Top to Under Mount
- 17mm
-
Total Height
- 43.5mm
-
Body Length
- 40.6mm
-
Rotational Degrees
- 120° (Normal)
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.12
-
Signal Type
- Digital
-
Case Material
- Plastic
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 18
-
Gear Material
- Metal
-
Waterproof Casing
- Yes
-
Drive Motor Type
- Brushed
-
SizeConventionally sized servo names
- Standard
