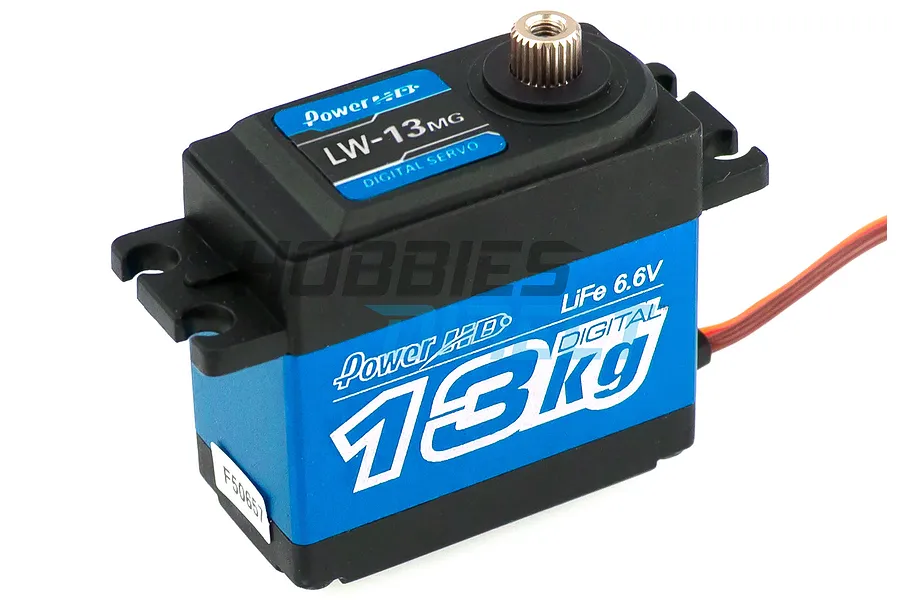

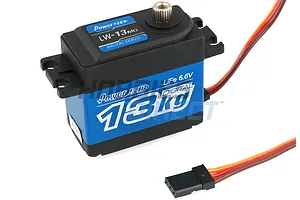

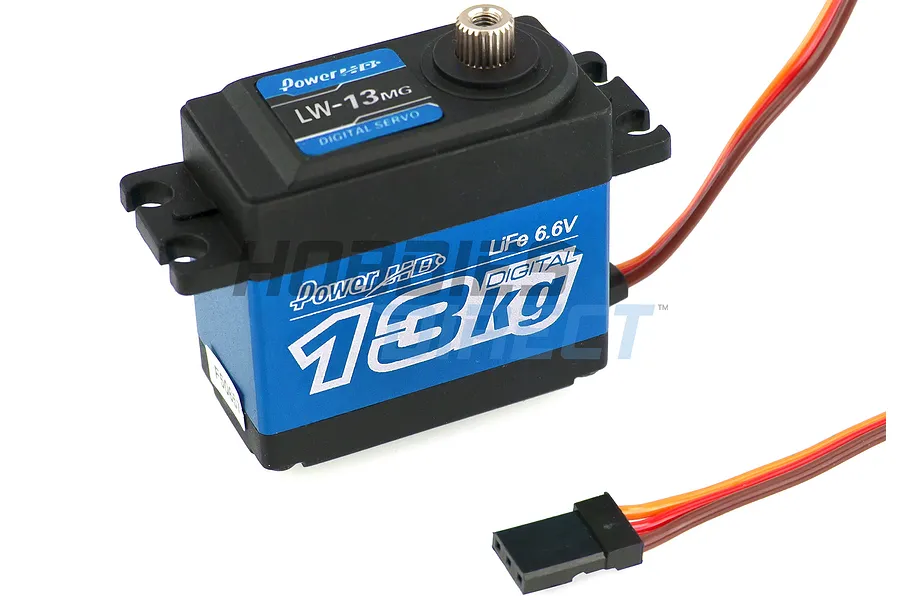

Power HD Standard LW-13MG 13kg Metal Geared Waterproof Servo
Videos
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Power HD LF-13MG Servo SpecificationsTotal Height (A) = 43.5mm
Body Width (B) = 40.1mm
Below Mount (C) = 26.6mm
Above Mount (D) = 15.6mm
Total Length (E) = 54.4mm
Total Width (F) = 20.2mm
Learn how to install a steering servo correctly to increase steering performance, and avoid stripping your servo gears out.
-
Height (A)
- 43.5mm
-
Body Length (B)
- 40.01mm
-
Bottom to Under Mount (C)
- 26.6mm
-
Top to Under Mount (D)
- 15.6mm
-
Length (E)
- 54.4mm
-
Width (F)
- 20.2mm
-
SizeConventionally sized servo names
- Standard
-
Gear Material
- Metal
-
Waterproof Casing
- Yes
-
Servo Spline Count
- 25Tooth
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 13
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.12
-
Signal Type
- Digital
