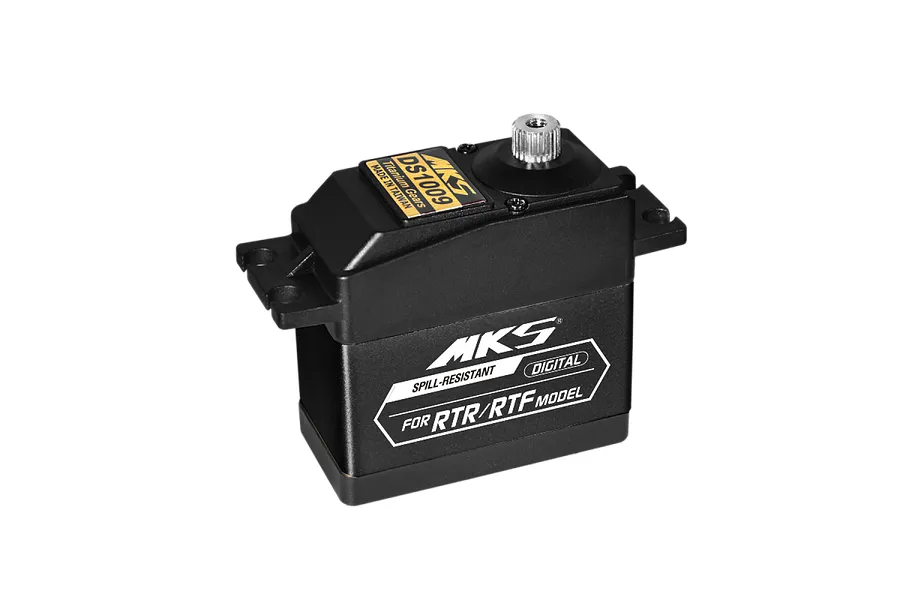

MKS DS1009 Standard 8.8kg 6V Titanium Geared Servo
Videos
MKS DS1009 Standard 8.8kg 6V Titanium Geared Servo
Brand:
MKS
|
MPN: S0016002
$73.99
or 4 fortnightly payments of $18.50 with
Add to Wishlist
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Compatible with
68 products.
See Compatibility
Alternative Products
Related Products
Description
The MKS DS1009 (S0016002) is a robust standard-size servo designed for a variety of RC applications. With its powerful 8.8 kg-cm torque, titanium gears, and precise control, it's a reliable choice for demanding steering and control tasks.
Features
- Powerful torque for demanding tasks (8.8 kg-cm at 6V)
- Durable titanium gears for long-lasting performance
- Responsive control with fast speeds (0.100 sec at 6V)
- Standard size for easy compatibility
- Flexible power options with 4.8V - 6.0V operating range
- Genuine MKS Product
Included Items
- 1x MKS DS1009 (S0016002) 8.8kg 6V Standard Titanium Geared Servo
Note
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Videos
Specifications
-
Torque (4.8V)
- 7.04 kg-cm (97.8 oz-in)
-
Torque (5.5V)
- 8.06 kg-cm (111.9 oz-in)
-
Torque (6.0V)
- 8.8 kg-cm (122.2 oz-in)
-
Speed
- 0.125 sec (4.8V) | 0.109 sec (5.5V) | 0.100 sec (6.0V)
-
Weight
- 56 g (1.97 oz)
-
Operating Voltage
- 4.8V - 6.0V
-
Bearing Type
- Dual Ball Bearing
-
Motor Type
- Brushed
-
Operating Temperature
- N/A
-
Refresh Rate
- 333 Hz
-
Total Height (A)
- N/A
-
Body Width (B)
- 40 mm
-
Below Mount (C)
- 28 mm
-
Above Mount (D)
- N/A
-
Total Length (E)
- 50 mm
-
Total Width (F)
- 20 mm
Servo
-
Body Length (B)
- 40mm
-
Bottom to Under Mount (C)
- 28mm
-
Length (E)
- 50mm
-
Width (F)
- 20mm
-
SizeConventionally sized servo names
- Standard
-
Gear Material
- Titanium
-
Waterproof Casing
- Yes
-
Servo Spline Count
- 25Tooth
-
Input Voltage Range
- 4.8V, 5.5V, 6V
-
4.8V Torque kg/cm
- 7.04
-
4.8V Sec/60 Degrees
- 0.125
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 8.8
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.10
-
Signal Type
- Digital
-
Drive Motor Type
- Brushed
-
Case Material
- Plastic
-
Rotational Degrees
- 120° (Normal)
