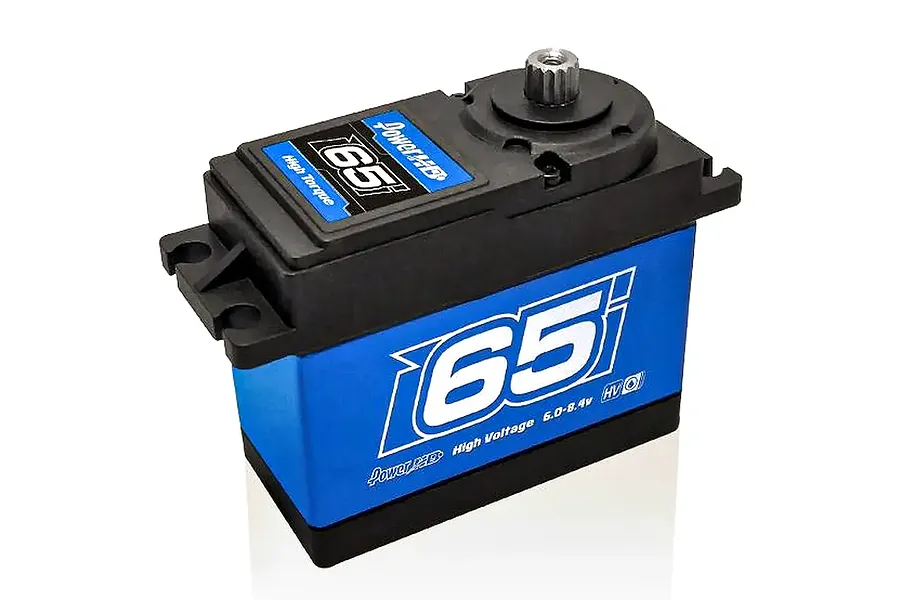

Power HD 1/5 WH-65KG 65kg Metal Geared Waterproof Servo
Power HD 1/5 WH-65KG 65kg Metal Geared Waterproof Servo
Brand:
Power HD
|
MPN: WP-65KG
$100.93
or 4 fortnightly payments of $25.23 with
Pay later with
We'll send it today
When ordered within the next
hms
What does Next Dispatch mean?
Pay before 1:00pm Melbourne time on a dispatch day and your order ships the same day.
This is dispatch time, not delivery time — couriers still take their usual transit days.
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Compatible with
9 products.
See Compatibility
Frequently Bought Together
Description
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20 kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Note
If being used in a Rovan 5B, you will need a servo mount for proper fitment.
Specifications
-
Torque (6.0V)
- 55 kg-cm
-
Torque (8.4V)
- 65 kg-cm
-
Speed
- 0.19 sec per 60° (6V)
-
Speed
- 0.17 sec per 60° (8.4V)
-
Operating Voltage
- 6.0–8.4V DC
-
Weight
- 200 g
-
Gear Type
- Steel
-
Horn Gear Spline
- 15T — 7.6 mm
-
Bearing Type
- Ball Bearing x 2
-
Operating Temperature
- -10°C to 50°C
-
Operating Travel
- 90° (1000–2000 µsec)
-
Neutral Position
- 1500 µsec
-
Maximum Travel
- Approximately 135° (800–2200 µsec)
-
Total Height (A)
- 64.2 mm
-
Body Width (B)
- 66 mm
-
Below Mount (C)
- 39.7 mm
-
Above Mount (D)
- 24.5 mm
-
Total Length (E)
- 81.6 mm
-
Total Width (F)
- 30 mm
Reviews
(3)
5 out of 5 stars
8 months ago
Johnnie
W
No review text provided.
4 out of 5 stars
1 year ago
Alex
P
Not bad at all, definitely a huge upgrade over the stock servo. Dropped in pretty easy, just had to buy a set of the adjustable linkages as the horn is in a slightly different location, far enough to cause the stock linkages to feel too tight. My only real complaint is the HD Power servo just isn't fast enough. I could get something even better still but don't want to spend big bucks they demand. But overall this servo works well enough. Now to see how long it will last!
5 out of 5 stars
4 years ago
Fadi
M
Fast shipping to Perth, I love it!!
Questions & Answers
(1)
0
Richard Macquet
3 weeks ago
Do you have an aluminium horn to fit this 65kģ servo if so please supply the part no
