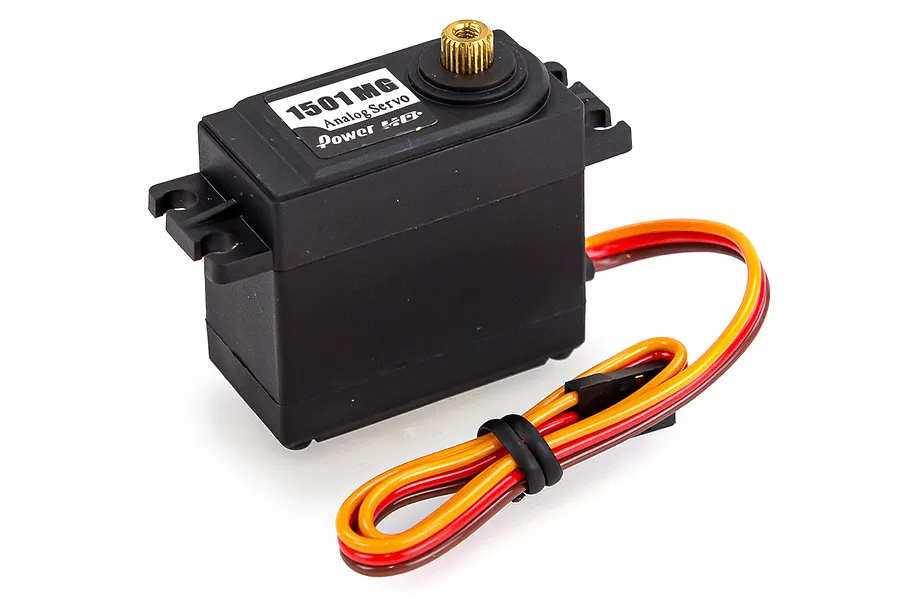

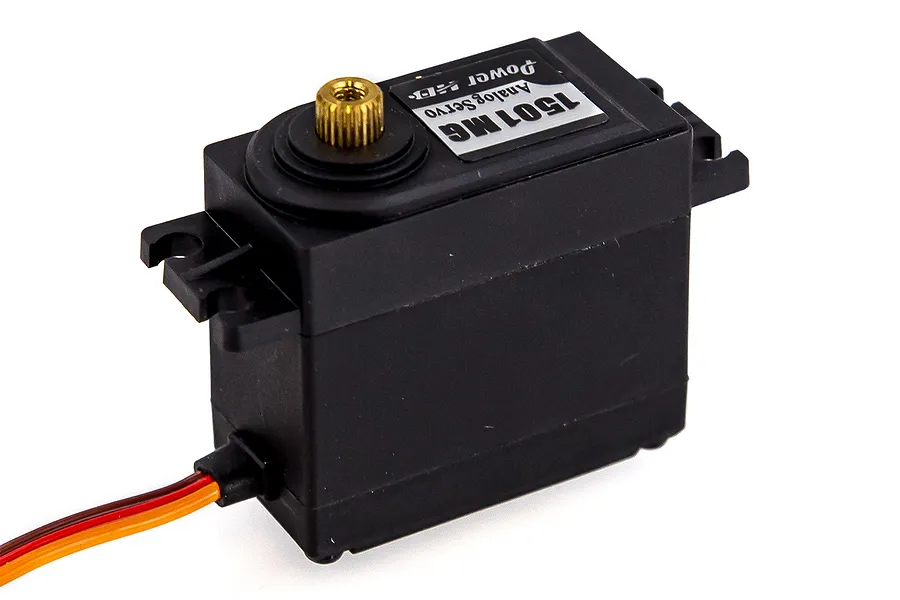

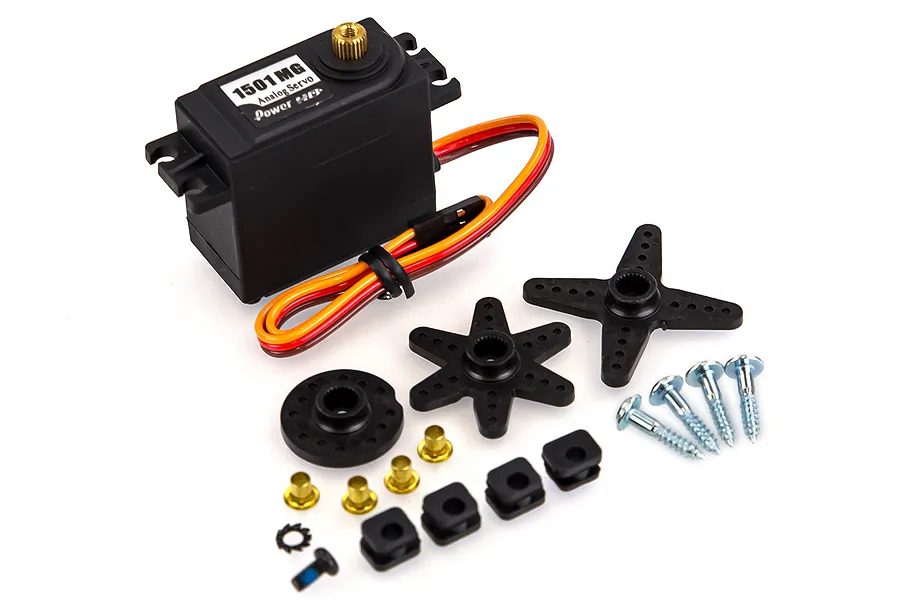

Power HD Standard HD-1501MG 17kg Metal Geared Servo

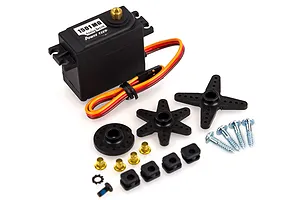

Power HD Standard HD-1501MG 17kg Metal Geared Servo image 44898

Videos

Power HD Standard HD-1501MG 17kg Metal Geared Servo

Brand: Power HD | SKU: HD-1501MG

3+ in stock

5.0

2 reviews

$31.57

Pay later with

Description

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Power HD HD-1501MG Servo Specifications

Total Height (A) = 43.3mm
Body Width (B) = 40.4mm
Below Mount (C) = 26.6mm
Above Mount (D) = 16.7
Total Length (E) = 54.4mm
Total Width (F) = 20mm

Learn how to install a steering servo correctly to increase steering performance, and avoid stripping your servo gears out.

Specifications

Servo

Servo Spline Count: 25Tooth
Total Length: 54.4mm
Total Width: 20mm
Bottom to Under Mount: 26.6mm
Top to Under Mount: 16.7mm
Total Height: 43.3mm
Body Length: 40.4mm
Rotational Degrees: 120° (Normal)
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.16
Signal Type: Analog
Case Material: Plastic
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 17
Gear Material: Metal
Waterproof Casing: No
Drive Motor Type: Brushed
Size Conventionally sized servo names: Standard
