HSP

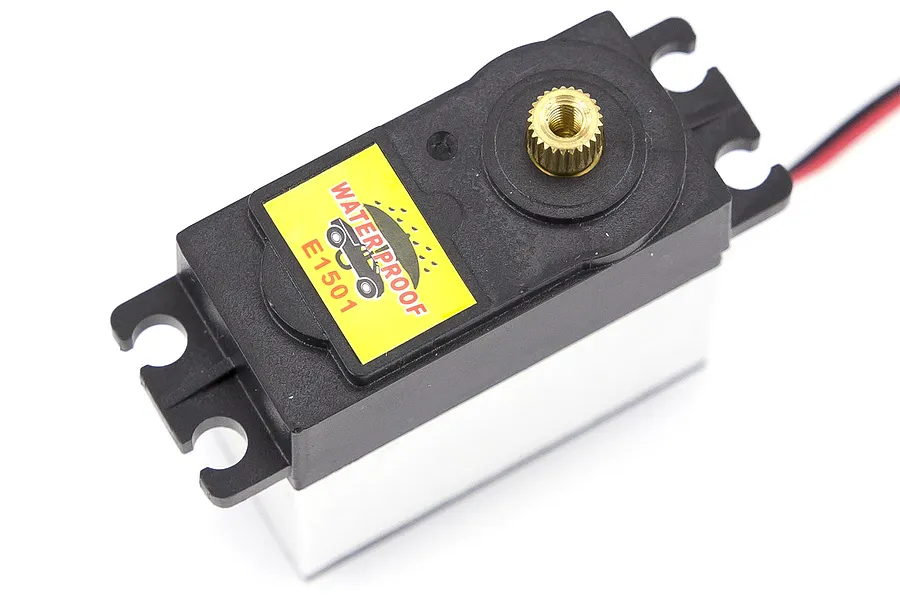

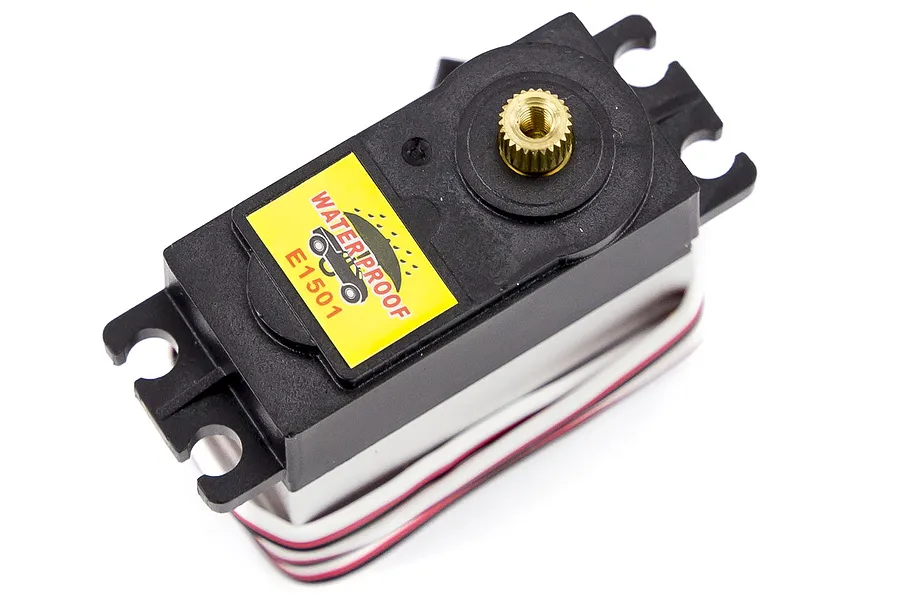

HSP Standard Waterproof Metal Geared 9kg Servo

Part no. 83015

3 in stock5.0
1 review
1 / 2
1 / 2

$41.27

or 4 fortnightly payments of $10.32 with afterpay or PayPal, or zip

  • 3 in stock · Ships Wednesday · order by Wednesday

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Will it fit?

Check fit: add your vehicle to My GarageFits 121 vehicles

Overview

Note

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Specifications

Servo

Servo
SizeConventionally sized servo namesStandard
Gear MaterialMetal
Servo Spline Count25Tooth
Waterproof CasingYes
Case MaterialMetal
Height (A)46mm
Body Length (B)40mm
Bottom to Under Mount (C)28mm
Top to Under Mount (D)17mm
Length (E)54mm
Width (F)20mm
Rotational Degrees120° (Normal)
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline9

Compatibility
