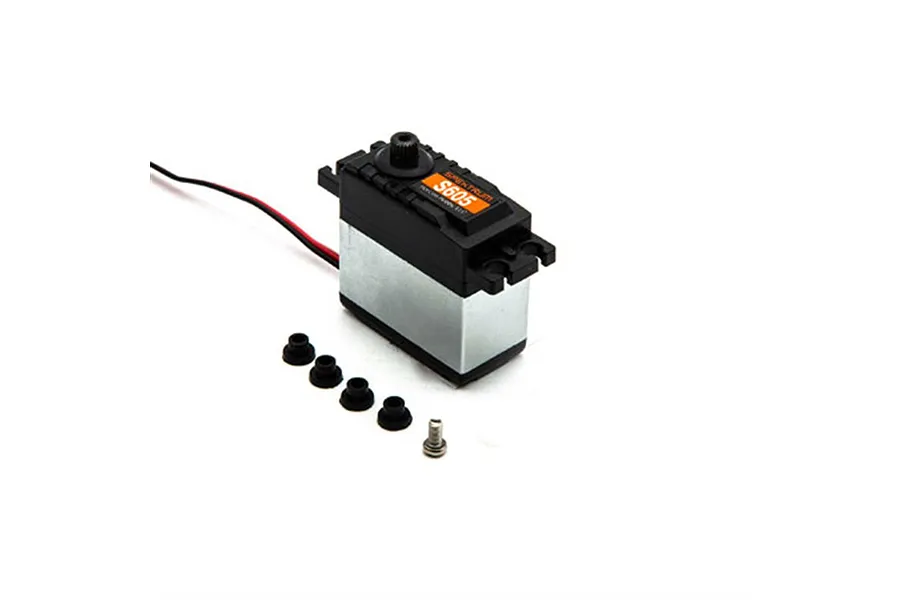

Spektrum S605HV Standard 9kg 7.4v Metal Geared Waterproof Servo
 Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Waterproof Spektrum 23T 9kg High Voltage Servo with metal gearing.
FeaturesWaterproof casing
Metal Gearing
23T output shaft
Genuine Spektrum Product
Learn how to install a steering servo correctly to increase steering performance, and avoid stripping your servo gears out.
Servo Specifications
Total Height (A) = 44.5mm
Body Width (B) = 40.5mm
Below Mount (C) = 28.3mm
Above Mount (D) = 16.2mm
Total Length (E) = 54.4mm
Total Width (F) = 20.1mm
| Description | QTY |
|---|---|
| S605HV Standard 9kg 7.4v Metal Geared Waterproof Servo | 1 |
| Parts Set | 1 |
-
Height (A)
- 46.3mm
-
Body Length (B)
- 40.2mm
-
Bottom to Under Mount (C)
- 28mm
-
Top to Under Mount (D)
- 18.3mm
-
Length (E)
- 20mm
-
Width (F)
- 55.3mm
-
SizeConventionally sized servo names
- Standard
-
Gear Material
- Metal
-
Waterproof Casing
- Yes
-
Servo Spline Count
- 23Tooth
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 9
-
Signal Type
- Digital
-
Case Material
- Metal
-
Rotational Degrees
- 120° (Normal)
