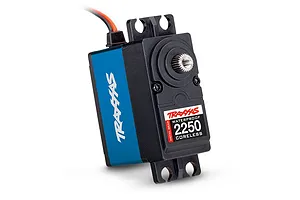

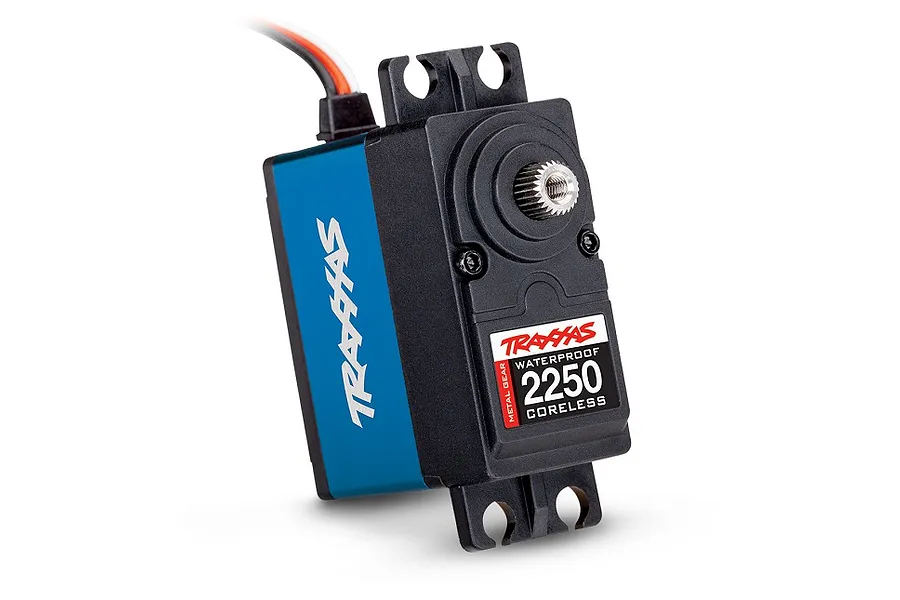

Traxxas High-Torque Metal Gear Waterproof Blue Servo
Traxxas High-Torque Metal Gear Waterproof Blue Servo
Traxxas High-Torque 330 Blue servo: 330 oz-in torque, full metal gears, fully waterproof, factory fit for 1/10 Traxxas vehicles.
- 330 oz-in torque at 6.0V — over 2.5× the standard #2075 servo
- Fully waterproof (not just water resistant)
- Full metal gears with dual ball bearings
- Coreless motor technology with aluminum center case
- Factory fit drop-in for most 1/10 Traxxas vehicles

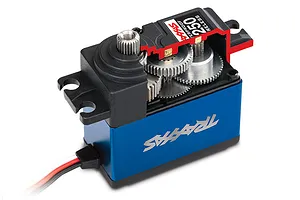

The Traxxas High-Torque 330 Blue servo combines maximum steering authority with a long list of high-performance features. The servo utilises full metal gears, dual ball bearings, and an aluminum center section for added heat dissipation. A powerful coreless motor provides 330 ounce-inches of torque for the most demanding applications. The High-Torque 330 servo is fully waterproof, not just "water resistant", and drops into most 1/10 Traxxas vehicles for a perfect factory fit.
With over 2.5 times more torque than the standard #2075 servo, the High-Torque 330 provides noticeably faster turning speed and works great with TSM™ equipped vehicles. Traxxas High-Torque servos are the perfect upgrade for high-demand applications like Unlimited Desert Racer, Slash, Stampede, or almost any 1/10 Traxxas vehicle requiring extreme performance. Replace the E-Revo's dual servos with a single #2250 for lighter weight, more torque, and lightning-quick steering response.
- Factory fit for drop-in installation into Traxxas Models
- Fully waterproof, not "water resistant"
- Compatible with Traxxas Stability Management™ (TSM)
- 330 oz-in torque at 6.0V
- 0.19 sec/60° at 6.0V
- Metal gears
- Dual ball bearings
- Coreless motor technology
- Aluminum center case
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
-
Total Height (A)
- 43mm
-
Body Width (B)
- 40.6mm
-
Below Mount (C)
- 28.2mm
-
Above Mount (D)
- 15.3mm
-
Total Length (E)
- 54.85mm
-
Total Width (F)
- 20.17mm
-
Height (A)
- 43mm
-
Body Length (B)
- 40.6mm
-
Bottom to Under Mount (C)
- 28.2mm
-
Top to Under Mount (D)
- 15.3mm
-
Length (E)
- 54.85mm
-
Width (F)
- 20.17mm
-
SizeConventionally sized servo names
- Standard
-
Gear Material
- Metal
-
Waterproof Casing
- Yes
-
Servo Spline Count
- 25Tooth
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 23
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.19
-
Signal Type
- Digital
-
Drive Motor Type
- Coreless
-
Case Material
- Metal
-
Rotational Degrees
- 120° (Normal)
