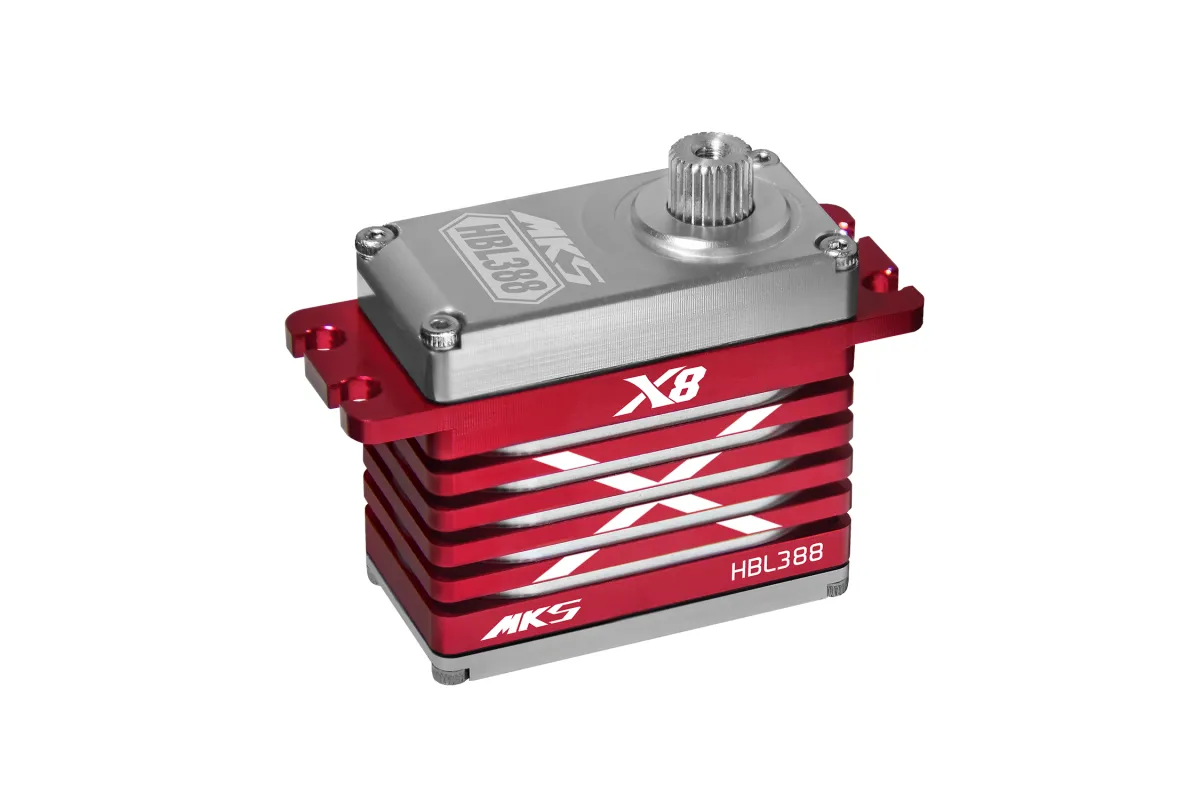

MKS Red Aluminium HBL388 Standard 68kg 8.4V Brushless Metal Geared Servo
Brand: MKS
|
SKU: S0010015
Description
 Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Overview
Experience the ultimate in servo performance with the MKS Red Aluminium X8 servo. This servo delivers extreme torque, lightning-fast response, and the long-lasting power of a brushless motor.
Features
- Immense torque for the most demanding applications
- Responsive with lightning-fast speeds as quick as 0.14s
- Durable brushless motor pairs with the metal gears for unparalleled durability
- All aluminium case provides efficient heat dissipation and protection
- High voltage operation (6v-8.4v)
- Genuine MKS Product
Specifications
- Torque (6.0V): 50 kg-cm / 694.3 oz-in
- Torque (7.4V): 60 kg-cm / 833.2 oz-in
- Torque (8.2V): 68 kg-cm / 944.3 oz-in
- Speed: 0.19 s (6.0V)/0.16 s (7.4V) / 0.14 s (8.2V)
- Weight: 93.3 g (3.29 oz)
- Operating Voltage: 6v-8.4v DC
- Bearing Type: Dual Ball Bearing
- Motor Type: Brushless
- Operating Temperature: N/A
- Refresh Rate: 333Hz
Servo Dimensions
- Total Height (A) = 45.65 mm
- Body Width (B) = 43 mm
- Below Mount (C) = 28.3 mm
- Above Mount (D) = 17.35 mm
- Total Length (E) = 52.5 mm
- Total Width (F) = 22 mm
- Spline Diameter: 8mm - 25T
![RC Hobby Servo Specifications](https://cdn.hobbiesdirect.com.au/catalog/category/Descriptions/Servos/Servo%20Specifications%20Diagram.jpg)
How To: Install a Servo
In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.
Included items
Description | QTY |
---|---|
MKS Red Aluminium X8 68kg 8.4V Standard Brushless Metal Geared Servo | 1 |
Specifications
Servo | |
---|---|
Servo Size: | Standard |
Drive Motor Type: | Brushless |
Gear Material: | Metal |
Case Material: | Aluminium |
Waterproof Casing: | Yes |
Rotational Degrees: | 120° (Normal) |
Servo Spline Count: | 25 |
Signal Type: | Digital |
6.0V Torque kg/cm: | 50 |
7.4V Torque kg/cm: | 60 |
8.4V Torque kg/cm: | 68 |
6.0V Sec/60 Degrees: | 0.19 |
7.4V Sec/60 Degrees: | 0.16 |
8.4V Sec/60 Degrees: | 0.14 |
Input Voltage Range: | 6V, 7.4V, 8.4V |
"A" Measurement: | 45.65 |
"B" Measurement: | 43 |
"C" Measurement: | 28.3 |
"D" Measurement: | 17.35 |
"E" Measurement: | 52.5 |
"F" Measurement: | 22 |
