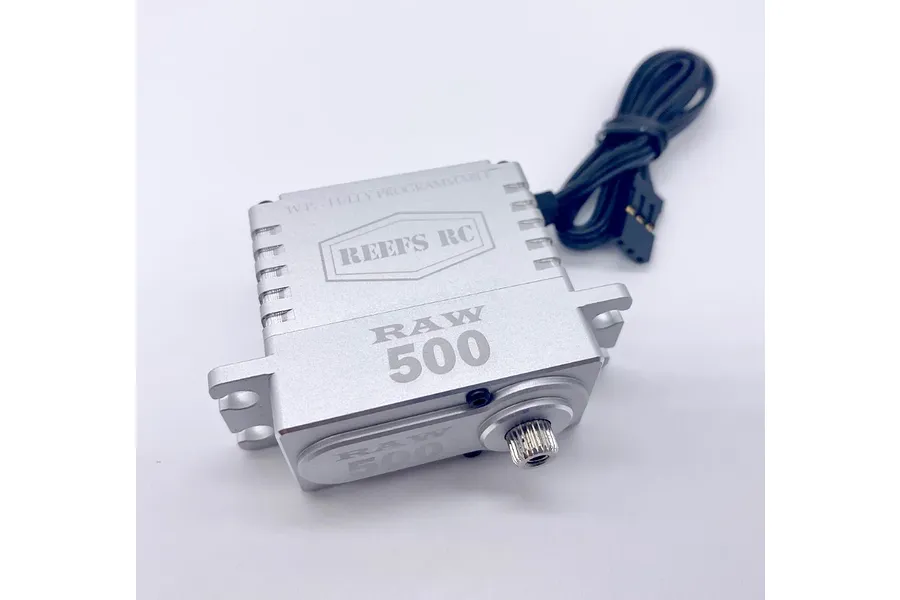

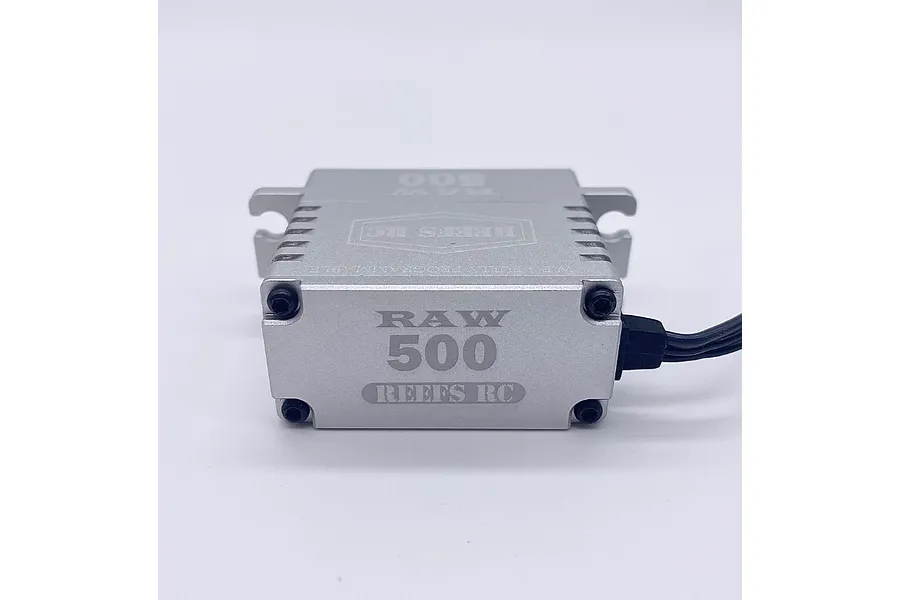

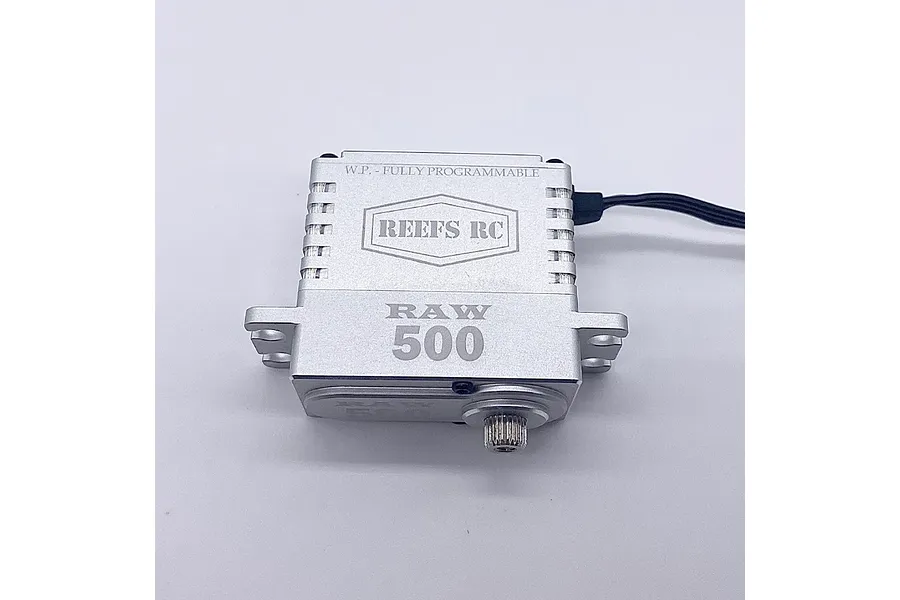

Reefs RC Aluminium RAW500 Standard 41kg 8.4V Brushless Metal Geared Servo - Silver

  • Brushless

Part no. REEFS54

Sold out5.0
1 review
1 / 4
1 / 4

$234.99

or 4 fortnightly payments of $58.75 with afterpay

The Reefs RC RAW500 Standard Brushless Metal Gear Servo Delivers Immense Power And Precision For Your Most Demanding RC Applications

  • 0.08sec transit speed at 8.4V for rapid steering
  • Supports 4.8V to 8.4V for versatile power setups
  • Massive 40kg-cm (565oz-in) torque for extreme terrain
  • IP67 waterproof rating ensures all-weather reliability
  • Fully programmable using the Reefs RC USB Link software

In stock now: similar

Overview

The Reefs RC RAW500 is a game-changing powerhouse that has earned its reputation as a highly recommended servo for serious RC enthusiasts. Featuring a fully CNC machined aluminium case and durable steel gears, it delivers incredible torque and blistering speeds. With its IP67 waterproof rating and magnetic angle sensor, this brushless servo offers unbeatable reliability and precision for any build.

Note

A Reefs RC USB Link is required to access the servo's programmable features.

For maximum performance, the Reefs RC 8.4V EZ-BEC is highly recommended.

Features

  • High-performance brushless motor delivers exceptional torque and transit speeds
  • Fully programmable custom circuitry via the separately sold Reefs USB Link
  • Durable internal steel gears and dual ball bearings ensure long-lasting use
  • All CNC aluminium case acts as a powerful heatsink for optimal heat dissipation
  • IP67 waterproof rating featuring a 7-point seal system for wet conditions
  • Genuine Reefs RC Product

In the box

  • 1x Reefs RC Aluminium RAW500 Standard 41kg 8.4V Brushless Metal Gear Servo

You'll need

  • 1x Compatible RC Receiver
  • 1x Reefs RC USB Link (For Programming)

Specifications

Servo

Servo
SizeConventionally sized servo namesStandard
Gear MaterialSteel
Servo Spline Count25Tooth
Waterproof CasingYes
Input Voltage Range6V, 7.4V, 8.4V
Case MaterialAluminium
Height (A)43.05mm
Body Length (B)40.16mm
Bottom to Under Mount (C)25.70mm
Top to Under Mount (D)16.50mm
Length (E)54.08mm
Width (F)20.25mm
Drive Motor TypeBrushless
Rotational Degrees120° (Normal)
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline32
6V Sec/60 DegreesSeconds per 60 degrees of rotation.11
7.4V Torque kg/cm36
7.4V Sec/60 Degrees.095
8.4V Torque kg/cm41
8.4V Sec/60 Degrees.08
Signal TypeDigital
