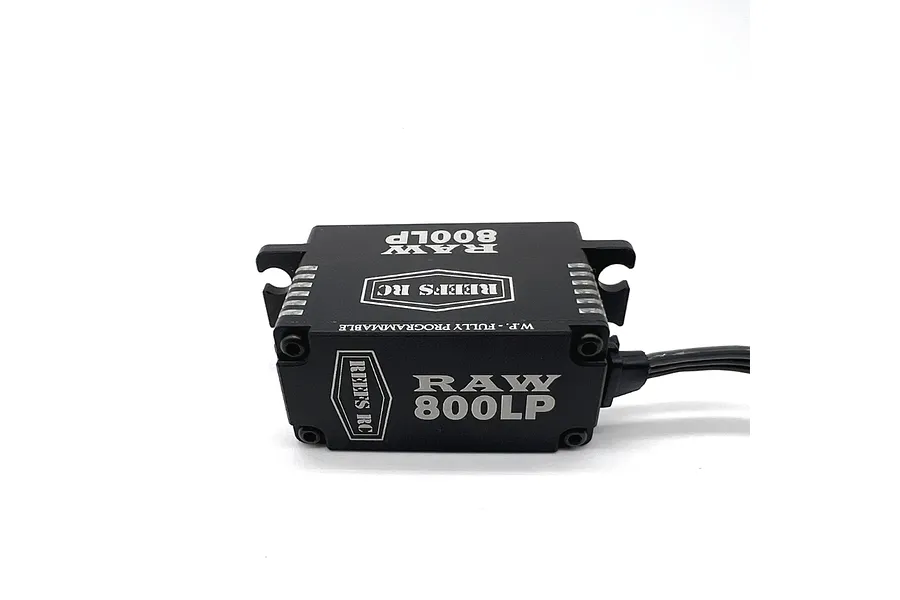

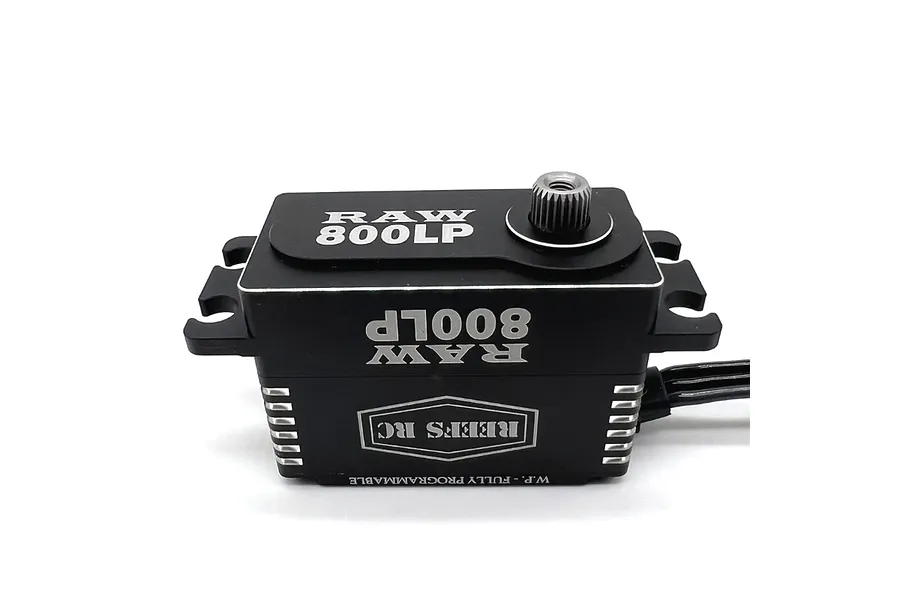

Reefs RC Aluminium RAW800LP Low Profile 58kg 8.4V Brushless Metal Gear Servo - Black

  • Brushless

Part no. REEFS146

Sold out5.0
1 review
1 / 4
1 / 4

$269.98

or 4 fortnightly payments of $67.50 with afterpay

Reefs RC RAW 800LP Black 57.6kg RC Servo: High torque, high speed, and waterproof.

  • High torque of 57.6 kg-cm
  • Submarine waterproof with magnetic angle sensor
  • Fully programmable with Reefs RC software
  • Durable steel gears and CNC aluminium casing
  • Low profile size suitable for various RC vehicles

In stock now: similar

Overview

The Reefs RC RAW 800LP Black Servo is a top-tier choice for RC enthusiasts seeking high performance and reliability in a low-profile design. This servo boasts impressive torque and speed, making it ideal for demanding applications. With a voltage range of 4.8V to 8.4V, it delivers consistent power and performance across various conditions.

Designed with durability in mind, the RAW 800LP features steel gears and a CNC aluminium casing, ensuring it can withstand rigorous use. The submarine waterproof design with 7-point seals provides excellent protection against water and dust, making it suitable for all-terrain adventures. Additionally, the magnetic angle sensor and pulse width modulation control offer precise and responsive control, enhancing the overall driving experience. Fully programmable with Reefs RC software, this servo allows for customisation to meet specific needs. Whether you're a seasoned RC hobbyist or a newcomer, the Reefs RC RAW 800LP Black is a reliable and powerful addition to your RC setup.

Note

BEC is not required but recommended for maximum performance

Reefs RC LINK required for programming (optional)

Consult the manual for waterproof standards and maintenance

Features

  • High torque and speed brushless servo
  • Strong torque @ 57.6 kg-cm (800 oz-in) and fast speed of 0.09 sec @ 8.4V
  • Submarine waterproof with magnetic angle sensor
  • Fully programmable with Reefs RC software
  • Pulse width modulation control
  • Voltage range: 4.8V - 8.4V
  • No mechanical angle limit
  • Steel gears and CNC aluminium casing
  • 2 ball bearings for smooth operation
  • 22AWG wires
  • Genuine Reefs RC product

In the box

  • 1x Reefs RC RAW 800LP Black Servo

Specifications

Torque(6.0V)45.8 kg-cm (635 oz-in)
Torque(7.4V)51.7 kg-cm (715 oz-in)
Torque(8.4V)57.6 kg-cm (800 oz-in)
Speed0.12 sec (6.0V), 0.10 sec (7.4V), 0.09 sec (8.4V)
Operating Voltage4.8V - 8.4V
Weight66g (2.3oz)
Bearing Type2 Ball Bearings
Motor TypeBrushless Motor
Gear TypeSteel Gears

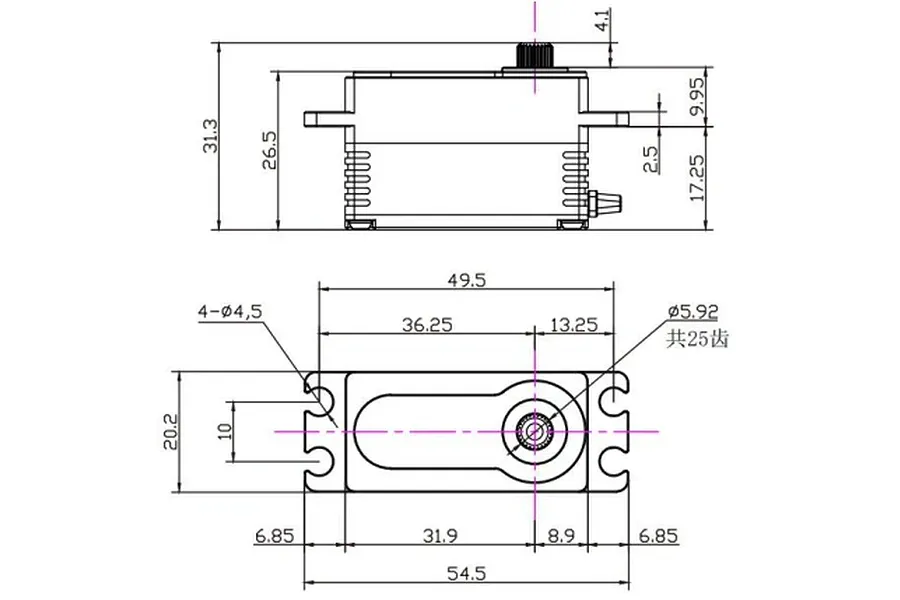

Size40.8x20.2x29.5mm (1.6x0.79x1.16")

Servo

SizeConventionally sized servo namesLow Profile
Gear MaterialSteel
Servo Spline Count25Tooth
Waterproof CasingYes
Input Voltage Range6V, 7.4V, 8.4V
Case MaterialAluminium
Drive Motor TypeBrushless
Rotational Degrees120° (Normal)
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline46
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.12
7.4V Torque kg/cm52
7.4V Sec/60 Degrees0.10
8.4V Torque kg/cm58
8.4V Sec/60 Degrees0.09
Signal TypeDigital
