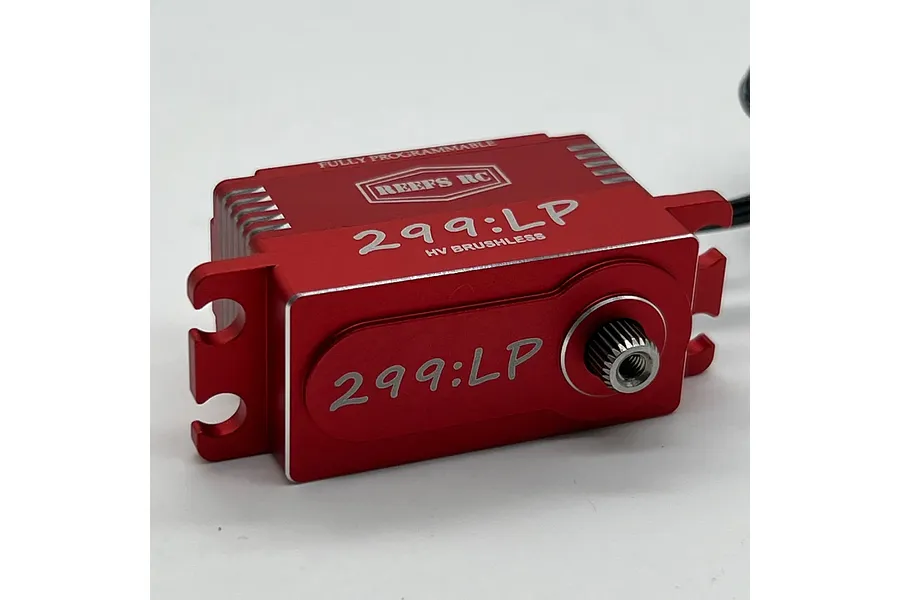

Reefs RC Aluminium 299LP Low Profile 23kg 8.4V Brushless Metal Gear Servo - Red
Reefs RC Aluminium 299LP Low Profile 23kg 8.4V Brushless Metal Gear Servo - Red
Reefs RC 299LP Racing Servo (Red Edition) 22.6kg RC Servo: High torque, high speed, and water-resistant.
High torque of 22.6 kg-cm
Water-resistant with magnetic angle sensor
Fully programmable with Reefs RC software
Durable steel gears and CNC aluminium casing
Compact size suitable for racing RC vehicles
The Reefs RC 299LP Racing Servo (Red Edition) is a top-tier choice for RC enthusiasts seeking high performance and reliability. This servo boasts impressive torque and speed, making it ideal for demanding racing applications. With a voltage range of 4.8V to 8.4V, it delivers consistent power and performance across various conditions.
Designed with durability in mind, the 299LP features steel gears and a CNC aluminium casing, ensuring it can withstand rigorous use. The water-resistant design provides excellent protection against moisture, making it suitable for various environments. Additionally, the magnetic angle sensor and pulse width modulation control offer precise and responsive control, enhancing the overall driving experience. Fully programmable with Reefs RC software, this servo allows for customisation to meet specific needs. Whether you're a seasoned RC hobbyist or a newcomer, the Reefs RC 299LP Racing Servo (Red Edition) is a reliable and powerful addition to your RC setup.
High torque and speed brushless motor
Strong torque @ 22.6 kg-cm (313 oz-in) and fast speed of 0.057 sec @ 8.4V
Water-resistant with magnetic angle sensor
Fully programmable with Reefs RC software
Pulse width modulation control
Voltage range: 4.8V - 8.4V
No mechanical angle limit
Steel gears and CNC aluminium casing
2 ball bearings for smooth operation
22AWG wires
Genuine Reefs RC product
Torque(6.0V): 20.0 kg-cm (278 oz-in)
Torque(7.4V): 21.5 kg-cm (299 oz-in)
Torque(8.4V): 22.6 kg-cm (313 oz-in)
Speed: 0.07 sec (6.0V), 0.06 sec (7.4V), 0.057 sec (8.4V)
Operating Voltage: 4.8V - 8.4V
Weight: 57.2g (2.0oz)
Bearing Type: 2 Ball Bearings
Motor Type: Brushless Motor
Gear Type: Steel Gears
Size: 40.8x20.2x26.5mm (1.6x0.79x1.0")
1x Reefs RC 299LP Racing Servo (Red Edition)
BEC is not required but recommended for maximum performance
Reefs RC LINK required for programming
Consult the manual for water-resistant standards and maintenance
-
SizeConventionally sized servo names
- Low Profile
-
Gear Material
- Steel
-
Waterproof Casing
- Splash Proof
-
Servo Spline Count
- 25Tooth
-
Input Voltage Range
- 6VV, 7.4VV, 8.4VV
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 20
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- .07
-
7.4V Torque kg/cm
- 22
-
7.4V Sec/60 Degrees
- .06
-
8.4V Torque kg/cm
- 23
-
8.4V Sec/60 Degrees
- .057
-
Signal Type
- Digital
-
Drive Motor Type
- Brushless
-
Case Material
- Aluminium
-
Rotational Degrees
- 120° (Normal)
