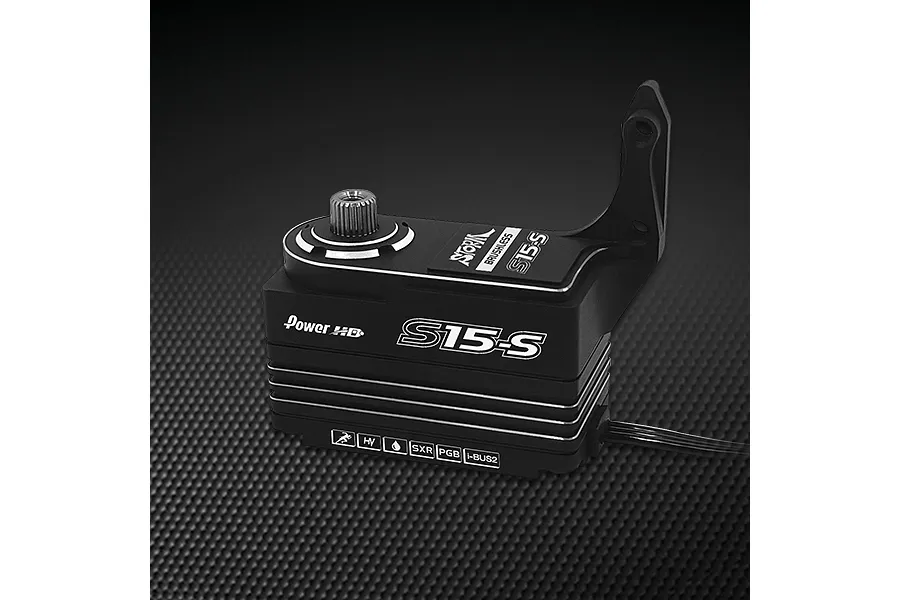

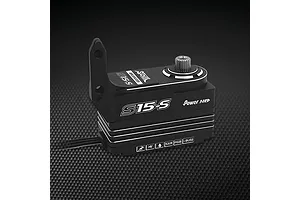

Power HD Aluminium S15-S Low Profile 16.5kg 8.4V HV Brushless Metal Geared Servo - Black
Videos
Power HD Aluminium S15-S Low Profile 16.5kg 8.4V HV Brushless Metal Geared Servo - Black
1 out of 5 stars
2 out of 5 stars
3 out of 5 stars
4 out of 5 stars
5 out of 5 stars
$8.62
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
The Power HD S15-S is a high-voltage, low-profile brushless servo designed for precision and power. With its impressive torque, lightning-fast speed, and durable metal gears, it's perfect for demanding applications like 1/10 scale crawlers, drift cars, and other high-performance RC vehicles.
- High voltage (HV) compatibility for increased performance
- Powerful torque output (16.5 kg-cm at 8.4V)
- Ultra-fast brushless motor for quick response
- Durable titanium and steel gears
- Low-profile design for tight spaces
- Genuine Power HD product
- Torque(6.0V): 11.5 kg-cm (159.7 oz/in)
- Torque(7.4V): 15.0 kg-cm (208.3 oz/in)
- Torque(8.4V): 16.5 kg-cm (229.1 oz/in)
- Speed: 0.072 sec (6.0V) / 0.060 sec (7.4V) / 0.050 sec (8.4V)
- Weight: 56.5 g (2.0 oz)
- Operating Voltage: 6.0V - 8.4V
- Bearing Type: Dual Ball Bearing
- Motor Type: Brushless
- Operating Temperature: -20â~60â
- Working frequency:1520Ξs / 333hz
In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.
- Total Height (A) = N/A
- Body Width (B) = N/A
- Below Mount (C) = N/A
- Above Mount (D) = N/A
- Total Length (E) = N/A
- Total Width (F) = N/A
| Description | QTY |
|---|---|
| Power HD Aluminium S15-S Low Profile 16.5kg 8.4V HV Brushless Metal Geared Servo - Black | 1 |
-
Total Length
- mm
-
Total Width
- mm
-
Drive Motor Type
- Brushless
-
Top to Under Mount
- mm
-
8.4V Sec/60 Degrees
- 0.050
-
Input Voltage Range
- 7.4VV, 6VV, 8.4VV
-
Rotational Degrees
- 120° (Normal)
-
8.4V Torque kg/cm
- 16.5
-
Signal Type
- Digital
-
Case Material
- Aluminium
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 11.5
-
Gear Material
- Titanium & Steel
-
Waterproof Casing
- Yes
-
Servo Spline Count
- 25Tooth
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.072
-
7.4V Torque kg/cm
- 15
-
Total Height
- mm
-
7.4V Sec/60 Degrees
- 0.060
-
Body Length
- mm
-
Bottom to Under Mount
- mm
-
SizeConventionally sized servo names
- Low Profile
