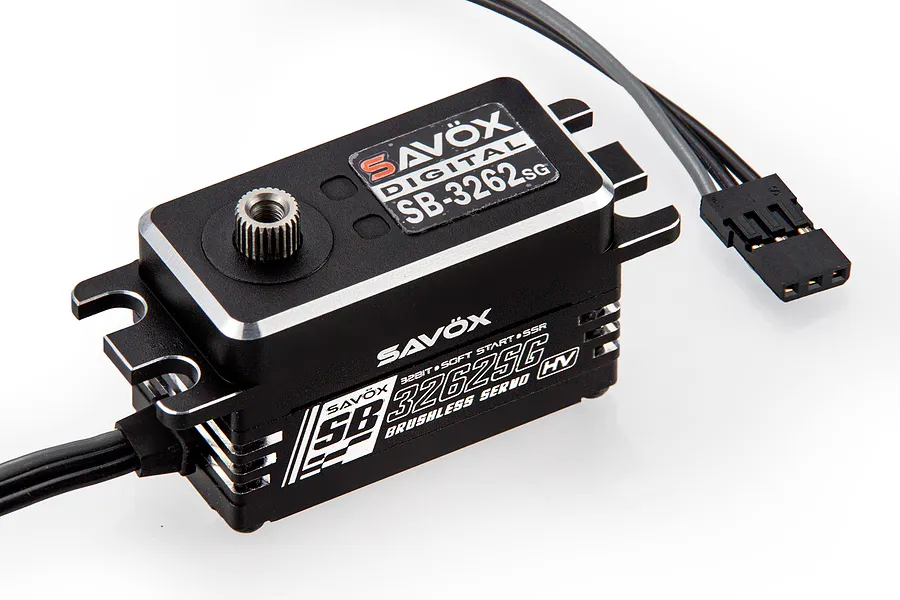

Savox Aluminium SB-3262SG Low Profile 35kg 8.4V Brushless Metal Geared Servo
Savox Aluminium SB-3262SG Low Profile 35kg 8.4V Brushless Metal Geared Servo
Brand:
Savox
|
MPN: SB-3262SG
$207.92
or 4 fortnightly payments of $51.98 with
Add to Wishlist
Ordered
1 week ago
The date we ordered this product from our supplier.
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Related Products
Description
No description
Specifications
Servo
-
SizeConventionally sized servo names
- Low Profile
-
Gear Material
- Steel
-
Servo Spline Count
- 25Tooth
-
Waterproof Casing
- Yes
-
Input Voltage Range
- 8.4V, 7.4V
-
Case Material
- Aluminium
-
Height (A)
- 29.55mm
-
Body Length (B)
- 40.8mm
-
Bottom to Under Mount (C)
- 16.6mm
-
Top to Under Mount (D)
- 8.95mm
-
Length (E)
- 54mm
-
Width (F)
- 20.2mm
-
Drive Motor Type
- Brushless
-
Rotational Degrees
- 120° (Normal)
-
7.4V Torque kg/cm
- 28
-
7.4V Sec/60 Degrees
- 0.08
-
8.4V Torque kg/cm
- 35
-
8.4V Sec/60 Degrees
- 0.065
-
Signal Type
- Digital
