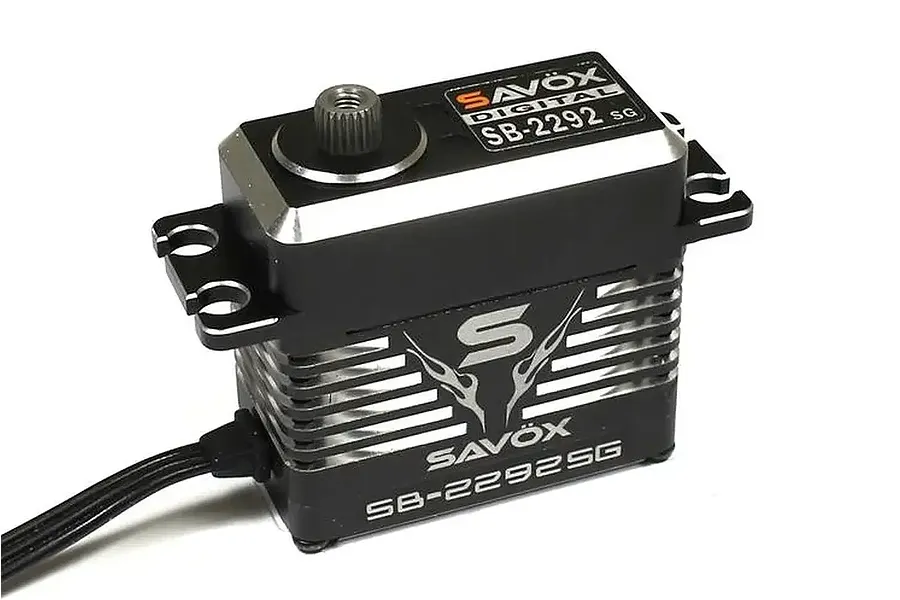

Savox SB-2292SG Black Edition Standard 45kg 8.4V Brushless Metal Geared Servo
Savox SB-2292SG Black Edition Standard 45kg 8.4V Brushless Metal Geared Servo
 Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
The powerhouse "Monster" performance series from Savox, meticulously crafted with a rugged all-aluminium casing and equipped with innovative brushless motor and controller technology, unleashes a remarkable 35% power boost over its predecessors.
Features
Leading edge digital servo technology
Strong 3-Pole Brushed motor
Accurate and fast response
Ball bearings provide fluid and unrestricted movement
Precision Steel gears are durable and long lasting
Specifications
Spline size: 25T Spline
Servo Technology: Digital High Voltage
Operating Voltage (V): 6V - 8.4V
Motor Type: Brushless Motor
Weight: 81 g
Gear Type: Steel Gears
Servo Case: Anodised Black & Silver Aluminium Case
Ball Bearings: 3 Precision Ball Bearings
Torque @ 6v: 22.0kg/305.5oz-in
Torque @ 7.4v: 31.0kg/430.5oz-in
Torque @ 8.4v: 45.0kg/624.9-in
Speed @ 6v: 0.085 sec/60 deg
Speed @ 7.4v: 0.07sec/60 deg
Speed @ 8.4v: 0.055sec/60 deg
Connector type: JR/Futaba
Servo Specifications
Total Height (A) = 42.7mm
Body Width (B) = 40.3mm
Below Mount (C) = 25.9mm
Above Mount (D) = 11.7mm
Total Length (E) = 54mm
Total Width (F) = 20.2mm
How To: Install a Servo
In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.
-
Height (A)
- 38.7mm
-
Body Length (B)
- 40.3mm
-
Bottom to Under Mount (C)
- 25.9mm
-
Top to Under Mount (D)
- 11.7mm
-
Length (E)
- 54mm
-
Width (F)
- 20.2mm
-
SizeConventionally sized servo names
- Standard
-
Gear Material
- Metal
-
Waterproof Casing
- No
-
Servo Spline Count
- 25Tooth
-
Input Voltage Range
- 6V, 7.4V, 8.4V
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 22
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.085
-
7.4V Torque kg/cm
- 31
-
7.4V Sec/60 Degrees
- 0.07
-
8.4V Torque kg/cm
- 45
-
8.4V Sec/60 Degrees
- 0.055
-
Signal Type
- Digital
-
Drive Motor Type
- Brushless
-
Case Material
- Aluminium
-
Rotational Degrees
- 120° (Normal)
