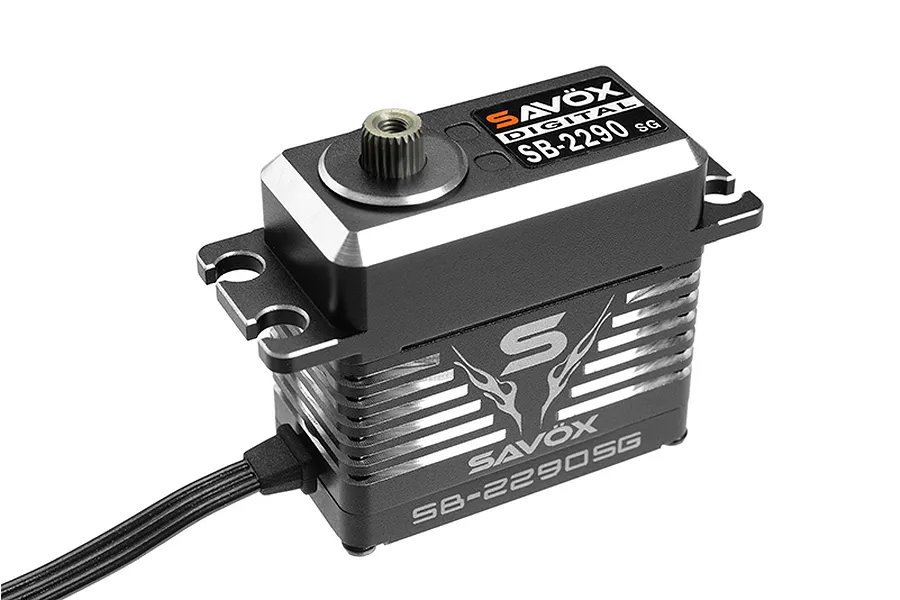

Savox Black Edition Monster Torque Standard 70kg 8.4V HV Brushless Metal Geared Servo
- Brushless
Part no. SB-2290SG
Savox Black Edition Monster Torque servo — brushless HV, up to 65kg torque at 8.4V, full aluminum case, 35% power boost over previous generation.
- Monster performance series with full aluminum case
- 65kg torque at 8.4V
- Brushless motor and controller technology — 35% power boost over previous generation
- 3 precision ball bearings
- Unique steel gears
3+ in stock · Order in 7h 50m, dispatched today
Checking delivery dates…
Free 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·
Overview
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.
Features
- Full aluminum case
- 3 precision ball bearings
- Unique steel gears
Specifications
| Torque @ 6V | 40.0kg / 555.5oz-in |
|---|---|
| Torque @ 7.4V | 50.0kg / 694.4oz-in |
| Torque @ 8.4V | 65.0kg / 902.7oz-in |
| Speed @ 6V | 0.16 sec/60° |
| Speed @ 7.4V | 0.13 sec/60° |
| Speed @ 8.4V | 0.11 sec/60° |
| Dimensions (L x W x H) | 40.3 x 20.2 x 38.7mm |
| Weight | 81g |
| Specification | Servo mounting dimensions (SAV-SB-2290SG): |
Servo
| Size | Standard |
|---|---|
| Gear Material | Metal |
| Servo Spline Count | 25Tooth |
| Waterproof Casing | No |
| Input Voltage Range | 6V, 7.4V, 8.4V |
| Case Material | Metal |
| Drive Motor Type | Brushless |
| Rotational Degrees | 120° (Normal) |
| 6V Torque kg/cm | 45 |
| 6V Sec/60 Degrees | 0.16 |
| 7.4V Torque kg/cm | 55 |
| 7.4V Sec/60 Degrees | 0.13 |
| 8.4V Torque kg/cm | 70 |
| 8.4V Sec/60 Degrees | 0.11 |
| Signal Type | Digital |
Dimensions

| Height (A) | 38.7mm |
|---|---|
| Body Length (B) | 40.3mm |
| Bottom to Under Mount (C) | 25.9mm |
| Top to Under Mount (D) | 11.7mm |
| Length (E) | 54mm |
| Width (F) | 20.2mm |
