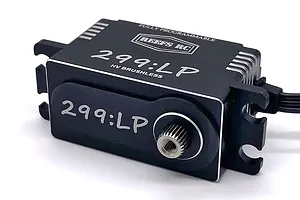

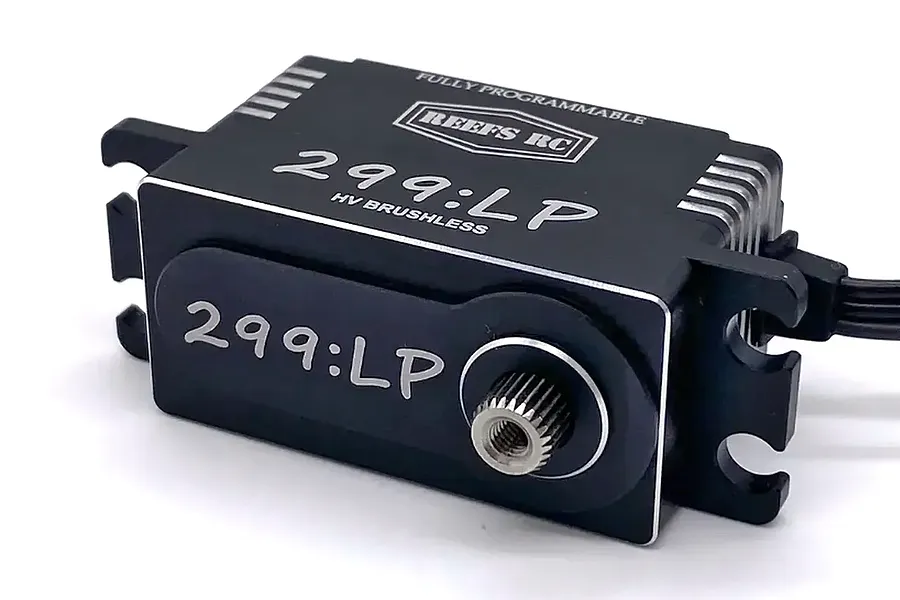

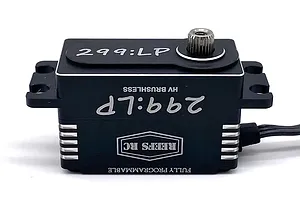

Reefs RC Aluminium 299 Low Profile 23kg 8.4V Brushless Metal Gear Servo - Black

  • Brushless

Part no. REEFS24

Sold outNo reviews yet
1 / 3
1 / 3

$199.99

or 4 fortnightly payments of $50.00 with afterpay or PayPal, or zip

In stock now: similar

Ready to send today if you order before 1pm.

Specifications

Servo

Servo
SizeConventionally sized servo namesLow Profile
Gear MaterialAluminium
Servo Spline Count25Tooth
Waterproof CasingSplash Proof
Input Voltage Range6V, 7.4V, 8.4V
Case MaterialAluminium

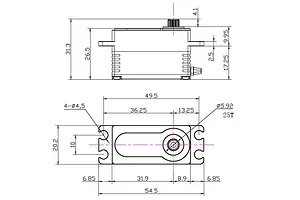

Height (A)31.37mm
Body Length (B)40.87mm
Bottom to Under Mount (C)17.02mm
Top to Under Mount (D)14mm
Length (E)54.50mm
Width (F)20.22mm
Drive Motor TypeBrushless
Rotational Degrees120° (Normal)
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline20
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.07
7.4V Torque kg/cm22
7.4V Sec/60 Degrees0.06
8.4V Torque kg/cm12
8.4V Sec/60 Degrees0.057
Signal TypeDigital
