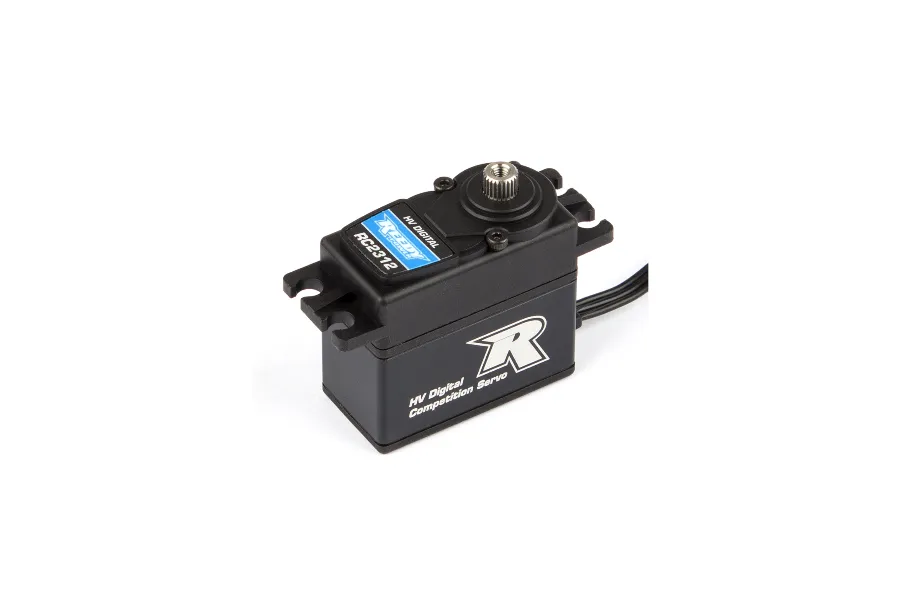

Reedy Power Black Aluminium RC2312 Standard 23.2kg 7.4v Coreless Metal Geared HV Servo

Videos

Reedy Power Black Aluminium RC2312 Standard 23.2kg 7.4v Coreless Metal Geared HV Servo

Brand: Reedy Power | SKU: 27116

2 in stock

write a review

$227.36

Pay later with

Loading compatibility information...

Recommended Products

Power HD Servo Glitch Buster Receiver Capacitor

2 reviews

$7.26

Power HD Black Aluminium 25T Servo Horn

8 reviews

$13.39

sold out

Description

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Reedy's HV Digital Competition Crawler Servos are trail-tested and engineered for use in competition-level trail trucks and crawlers. Powerful motors create incredible torque without sacrificing speed, while an advanced microprocessor provides precision steering control.

An all-metal gear set is designed for strength and durability, while an integrated aluminium mid-case reduces operating temperatures for fade-free operation. The soft-centering function centres the servo slowly on power-up for scale appearance and steering system damage prevention. High voltage compatibility allows users to take advantage of external BEC units.

Thanks to its impressive list of features, Reedy's HV Digital Competition Crawler Servo is the logical choice for crawler and trail truck enthusiasts of all skill levels.

Features

Water and dust resistant
Soft-centering function
Aluminium heat sink case
Powerful coreless motor
Ultra-precise metal gears
Dual ball bearings
High voltage compatible

How To: Install a Servo

In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.

Specifications

Input (V): 6.0V-7.4V
Speed (sec/60deg), 6.0V: 0.15
Speed (sec/60deg), 7.4V: 0.12
Torque (kg-cm), 6.0V: 19.3
Torque (kg-cm), 7.4V: 23.2
Dimensions: 39.5 x 20.0 x 38.6
Weight (g): 63.5
Spline: 25

Included items

Description	QTY
RC2312 Standard Coreless 23.2 7.4v HV Metal Geared Servo	1

Specifications

Servo

Servo Spline Count: 25Tooth
Rotational Degrees: 120° (Normal)
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.15
Signal Type: Digital
Case Material: Aluminium
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 23.2
Gear Material: Metal
Waterproof Casing: Splash Proof
Drive Motor Type: Coreless
Size Conventionally sized servo names: Standard
