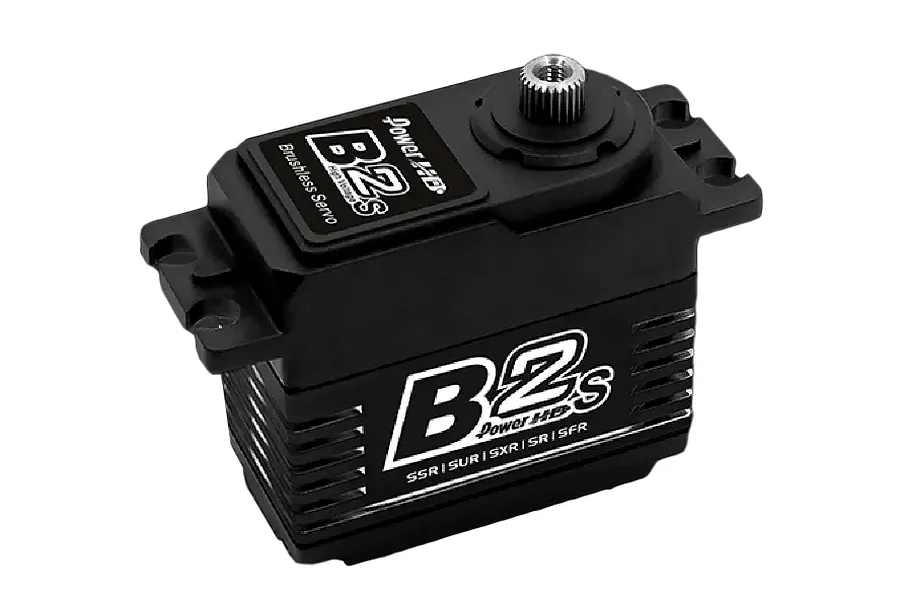

Power HD Black Aluminium B2S Standard 50kg 8.4V HV Waterproof Brushless Metal Geared Servo
Power HD Black Aluminium B2S Standard 50kg 8.4V HV Waterproof Brushless Metal Geared Servo
Brand:
Power HD
|
SKU: B2S
$148.02
Pay later with
Recommended Products
Description
No description
Specifications
Servo
-
Height (A)
- 38.3mm
-
Body Length (B)
- 41mm
-
Bottom to Under Mount (C)
- 28mm
-
Top to Under Mount (D)
- 10.3mm
-
Length (E)
- 55.2mm
-
Width (F)
- 20.5mm
-
SizeConventionally sized servo names
- Standard
-
Gear Material
- Titanium & Steel
-
Waterproof Casing
- Splash Proof
-
Servo Spline Count
- 25Tooth
-
Input Voltage Range
- 6V, 7.4V, 8.4V
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 30
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.15
-
7.4V Torque kg/cm
- 45
-
7.4V Sec/60 Degrees
- 0.12
-
8.4V Torque kg/cm
- 50
-
8.4V Sec/60 Degrees
- 0.10
-
Signal Type
- Digital
-
Drive Motor Type
- Brushless
-
Case Material
- Aluminium
-
Rotational Degrees
- 120° (Normal)
