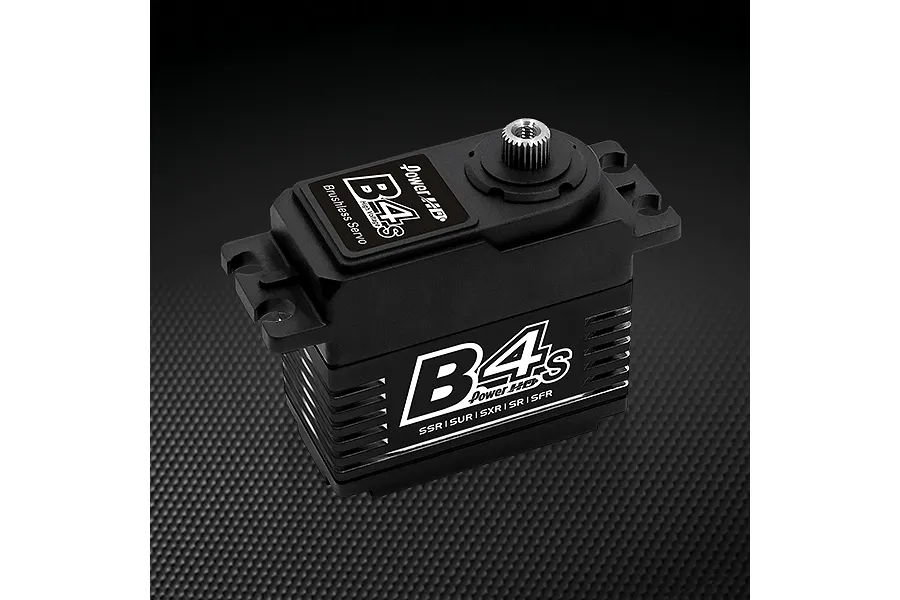

Power HD Black Aluminium B4S Standard 32kg 8.4V HV Waterproof Brushless Metal Geared Servo
Power HD Black Aluminium B4S Standard 32kg 8.4V HV Waterproof Brushless Metal Geared Servo
Brand:
Power HD
|
MPN: B4S
$144.99
or 4 fortnightly payments of $36.25 with
Add to Wishlist
ETA
in 2 weeks
The date we expect this product to arrive.
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Recommended Products
Related Products
Team Powers Black Aluminium DS1550SR V3 SRS Low Profile 13kg 7.4V Brushless Metal Geared Servo
0 reviews
$209.95
Alternatives
Power HD Black Aluminium B2S Standard 50kg 8.4V HV Waterproof Brushless Metal Geared Servo
0 reviews
$149.99
in 2 weeks
Power HD Black Aluminium B5S Standard 20kg 8.4V HV Waterproof Brushless Metal Geared Servo
0 reviews
$144.99
in 2 weeks
Power HD Black Aluminium B3S Standard 40kg 8.4V HV Waterproof Brushless Metal Geared Servo
0 reviews
$149.99
in 2 weeks
Power HD Black Aluminium GTS-6 Standard 60kg 8.4V HV Waterproof Brushless Metal Geared Servo
0 reviews
$209.99
in 2 weeks
Description
No description
Specifications
Servo
-
SizeConventionally sized servo names
- Standard
-
Gear Material
- Titanium & Steel
-
Servo Spline Count
- 25Tooth
-
Waterproof Casing
- Splash Proof
-
Input Voltage Range
- 6V, 7.4V, 8.4V
-
Case Material
- Aluminium
-
Height (A)
- 38.3mm
-
Body Length (B)
- 41mm
-
Bottom to Under Mount (C)
- 28mm
-
Top to Under Mount (D)
- 10.3mm
-
Length (E)
- 55.2mm
-
Width (F)
- 20.5mm
-
Drive Motor Type
- Brushless
-
Rotational Degrees
- 120° (Normal)
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 21
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.085
-
7.4V Torque kg/cm
- 25
-
7.4V Sec/60 Degrees
- 0.075
-
8.4V Torque kg/cm
- 32
-
8.4V Sec/60 Degrees
- 0.065
-
Signal Type
- Digital
