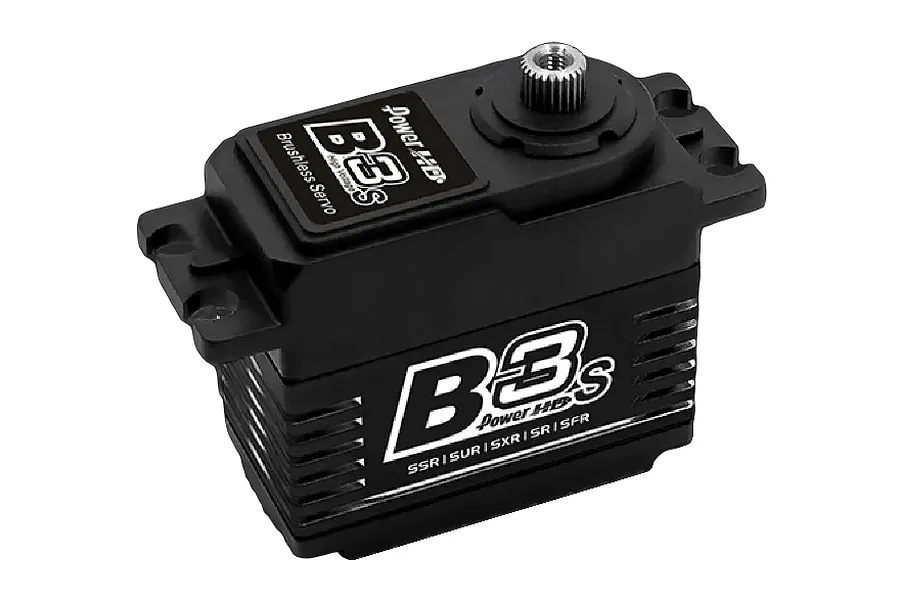

Power HD Black Aluminium B3S Standard 40kg 8.4V HV Waterproof Brushless Metal Geared Servo
Power HD Black Aluminium B3S Standard 40kg 8.4V HV Waterproof Brushless Metal Geared Servo
Brand:
Power HD
|
SKU: B3S
$141.32
Pay later with
Recommended Products
Power HD Black Aluminium 25T Servo Horn
1 out of 5 stars
2 out of 5 stars
3 out of 5 stars
4 out of 5 stars
5 out of 5 stars
3 reviews
$8.62
Description
No description
Specifications
Servo
-
Total Length
- 55.2mm
-
Total Width
- 20.5mm
-
Drive Motor Type
- Brushless
-
Top to Under Mount
- 10.3mm
-
8.4V Sec/60 Degrees
- 0.08
-
Input Voltage Range
- 7.4VV, 6VV, 8.4VV
-
Rotational Degrees
- 120° (Normal)
-
8.4V Torque kg/cm
- 40
-
Signal Type
- Digital
-
Case Material
- Aluminium
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 30
-

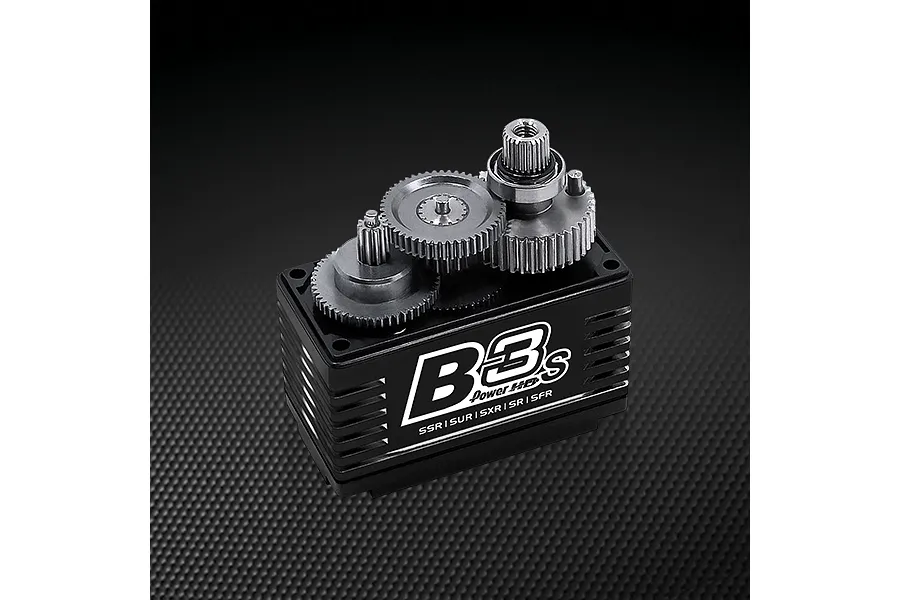

Gear Material
- Aluminium & Steel
-
Waterproof Casing
- Splash Proof
-
Servo Spline Count
- 25Tooth
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.11
-
7.4V Torque kg/cm
- 35
-
Total Height
- 38.3mm
-
7.4V Sec/60 Degrees
- 0.095
-
Body Length
- 41mm
-
Bottom to Under Mount
- 28mm
-
SizeConventionally sized servo names
- Standard
