Kyosho Servo Perfex KS-5031-09MW Metal Gears w/ Hardware
Kyosho Servo Perfex KS-5031-09MW Metal Gears w/ Hardware
Genuine Kyosho Perfex KS-5031-09MW metal gear servo with 9kg-cm torque. Replacement for MP9 ReadySet and Mad Force Kruiser 2.0.
- Replacement steering servo for the Kyosho MP9 ReadySet and Mad Force Kruiser 2.0
- Metal gear construction with aluminium case
- 9 kg-cm torque at 6V
- Suitable for 1/10 scale on/off road and drifting
- Genuine Kyosho Part

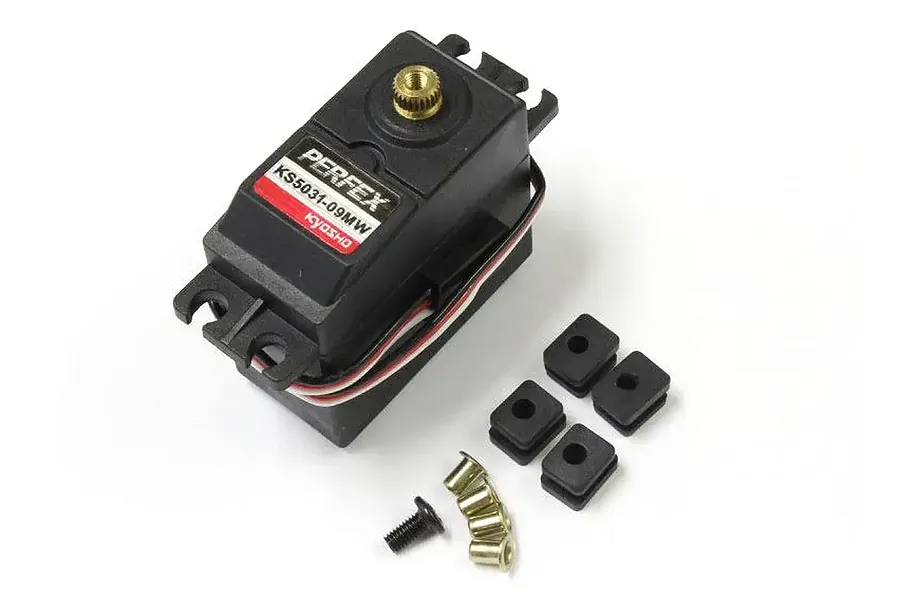

This is the Kyosho Perfex KS-5031-09MW Metal Gear Servo. This is the replacement steering servo for the Kyosho MP9 ReadySet and Mad Force Kruiser 2.0, but is a good low cost alternative for any application that could benefit from a metal gear servo with 9kg-cm of torque.
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
- Genuine Kyosho Part
- Suitable for RC cars 1/10 scale on/off road and drifting
- Upper/middle/bottom: Aluminium Case
- Rubber grommets
- Horn mounting hardware
-
Torque (6V)
- 9 kg-cm
-
Speed
- 0.15 sec (6V)
-
Operating Voltage
- 4.8 ~ 6.0V DC
-
Weight
- 57.5 g
-
Gear Type
- Metal
-
Total Height (A)
- 38mm
-
Body Width (B)
- 20.1mm
-
Below Mount (C)
- 27mm
-
Above Mount (D)
- 10mm
-
Total Length (E)
- 40.8mm
-
Total Width (F)
- 20.1mm
-
SizeConventionally sized servo names
- Standard
-
Gear Material
- Metal
-
Servo Spline Count
- 25Tooth
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 9
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.15
-
Case Material
- Aluminium
-
Rotational Degrees
- 120° (Normal)
