Traxxas High-Torque Metal Gear Waterproof Brushless Red Servo
$189.30
Login to My Garage to check compatibility.
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

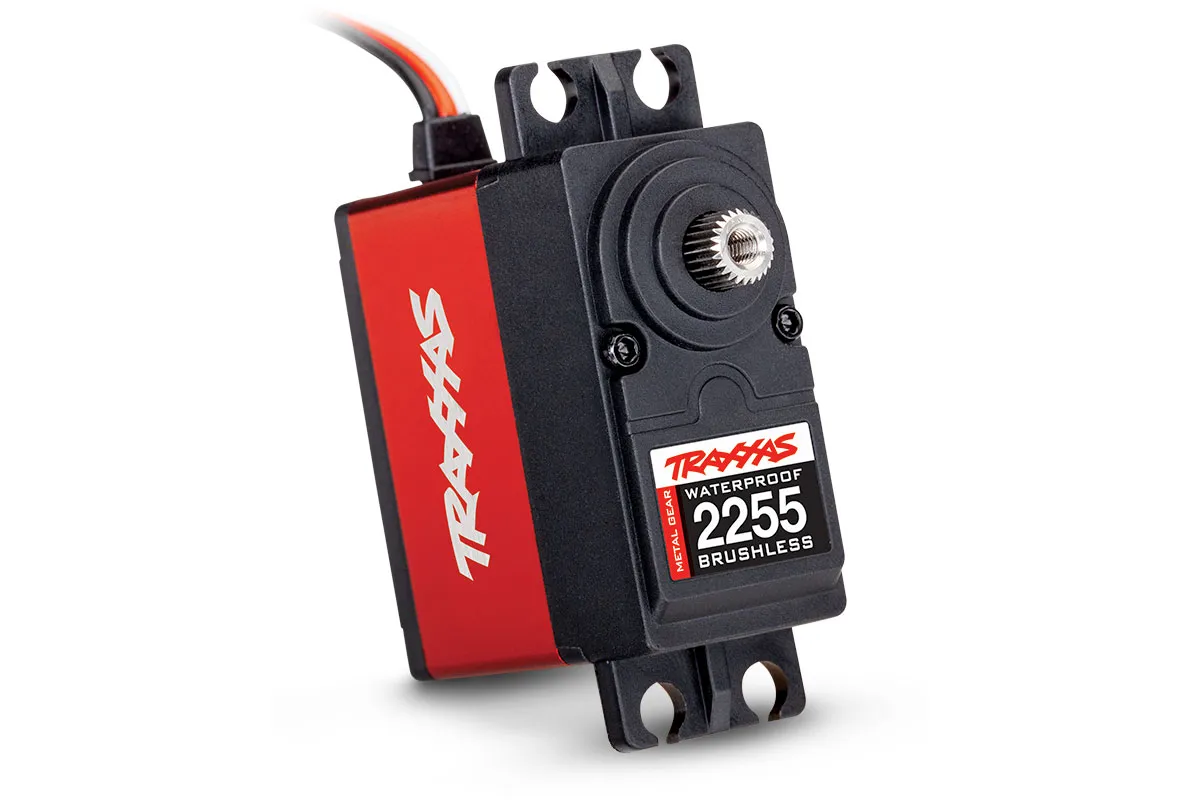

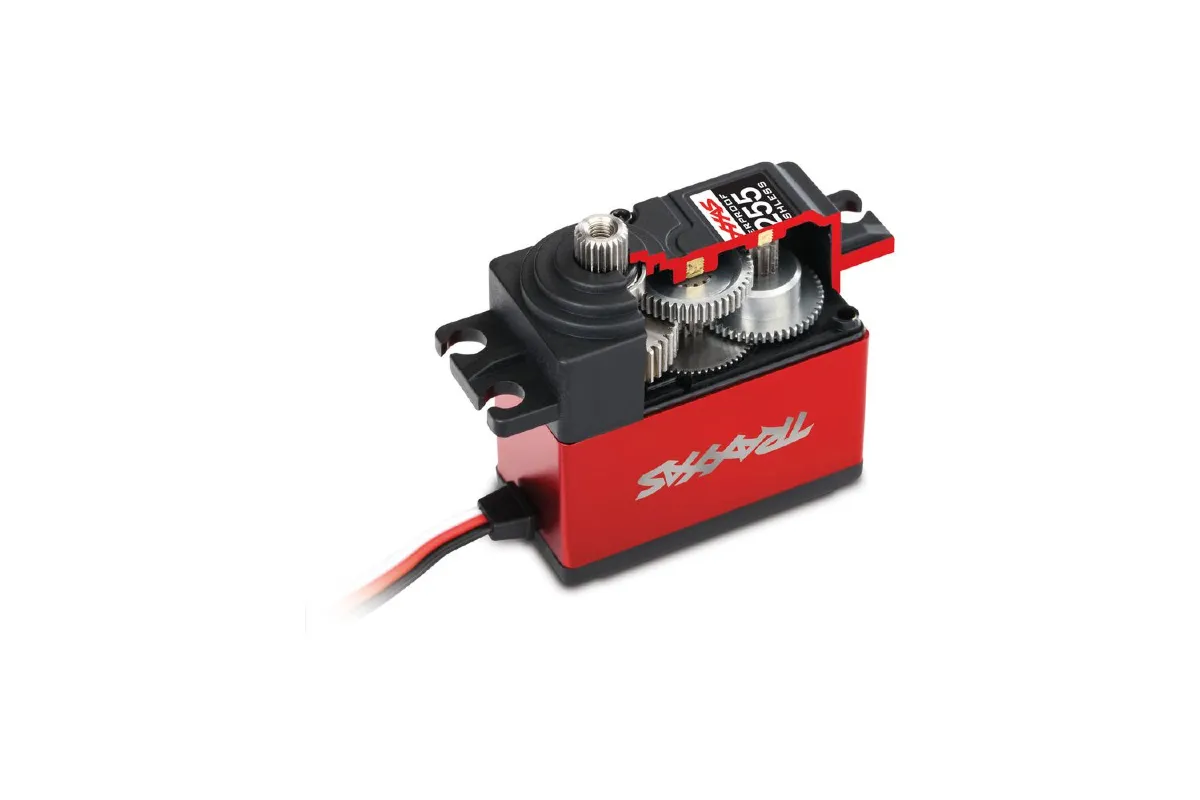

The Traxxas High-Torque 400 Red servo combines maximum steering authority with a long list of high-performance features. The servo utilizes full metal gears, dual ball bearings, and an aluminum center section for added heat dissipation. A cutting edge brushless motor provides 400 ounce-inches of torque for extreme applications.* The High-Torque 400 servo is fully waterproof, not just “water resistant” and drops into most 1/10 Traxxas vehicles for that perfect factory fit.
- Total Height (A) = 45mm
- Body Width (B) = 40.1mm
- Below Mount (C) = 27.4mm
- Above Mount (D) = 18.2mm
- Total Length (E) = 54.7mm
- Total Width (F) = 20.1mm
| Servo | |
|---|---|
| Servo Size: | Standard |
| Drive Motor Type: | Brushless |
| Gear Material: | Metal |
| Case Material: | Metal|Plastic |
| Waterproof Casing: | Yes |
| Rotational Degrees: | 120o (Normal) |
| Servo Spline Count: | 25 |
| Signal Type: | |
| 6.0V Torque kg/cm: | 11.33 |
| 6.0V Sec/60 Degrees: | 0.15 |
| "A" Measurement: | 45 |
| "B" Measurement: | 40.1 |
| "C" Measurement: | 27.4 |
| "D" Measurement: | 18.2 |
| "E" Measurement: | 54.7 |
| "F" Measurement: | 20.1 |
