Savox Black Edition 9kg 6V Plus Low Profile Metal Geared Servo
Videos

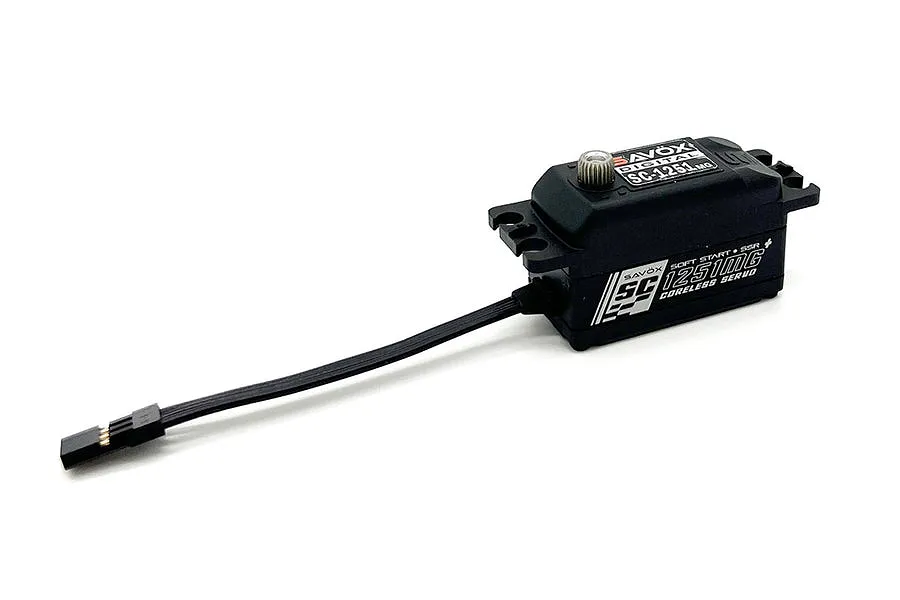

Savox Black Edition 9kg 6V Plus Low Profile Metal Geared Servo
Brand:
Savox
|
MPN: SC-1251MG-PLUS-BE
$119.50
or 4 fortnightly payments of $29.88 with
Add to Wishlist
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Related Products
Description
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
The SC-1251MG is a high speed, low profile servo which combines leading edge technology with metal gear train to make an ideal option when space or weight is a concern.
'Plus' series servos feature Soft Start and Sanwa SSR compatibility.
Features
- Metal gear train ensures durability under harsh situations
- Ideal for 1/10 on road vehicles
- Aluminium case provides cooler operating temperatures
Included Items
- 1x Aluminium 1251MG Plus Black Edition Low Profile 9kg 6v Metal Geared Servo
Videos
Specifications
-
Torque (6.0V)
- 9 kg-cm (125 oz/in)
-
Speed
- 0.09sec (6V)
-
Operating Voltage
- 6V
-
Weight
- 44.5g (1.56 oz)
-
Bearing Type
- 2 x Ball
-
Gear Type
- Metal
-
Operating Temperature
- -10° - 50°C (14° - 122°F)
-
Size
- 40.8 x 20.2 x 25.4 mm (1.60 x 0.79 x 1 in)
-
Total Height (A)
- 29.4mm
-
Body Width (B)
- 40.8mm
-
Below Mount (C)
- 16.45mm
-
Above Mount (D)
- 8.95mm
-
Total Length (E)
- 54.5mm
-
Total Width (F)
- 20.2mm
Servo
-
Height (A)
- 29.4mm
-
Body Length (B)
- 40.8mm
-
Bottom to Under Mount (C)
- 16.45mm
-
Top to Under Mount (D)
- 8.95mm
-
Length (E)
- 54.5mm
-
Width (F)
- 20.2mm
-
SizeConventionally sized servo names
- Low Profile
-
Gear Material
- Metal
-
Waterproof Casing
- No
-
Servo Spline Count
- 25Tooth
-
Input Voltage Range
- 4.8V, 6V
-
4.8V Torque kg/cm
- 7
-
4.8V Sec/60 Degrees
- 0.10
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 9
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.09
-
Signal Type
- Digital
-
Drive Motor Type
- Coreless
-
Case Material
- Aluminium
-
Rotational Degrees
- 120° (Normal)
