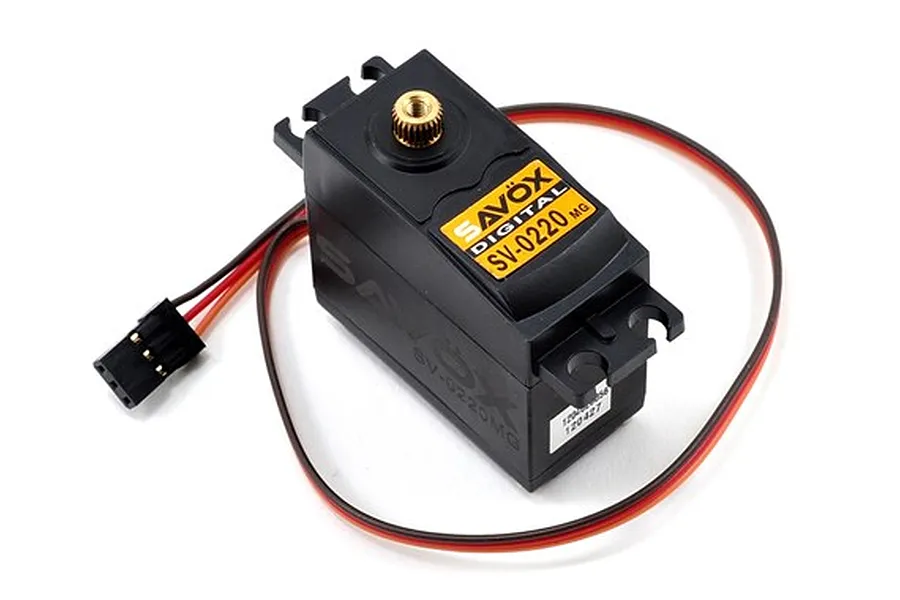

Savox 6.5kg 7.4V Standard Plus Metal Geared Servo

Savox 6.5kg 7.4V Standard Plus Metal Geared Servo image 87665

Videos

Savox 6.5kg 7.4V Standard Plus Metal Geared Servo

Brand: Savox | SKU: SV-0220MG-PLUS

1 in stock

write a review

$63.79

Pay later with

Want more than 1?

and we'll notify you when the stock is here.

Description

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

The Savox SV-0220MG is a value-packed digital servo that boasts a robust metal gear train and the capacity to operate in high voltage environments. It is part of the Savox "Plus" series and has been improved in its performance with Soft Start for refined control and Sanwa SSR compatibility for extended compatibility.

Features

The metal gearing provides incredible strength and longevity
Durable plastic casing keeps weight down without sacrificing strength

Plus series includes Soft start and Sanwa SSR compatibility
Can be used in high voltage situations adding to its versatility

Specifications

Spline size: 25T Spline
Servo Technology: Digital
Operating Voltage: 6V - 7.4V
Motor Type: Brushed Motor
Weight: 59g
Gear Type: Metal Gears
Refresh Rate: 240 Hz

Servo Case: Plastic
Torque @ 6V: 6.5 kg-cm (90.3 oz-in)
Torque @ 7.4V: 8 kg-cm (111.1 oz-in)
Speed @ 6V : 0.16 sec/60 deg
Speed @ 7.4V: 0.13 sec/60 deg
Connector type: JR/Futaba

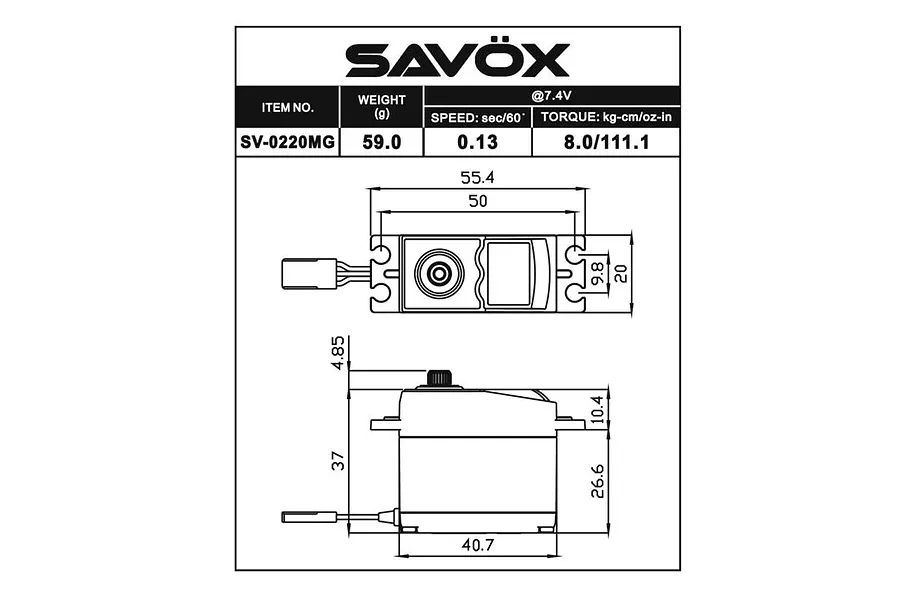

Servo Specifications

Total Height (A) = 41.8mm
Body Width (B) = 40.7mm
Below Mount (C) = 26.6mm
Above Mount (D) = 10.4mm
Total Length (E) = 55.4mm
Total Width (F) = 20mm

How To: Install a Servo

In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.

Included items

Description	QTY
Savox 6.5kg 7.4V Standard Plus Metal Geared Servo	1

Specifications

Servo

Servo Spline Count: 25Tooth
Total Length: 55.4mm
Total Width: 20mm
Bottom to Under Mount: 26.6mm
Top to Under Mount: 10.4mm
Total Height: 41.85mm
Body Length: 40.7mm
Rotational Degrees: 120° (Normal)
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.16
Signal Type: Digital
Case Material: Metal
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 6.5
Gear Material: Metal
Waterproof Casing: No
Drive Motor Type: Brushed
Size Conventionally sized servo names: Standard
